Pan-Tilt 5X Zoom Mini Dome Camera Real-time 5MP
BC-IP305BRW-MSCN

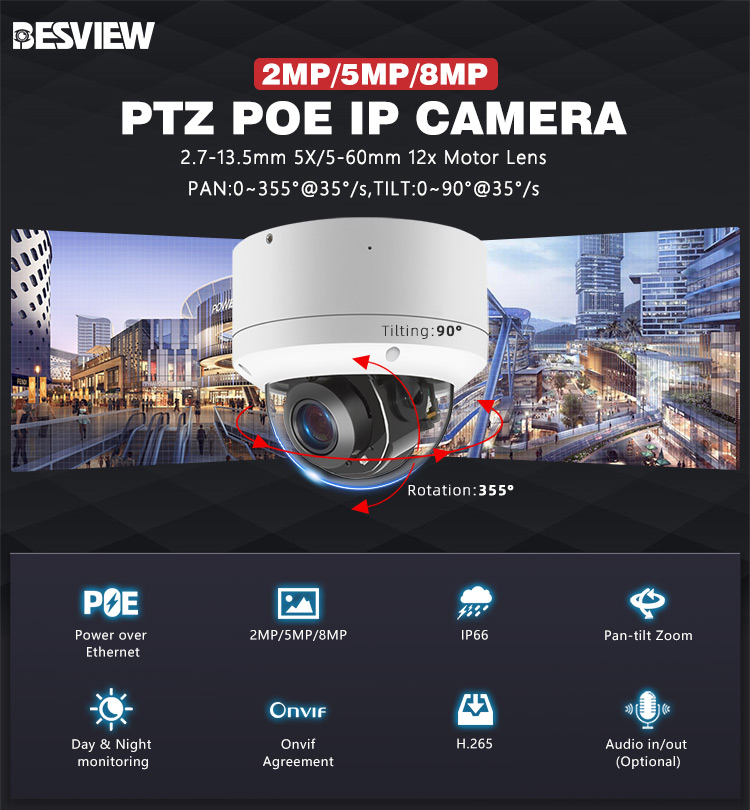

PTZ stands for pan/tilt movement in all directions (left and right/up and down) and lens zoom and zoom control. Usually this word is mentioned, and it can be understood as PTZ control in a popular way. Within the scope of the scene monitored by the camera, when a moving target appears, the user can control the camera to rotate up, down, left and right to track and lock the target. Some models can also provide the human tracking function, that is, people who appear in the target area are locked and automatically tracked until the target disappears. The PTZ tracking module makes up for the shortcomings of the narrow view of the fixed camera monitoring, and is a necessary function for a complete security monitoring system.
Quantity:
| Image Sensor: | 1/2.8"Sony335 5MP Progressive Scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter Time: | 1/25 s to 1/100,000 s |
| Lens: | 5X 2.7-13.5mm Motor Lens |
| Day&Night: | IR cut filter with auto switch |
| Image Enhancement: | BLC/3D DNR/D-WDR |
| Motion Detection | Support |
| Privacy Protection | Support(4 Self-customized Areas) |

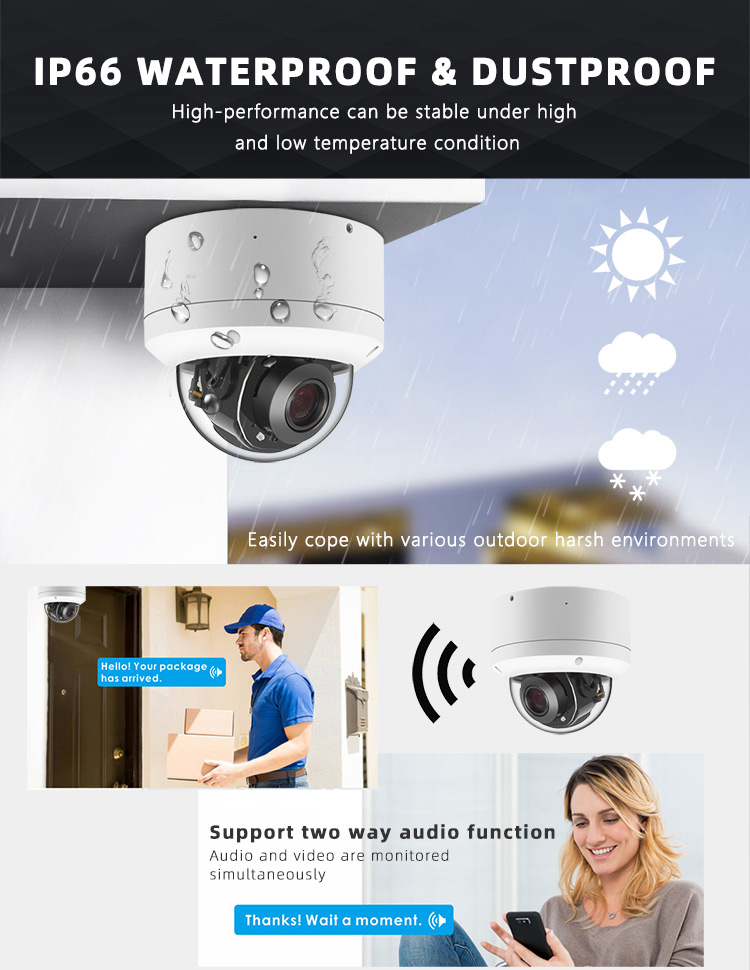

| Water-Proof: | IP66 |
| Illumination for Infrared Switching: | 0.5~3Lux |
| Infrared Wavelength: | 850nm |
| Mimimum Illumination: | 0 Lux(IR ON) |
| IR Range: | 2pcs LEDs//35m IR |
| Compression Standard | |

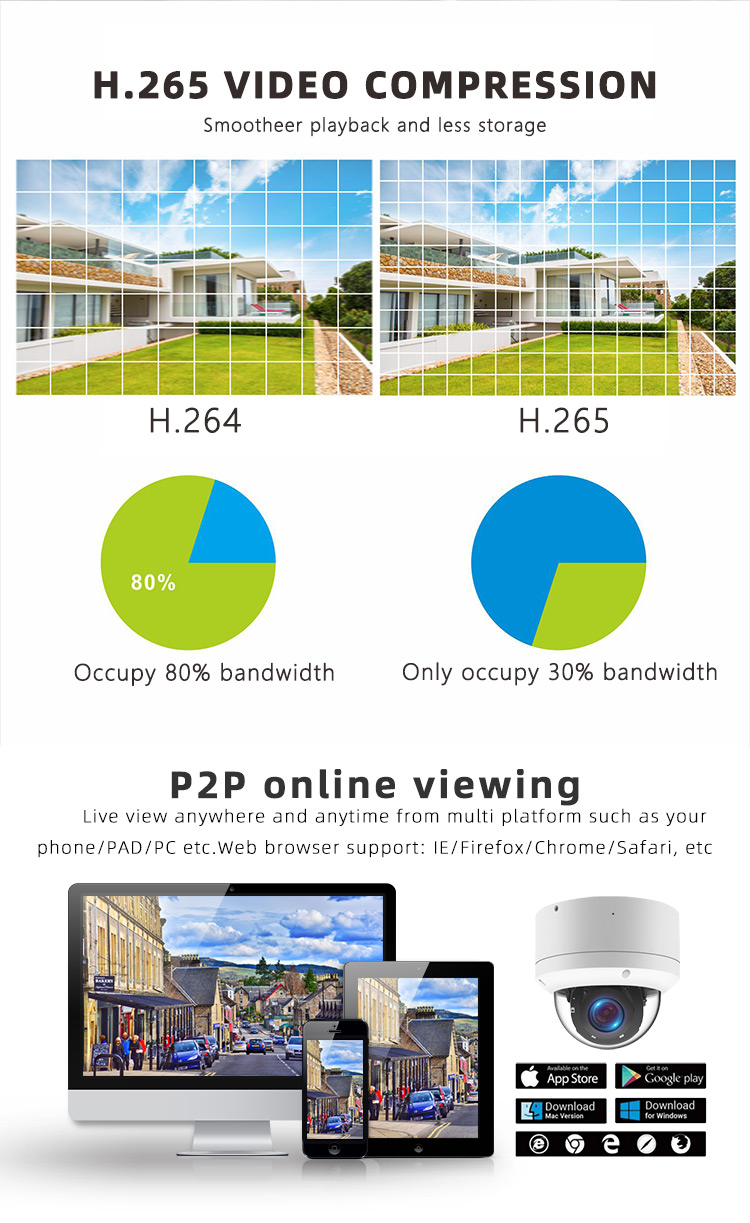

| Video Compression: | H.265/H.264/MJPEG |
| Video Bit Rate: | 32Kbps~12Mbps(CBR/VBR Selectable) |
| Audio Compression: | G711U/G711A |
| Dual Streams: | Yes |
| Triple Streams: | Yes |
| Image | |
| Max. Image Resolution: | 2592×1944(5MP)@30fps |
| Frame Rate: | 50/60Hz:2592*1944@25fps,(2560*1920/2304*1296/2048*1536/1080P/960P/720P/D1)@25fps |
| Sub Stream: | 50Hz/60Hz: (720*480/VGA/640*360/480*360/CIF)@25fps |
| Third Stream(Mobile Stream): | 50/60Hz: (1080P/720P/CIF)@5fps |

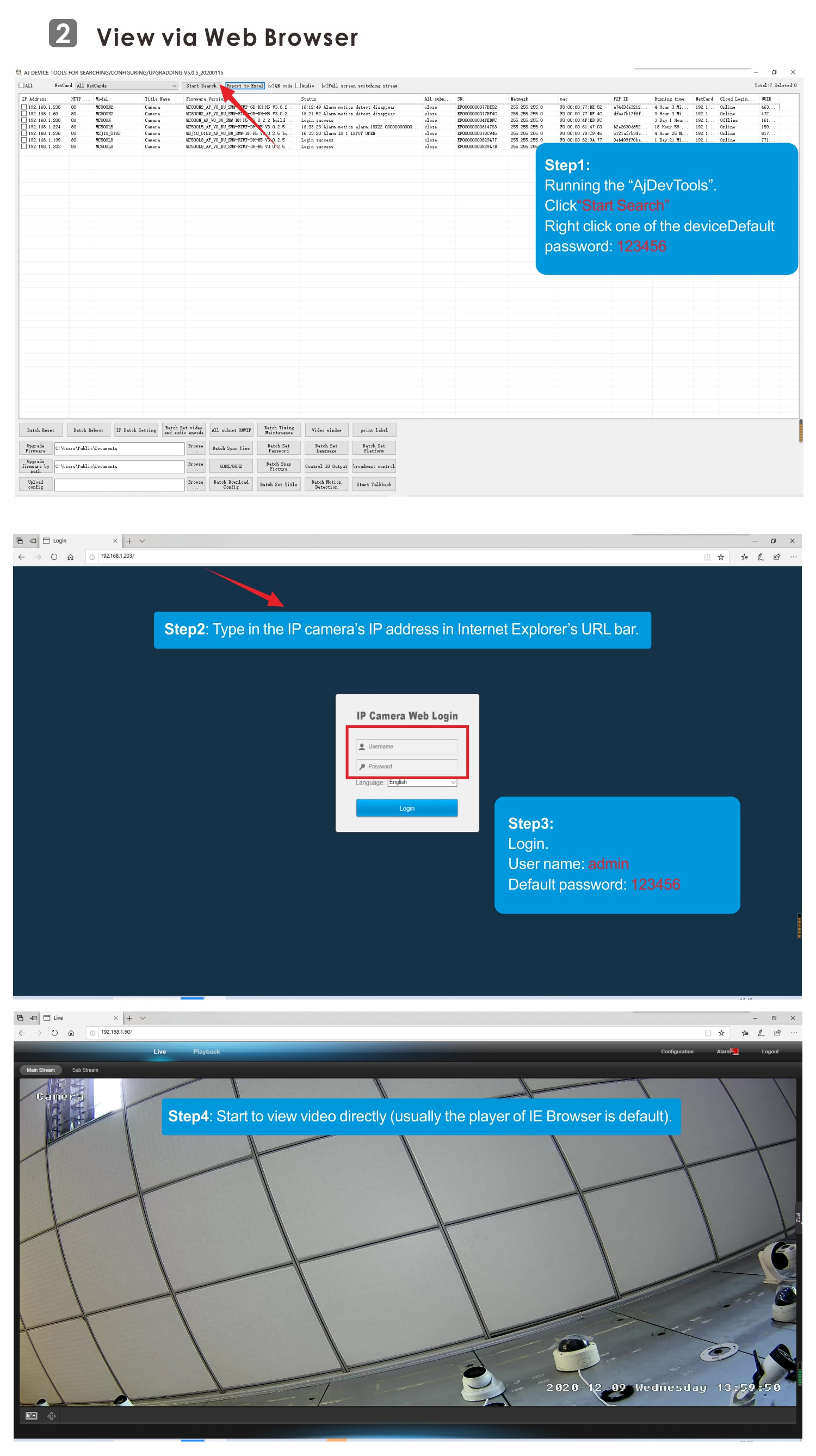

| Image Settings: | 3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App |
| Day/Night Switch: | Auto(Passive Mode)/Day/Night/Auto(Active Mode)/Time |
| Network | |
| Network Protocols: | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE,RTMP, DDNS, IP Search(Support Danale IP camera, DVR, NVS and etc.) |
| General Function: | Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark |

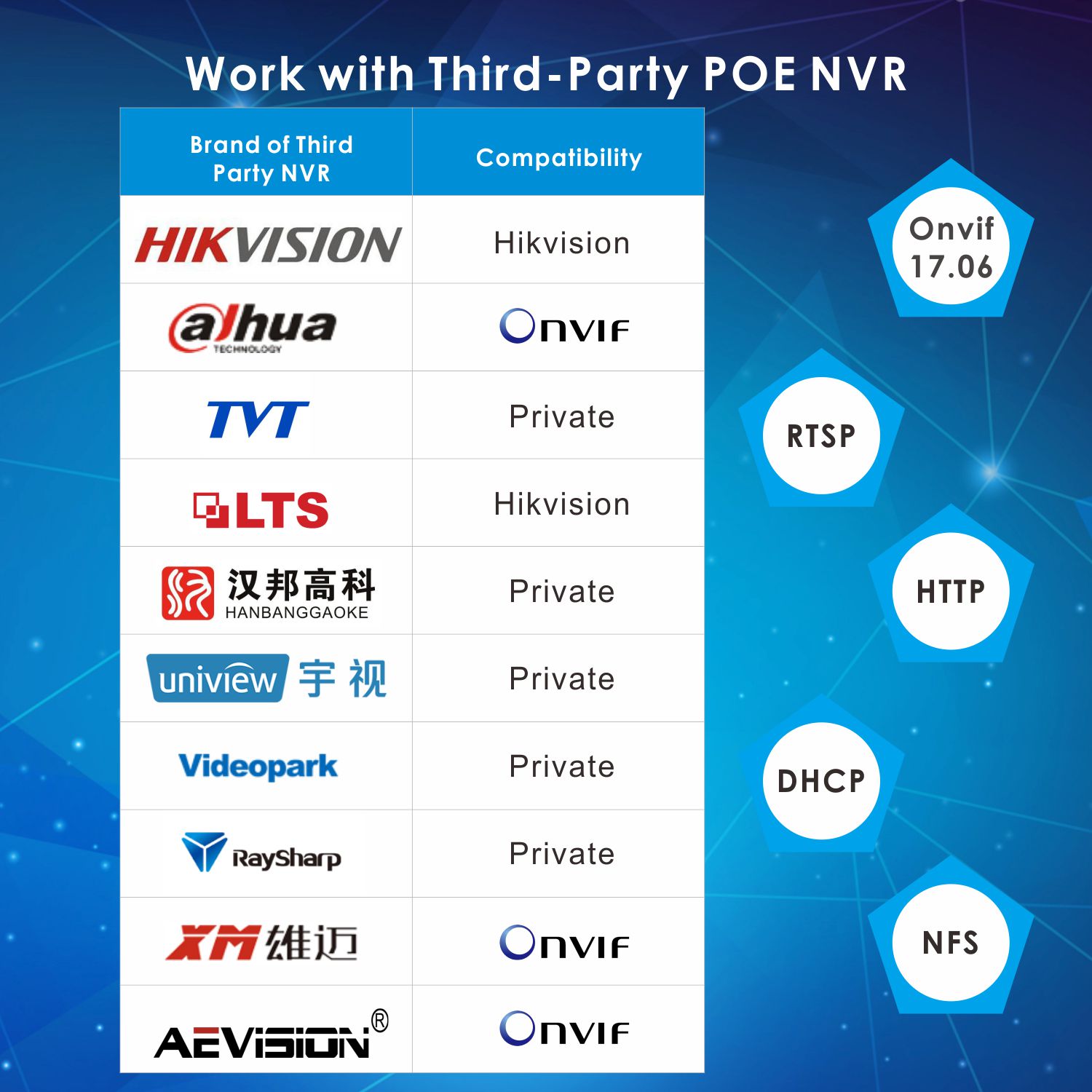

| System Compatibility: | ONVIF(17.06 ) profile S/Danale(P2P) |
| On-line Viewing | Max. Support 6 Users Simultaneously |
| Interface | |

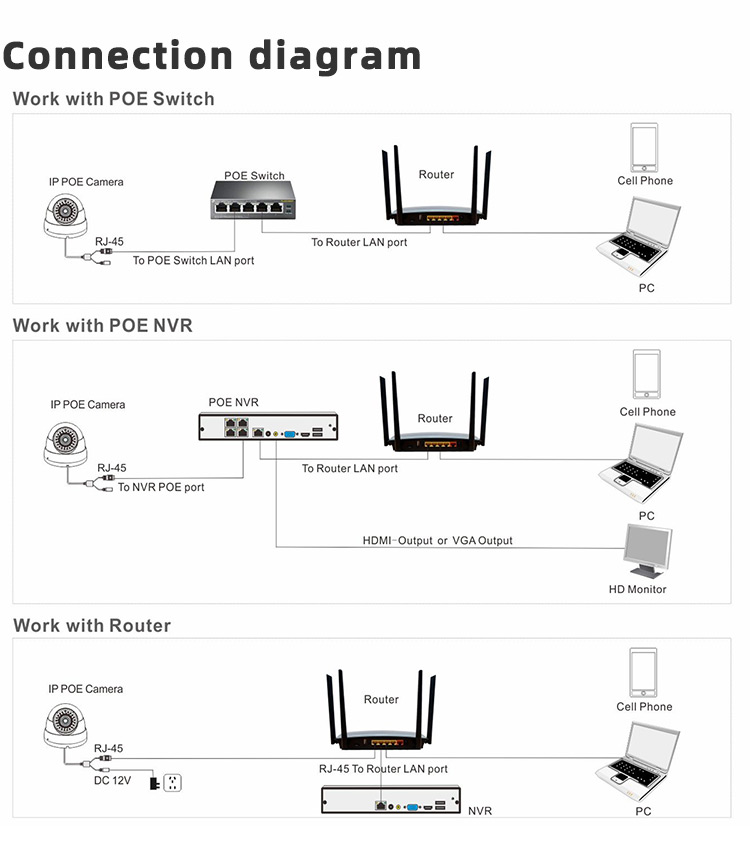

| Communication Interface: | 1 RJ45 10M / 100M Ethernet Interface |
| RCA Audio Interface: | RCA Audio input/output Interface (Optional) |
| DC Power Plug: | DC Power Female Interface |
| General | |
| Operating Conditions: | -10 °C ~ 60 °C |
| Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 V DC ± 10%/PoE(Optional) |
| Power Consumption: | 12 VDC ± 10%, Max Power Comsumption Less than 10W (When the infrared lamps turn on) |

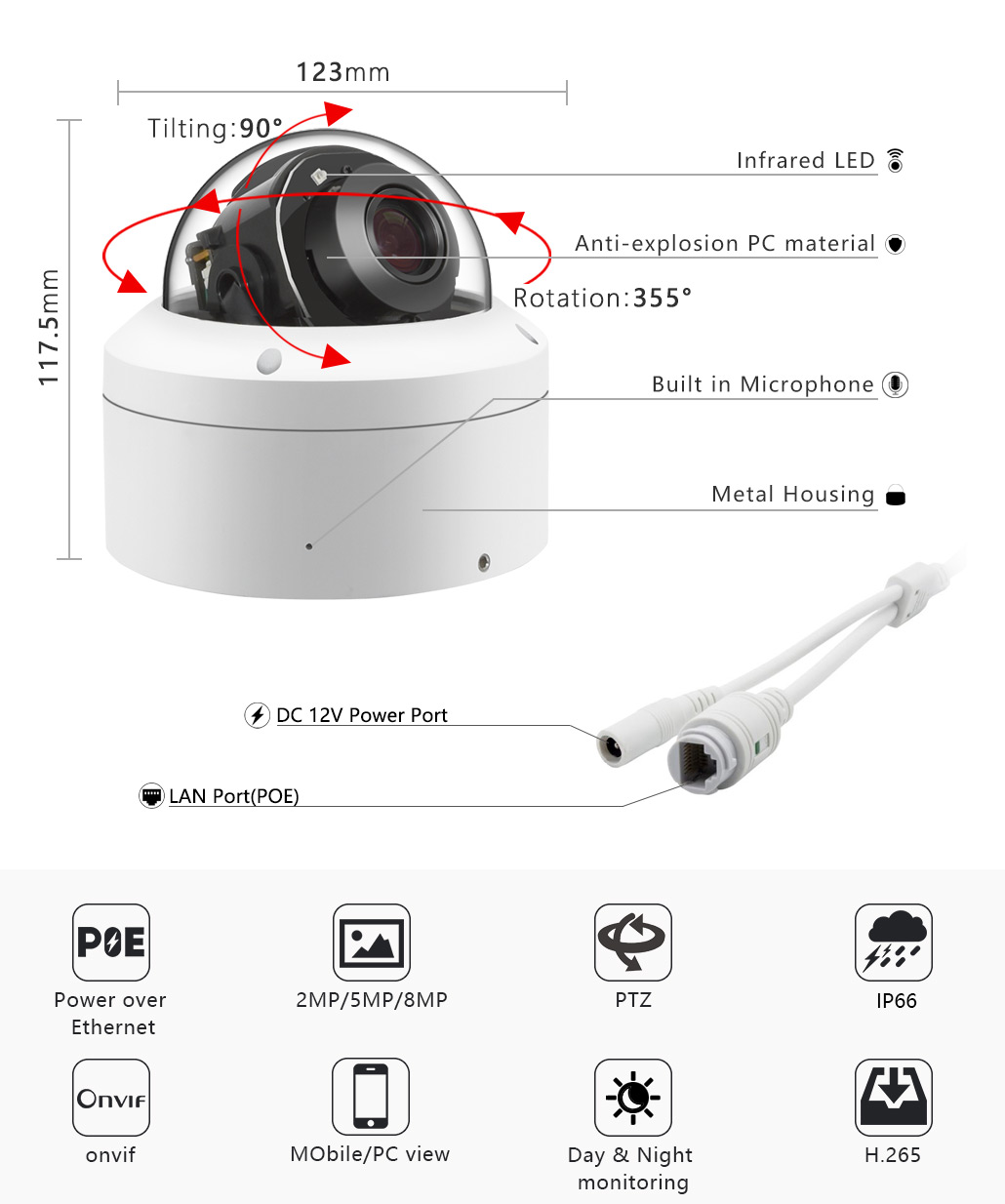

| Dimensions(D×H) | 4.4inch×4.7inch |
| Weight: | 0.87KG |
