5MP Real-Time IR Bullet Camera IP Mini Bullet Outdoor CCTV System
BC-IB6153SW-MSCN
• H.265/H.264 5MP IP/Network IR Small Bullet Camera
• Up to 5 megapixel high resolution
• Max. 2592×1944(5MP)@30fps(50HZ/60HZ)
• Support RTSP&Onvif(2.4+Media2 Version)

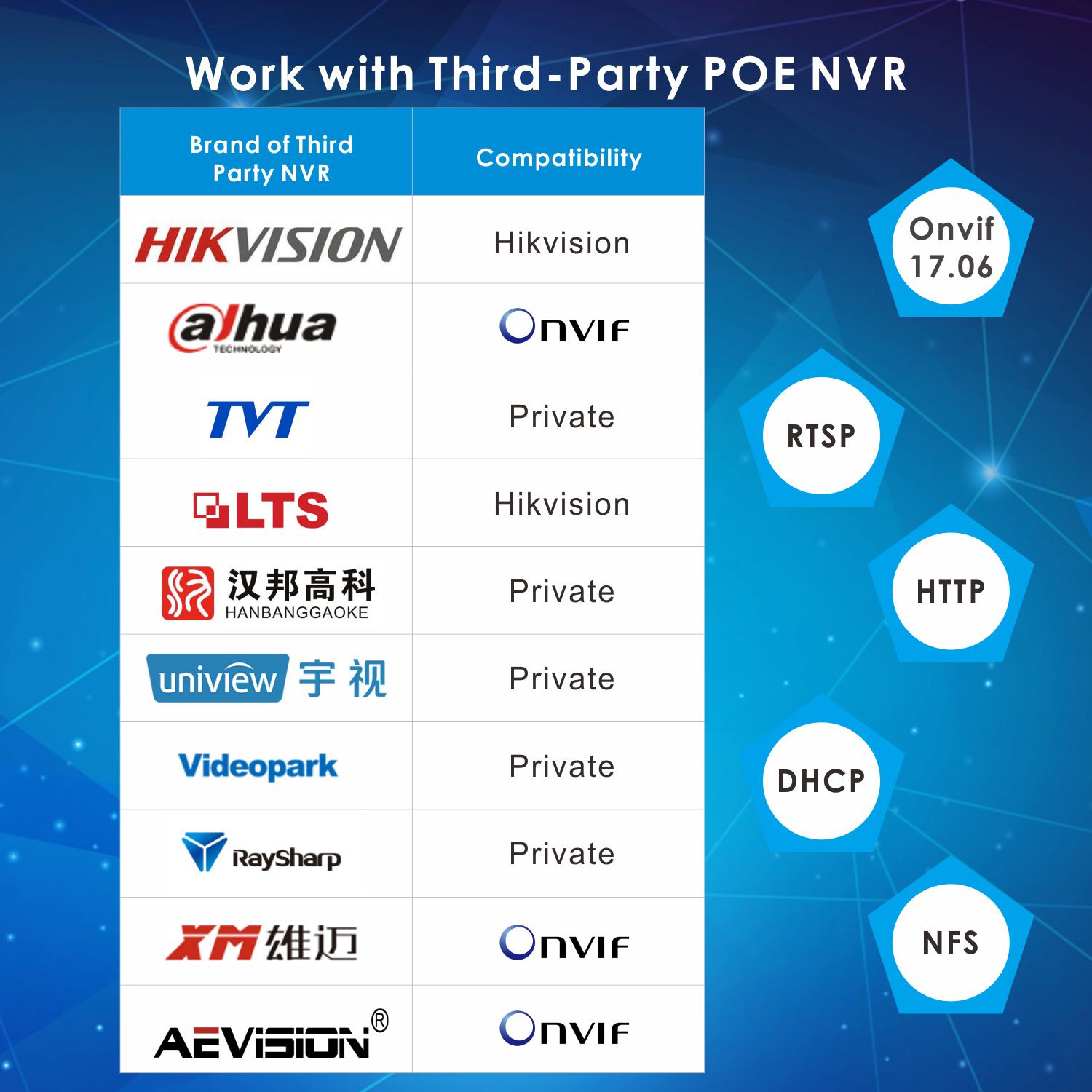

Compatible with many third-party NVRs and CMS

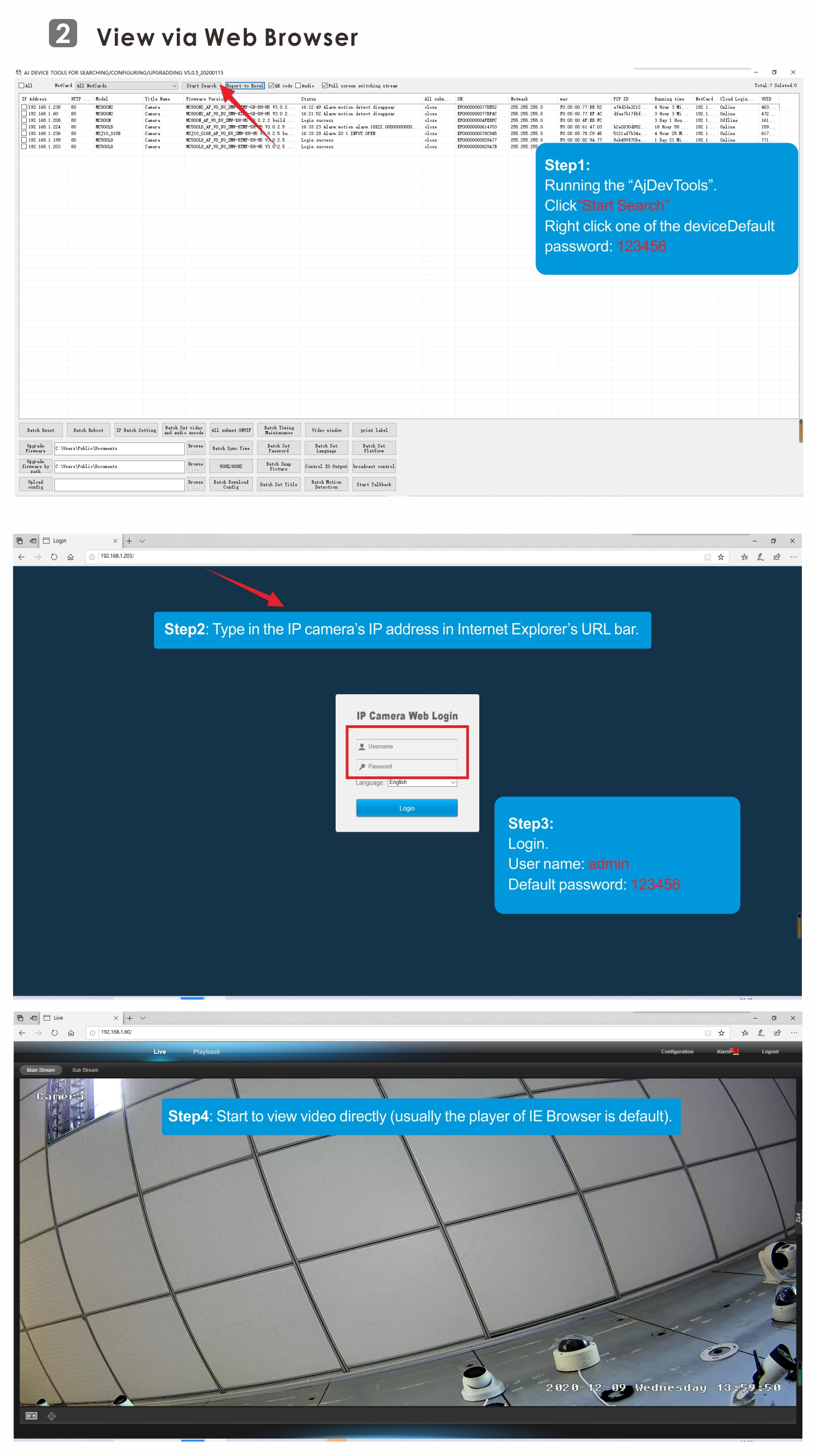

• Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc.
• P2P Cloud service

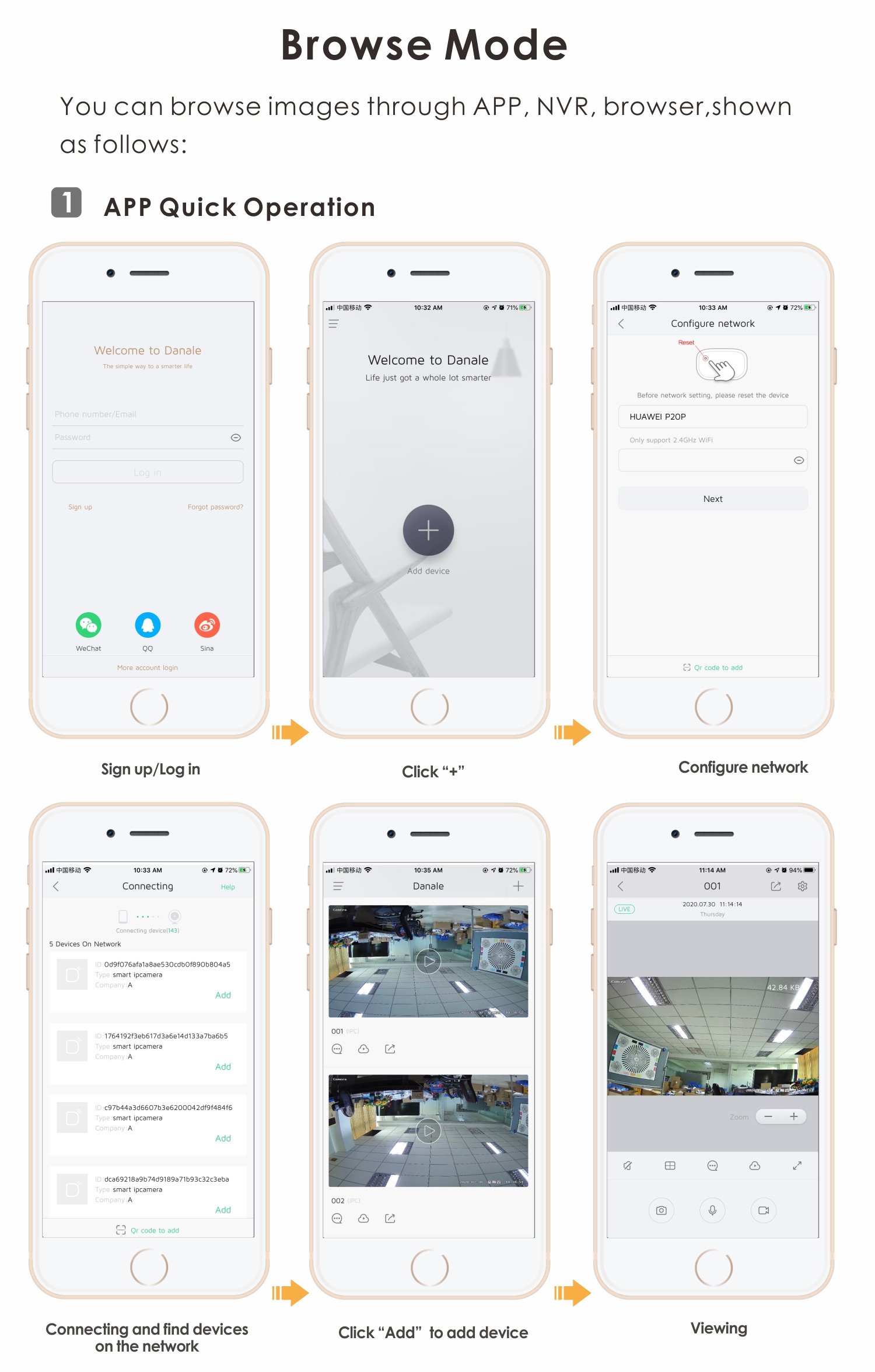

• Free PC Client Software and Smartphone APP(P2P)
• Support Alarm Snapshot to Email and FTP
• Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT
D-WDR,Mirror, Image Flip etc. Functions
• Audio in/out Optional (RCA Cable Interface)
• 12V DC (PoE Optional)

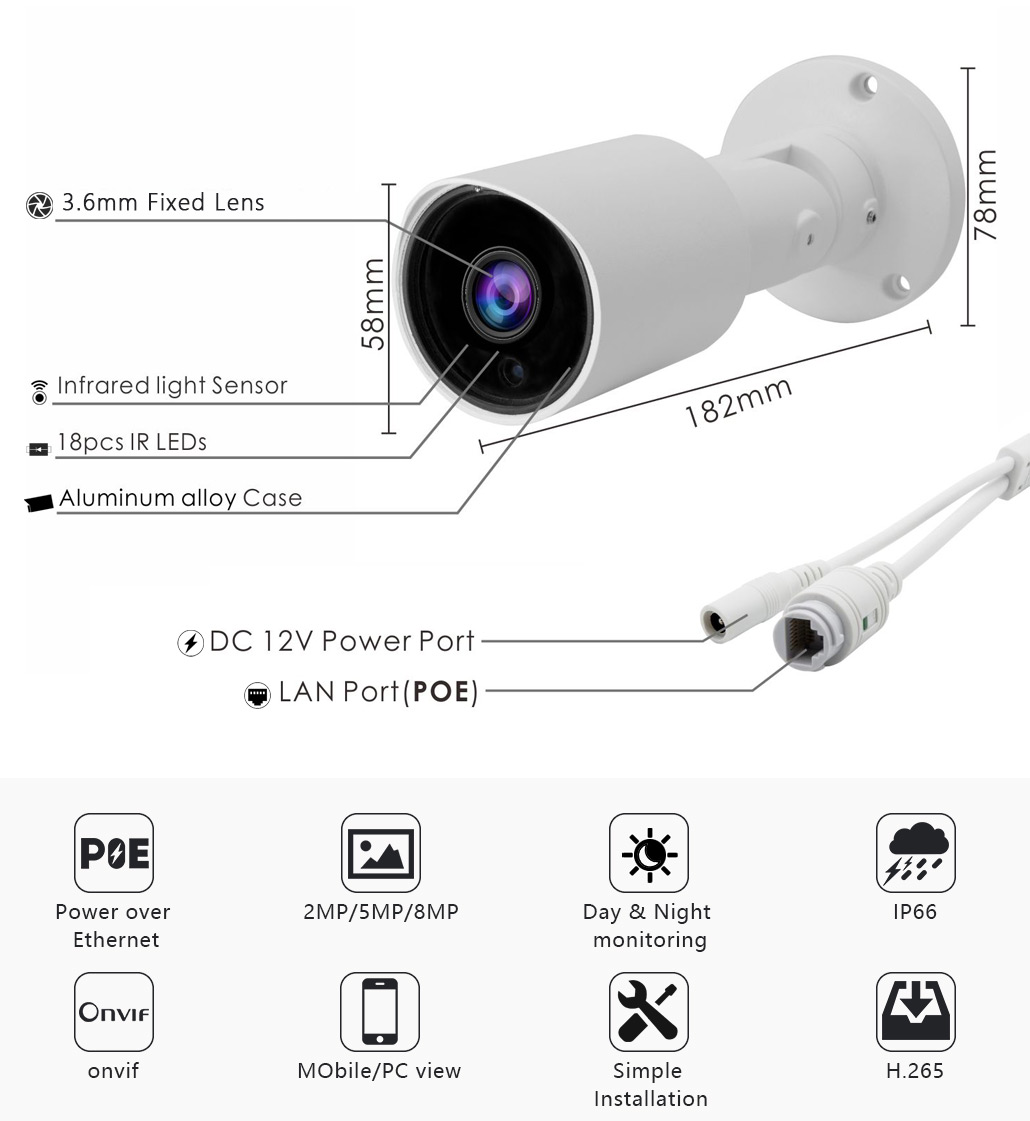

• 3.6mm fixed lens
• IR range: up to 15m
• Water-proof: IP66
• Up to 5 megapixel high resolution
• Max. 2592×1944(5MP)@30fps(50HZ/60HZ)
• Support RTSP&Onvif(2.4+Media2 Version)
Compatible with many third-party NVRs and CMS
• Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc.
• P2P Cloud service
• Free PC Client Software and Smartphone APP(P2P)
• Support Alarm Snapshot to Email and FTP
• Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT
D-WDR,Mirror, Image Flip etc. Functions
• Audio in/out Optional (RCA Cable Interface)
• 12V DC (PoE Optional)
• 3.6mm fixed lens
• IR range: up to 15m
• Water-proof: IP66
Quantity:
| Image Sensor: | 1/2.8"Sony335 5MP Progressive Scan CMOS |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter Time: | 1/25 s to 1/100,000 s |
| Lens: | 3.6mm fixed lens |
| Day&Night: | IR cut filter with auto switch |
| Image Enhancement: | BLC/3D DNR/D-WDR |
| Motion Detection | Support |
| Privacy Protection | Support(4 Self-customized Areas) |
| Water-Proof: | IP66 |
| Illumination for Infrared Switching: | 0.5~3Lux |
| Infrared Wavelength: | 850nm |
| Mimimum Illumination: | 0 Lux(IR ON) |
| IR Range: | 18pcs IR Leds, up to 15m |
| Compression Standard | |
| Video Compression: | H.265/H.264/MJPEG |
| Video Bit Rate: | 32Kbps~12Mbps(CBR/VBR Selectable) |
| Audio Compression: | G711U/G711A |
| Dual Streams: | Yes |
| Triple Streams: | Yes |
| Image | |
| Max. Image Resolution: | 2592×1944(5MP)@30fps |
| Frame Rate: | 50/60Hz:2592*1944@25fps,(2560*1920/2304*1296/2048*1536/1080P/960P/720P/D1)@25fps |
| Sub Stream: | 50Hz/60Hz: (720*480/VGA/640*360/480*360/CIF)@25fps |
| Third Stream(Mobile Stream): | 50/60Hz: (1080P/720P/CIF)@5fps |
| Image Settings: | 3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App |
| Day/Night Switch: | Auto(Passive Mode)/Day/Night/Auto(Active Mode)/Time |
| Network | |
| Network Protocols: | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, RTMP, DDNS, IP Search(Support Danale IP camera, DVR, NVS and etc.) |
| General Function: | Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark |
| System Compatibility: | ONVIF(17.06 ) profile S/Danale(P2P) |
| On-line Viewing | Max. Support 6 Users Simultaneously |
| Interface | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet Interface |
| RCA Audio Interface: | RCA Audio input/output Interface (Optional) |
| DC Power Plug: | DC Power Female Interface |
| General | |
| Operating Conditions: | -10 °C ~ 60 °C |
| Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 V DC ± 10%/PoE(Optional) |
| Power Consumption: | 12 VDC ± 10%, Max Power Comsumption Less than 10W (When the infrared lamps turn on) |
| Weight: | 0.35KG |
