5MP Optical Zoom Infrared Night Bullet POE IP Camera Besview

BC-IB715TRW-MSCN

The IP box camera adopts full digital processing technology and will not cause loss of image quality due to the conversion between analog and digital. The zoom range of the box camera can reach up to 12X, which can realize long-distance monitoring, so the application range is very wide, and the camera is high-definition advanced imaging technology, high-definition fog function, infrared detection lock, day and night conversion infrared camera function, etc. have been widely used. It can effectively reduce image noise in low-light environments at night and improve the image quality.

Quantity:

Contact Now

Image Sensor:	Mstar328Q+1/2.8''Sony335
Signal System:	PAL/NTSC
Min. Illumination:	Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR
Shutter Time:	1/25 s to 1/100,000 s
Lens:	12X 5-60mm Motor Lens
Day&Night:	IR cut filter with auto switch
Image Enhancement:	BLC/3D DNR/D-WDR
Motion Detection	Support
Privacy Protection	Support(4 Self-customized Areas)
Water-Proof:	IP66
Illumination for Infrared Switching:	0.5~3Lux
Infrared Wavelength:	850nm
Mimimum Illumination:	0 Lux(IR ON)
IR Range:	6PCS Big Power SMT LEDS//45m IR
Compression Standard
Video Compression:	H.265/H.264/MJPEG
Video Bit Rate:	32Kbps~12288Kbps(CBR/VBR Selectable)
Audio Compression:	G711U/G711A
Dual Streams:	Yes
Triple Streams:	No
Max. Image Resolution:	2592*1944@25fps(5MP)
Frame Rate:	50/60Hz: Max.: 2592*1944@25fps
Sub Stream:	50Hz/60Hz: Max. (800488/704576/640360/352288)@25fps
Third Stream(Mobile Stream):	/

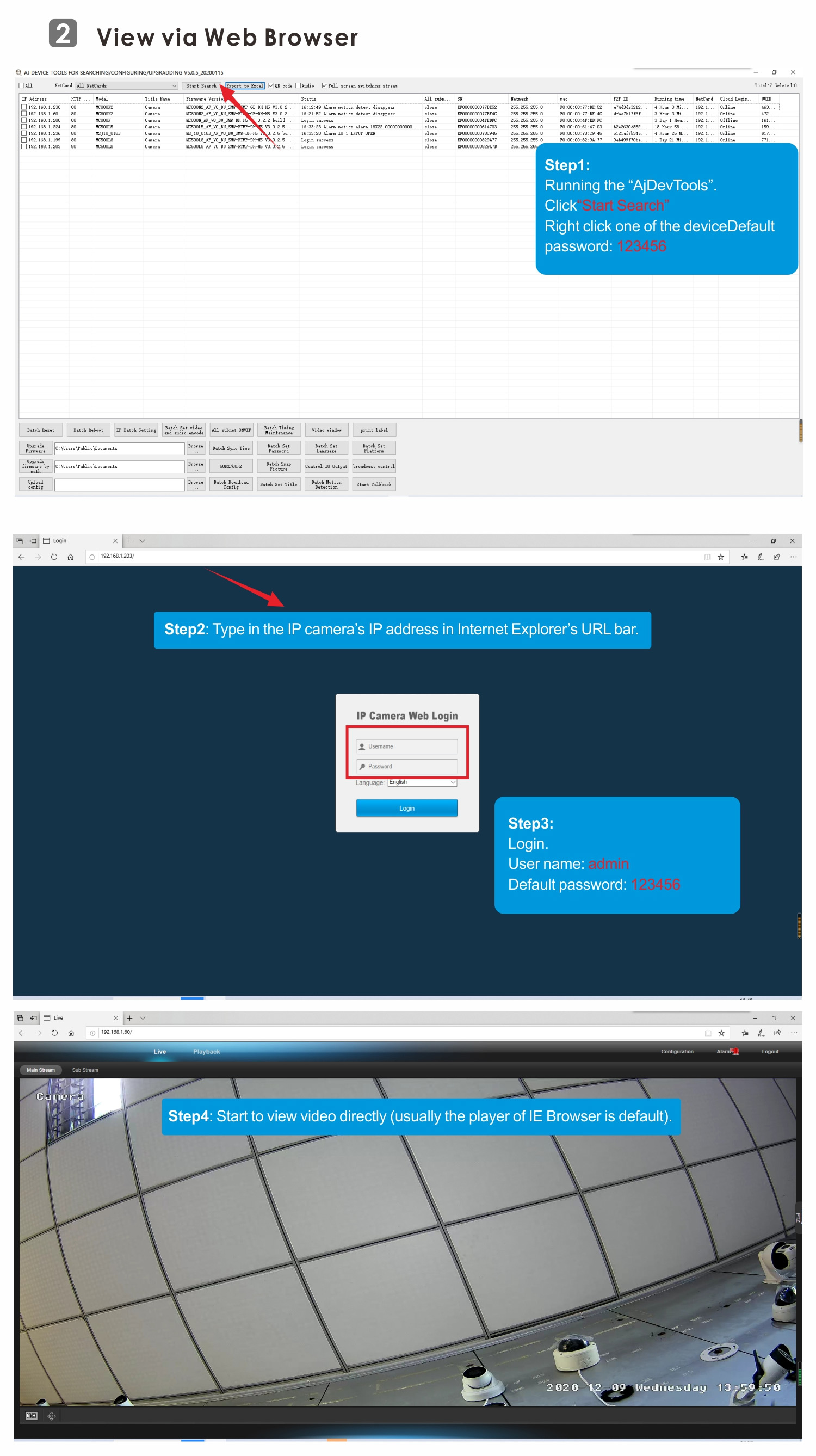

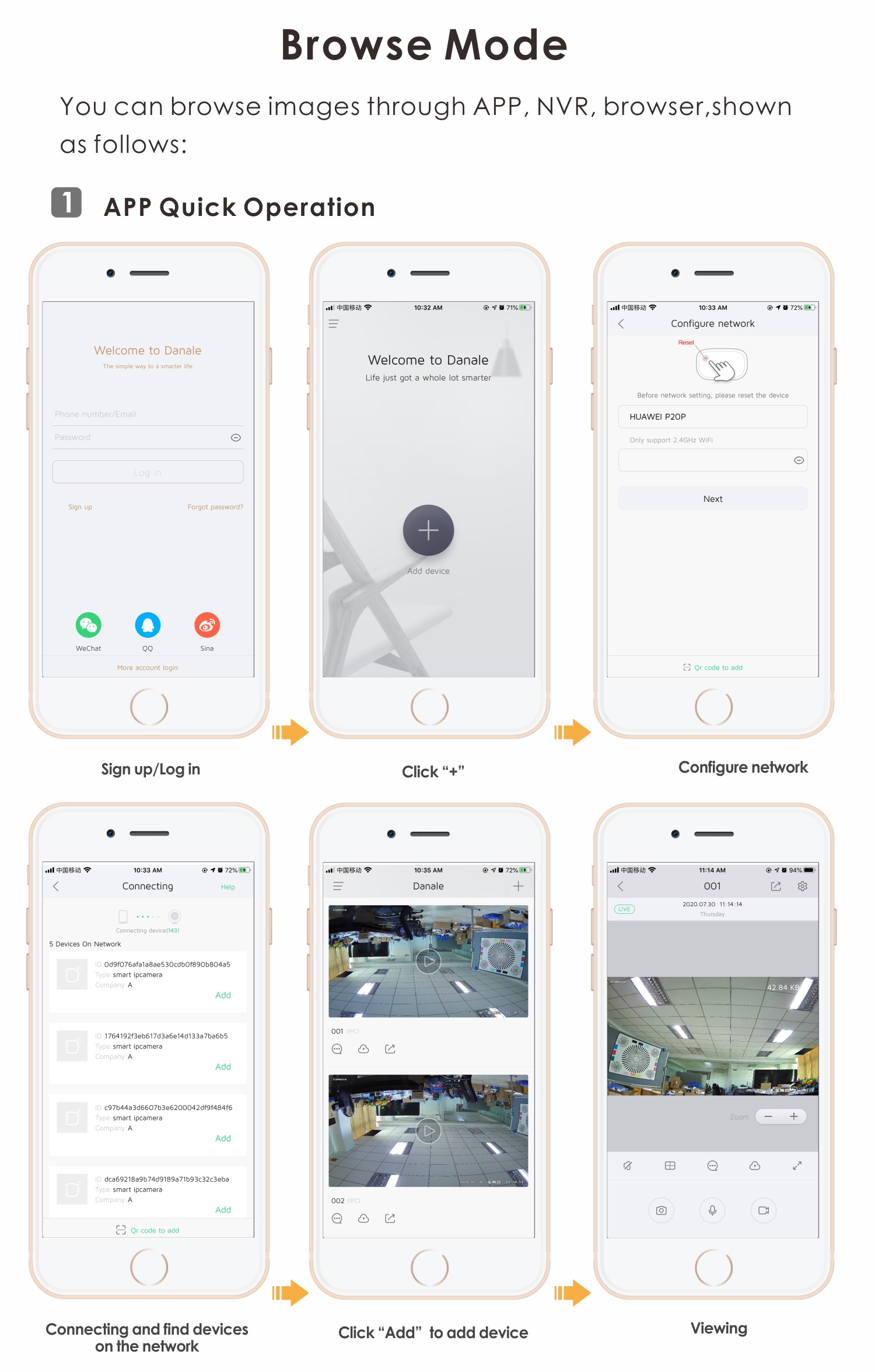

Image Settings:	3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App
Day/Night Switch:	Auto(Passive Mode)/Day/Night/Auto(Active Mode)/Time
Network
Network Protocols:	HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, RTMP,DDNS, IP Search(Support Danale IP camera, DVR, NVS etc.)
General Function:	Anti-Flicker, heartbeat, password protection, privacy mask, Watermark

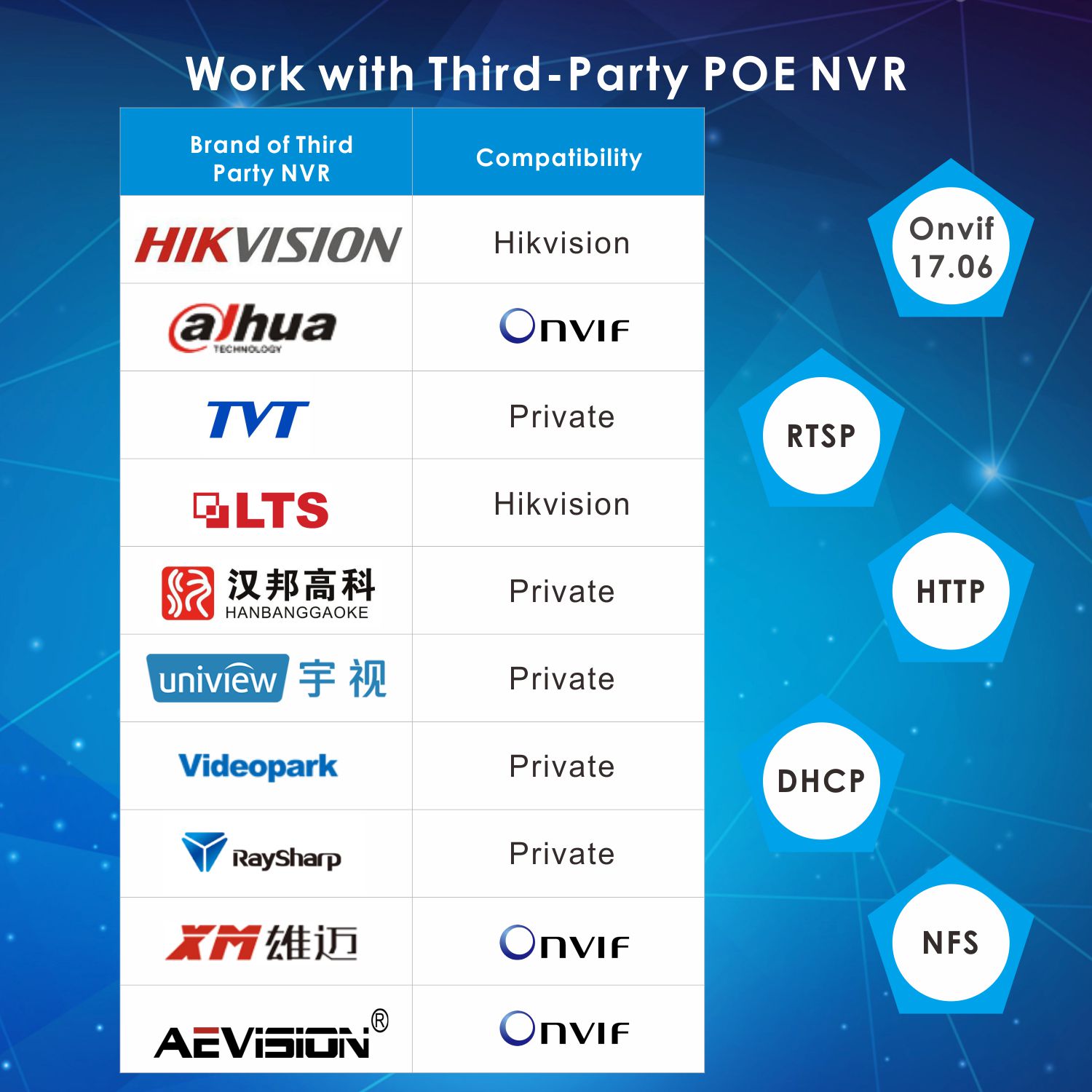

System Compatibility:	ONVIF(17.06 ) profile S/Danale(P2P)
On-line Viewing	Max. Support 6 Users Simultaneously
Interface
Communication Interface:	1 RJ45 10M / 100M Ethernet Interface
RCA Audio Interface:	RCA Audio input/output Interface (Optional)
DC Power Plug:	DC Power Female Interface
General
Operating Conditions:	-10 °C ~ 60 °C
Operating Conditions:	Humidity 95% or less (non-condensing)
Power Supply:	12 V DC ± 10%/PoE(Optional)
Power Consumption:	12 VDC ± 10%, Max Power Comsumption Less than 8W (When the infrared lamps turn on)

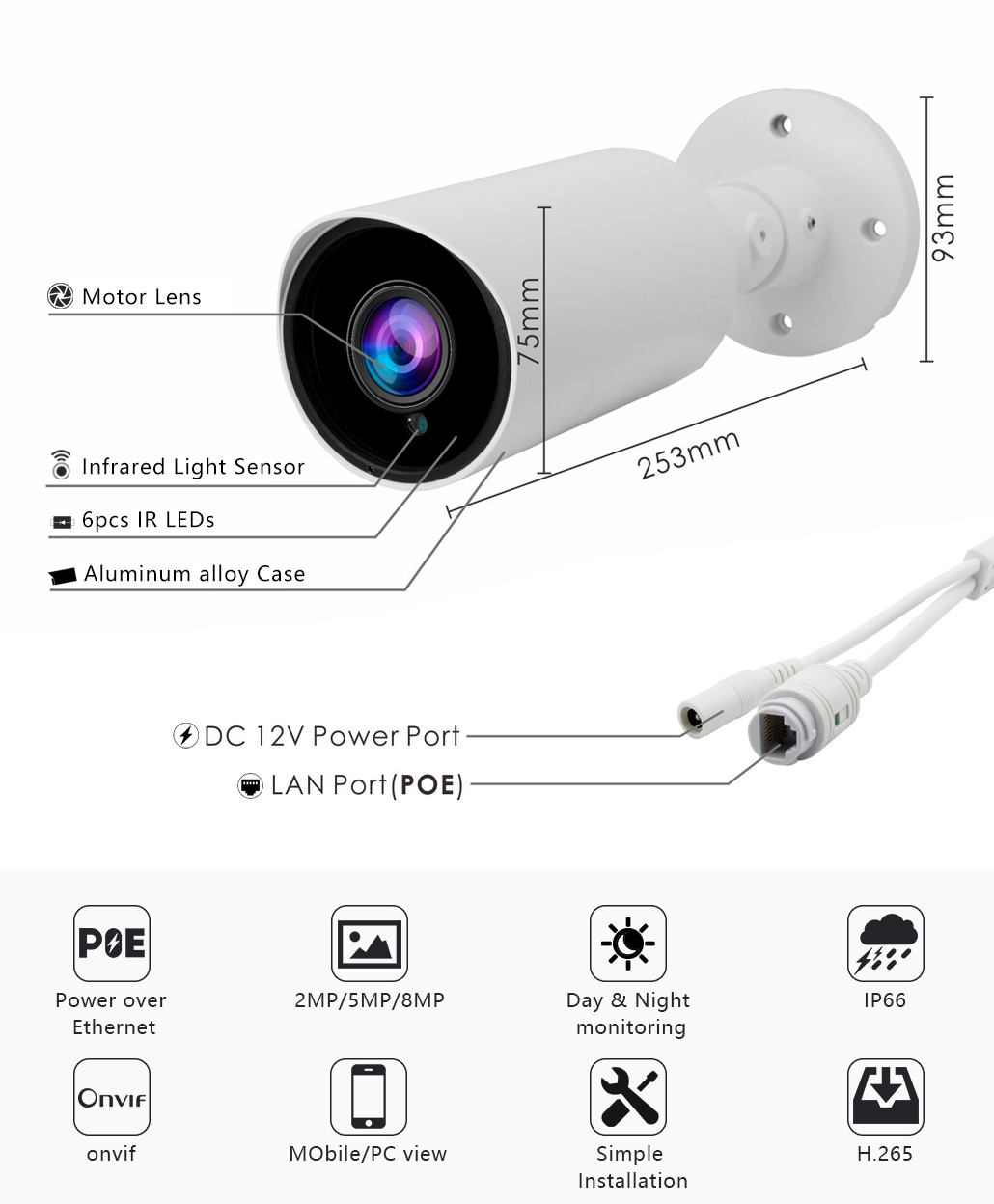

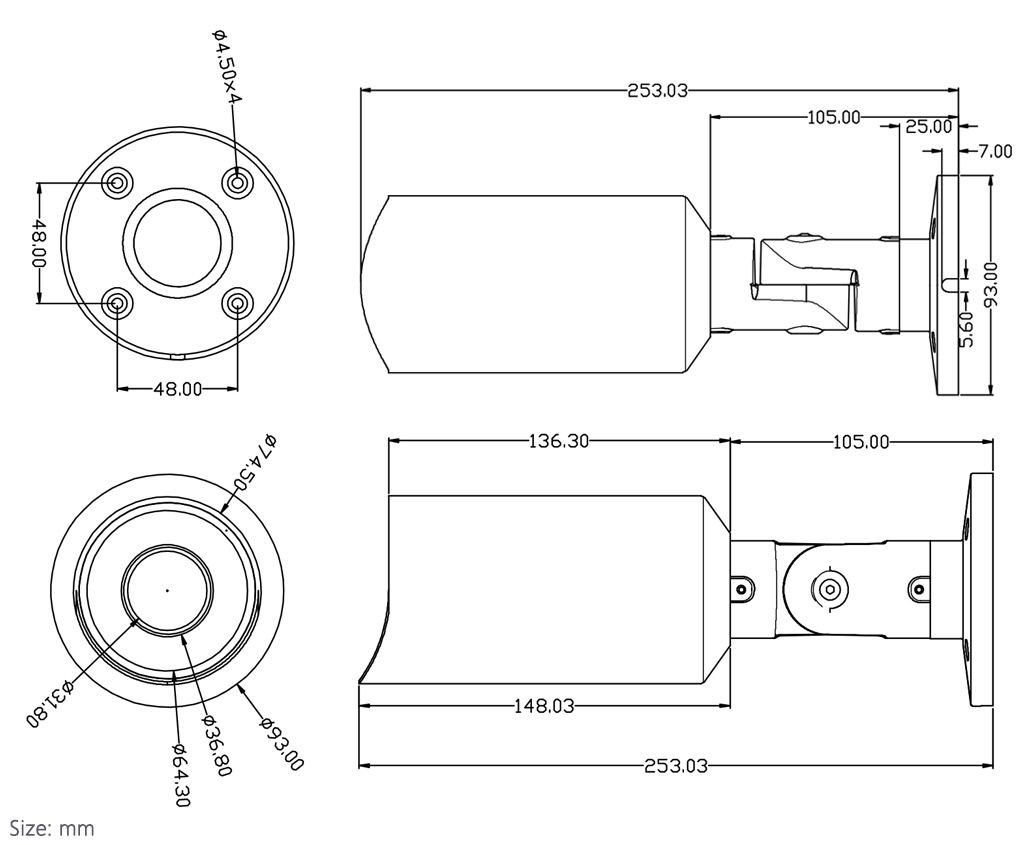

Dimensions(W×H)	253mm×93mm
Weight:	0.90KG
