5MP IP POE H.265 12X Motor Lens Camera IP66 PTZ Vandalproof Dome Camera Besview

BC-IP305TRW-M5CN

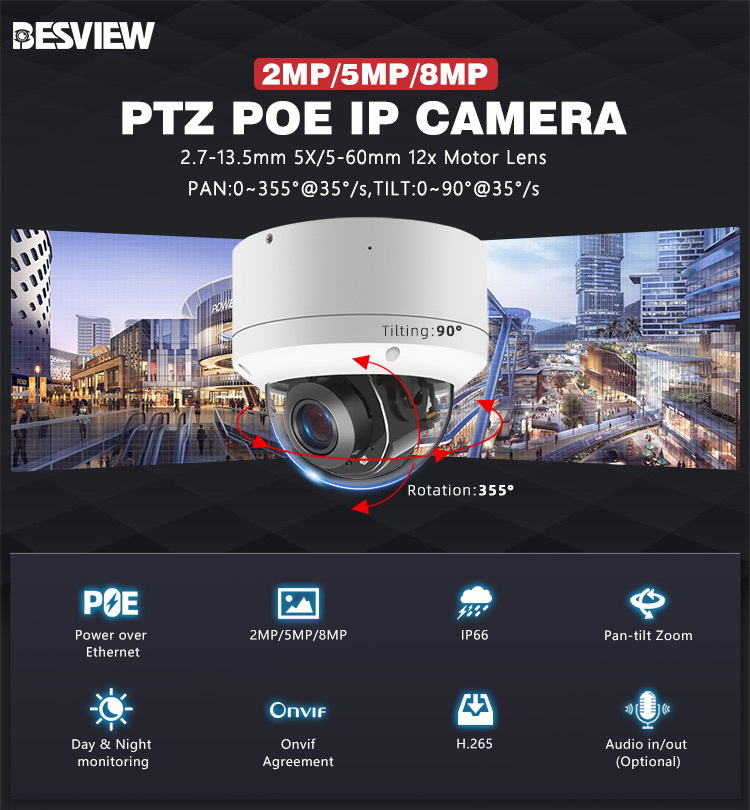

PTZ stands for pan/tilt movement in all directions (left and right/up and down) and lens zoom and zoom control. Usually this word is mentioned, and it can be understood as PTZ control in a popular way. Within the scope of the scene monitored by the camera, when a moving target appears, the user can control the camera to rotate up, down, left and right to track and lock the target. Some models can also provide the human tracking function, that is, people who appear in the target area are locked and automatically tracked until the target disappears. The PTZ tracking module makes up for the shortcomings of the narrow view of the fixed camera monitoring, and is a necessary function for a complete security monitoring system.
Quantity:
Contact Now
Image    Sensor:1/2.8''Sony335 5MP    CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR
Shutter Time:1/25 s to 1/100,000 s

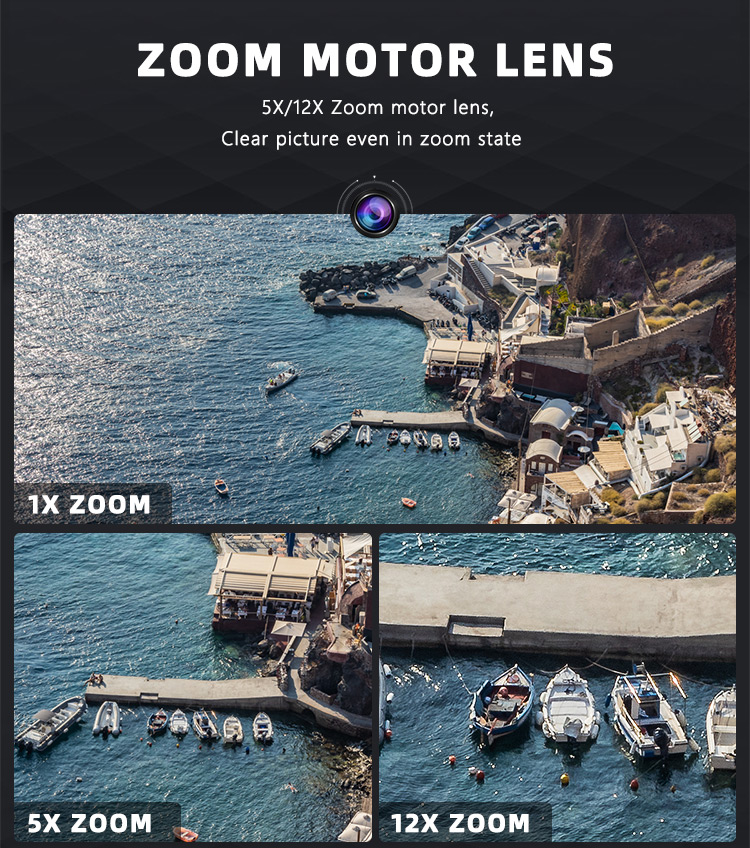

Lens:12X 5-60mm Motor Lens
Day&Night:IR cut filter with auto switch
Image Enhancement:BLC/3D    DNR/D-WDR

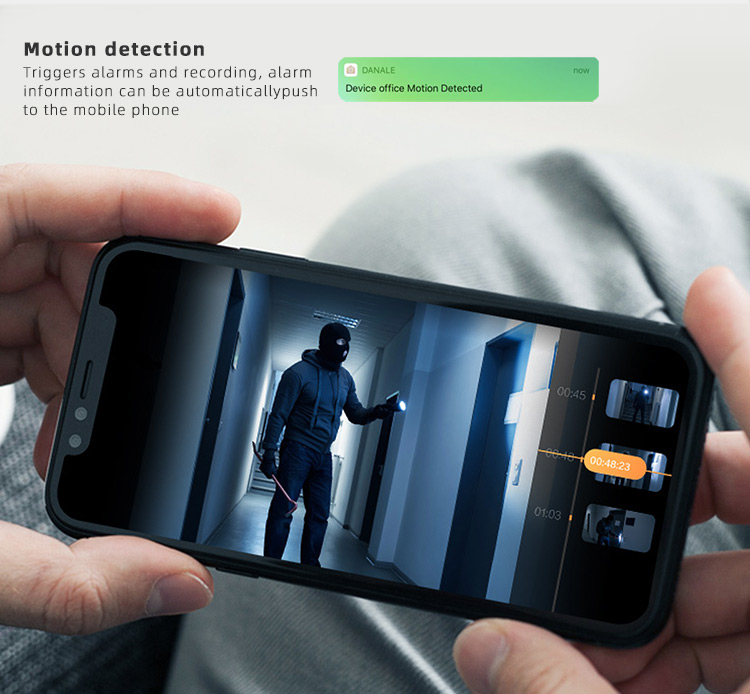

Motion DetectionSupport
Privacy ProtectionSupport(4    Self-customized Areas)

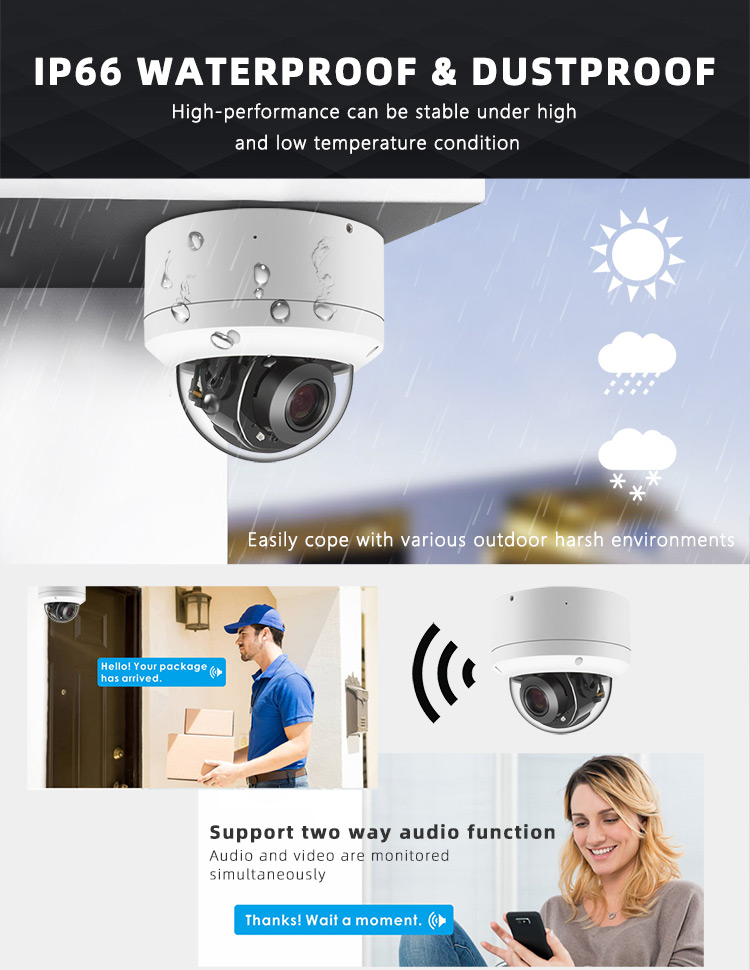

Water-Proof:IP66
Illumination for Infrared Switching:1~3Lux
Infrared Wavelength:850nm
Mimimum Illumination:0    Lux(IR ON)
IR Range:2pcs    Strong LED, up to 35m
Compression Standard

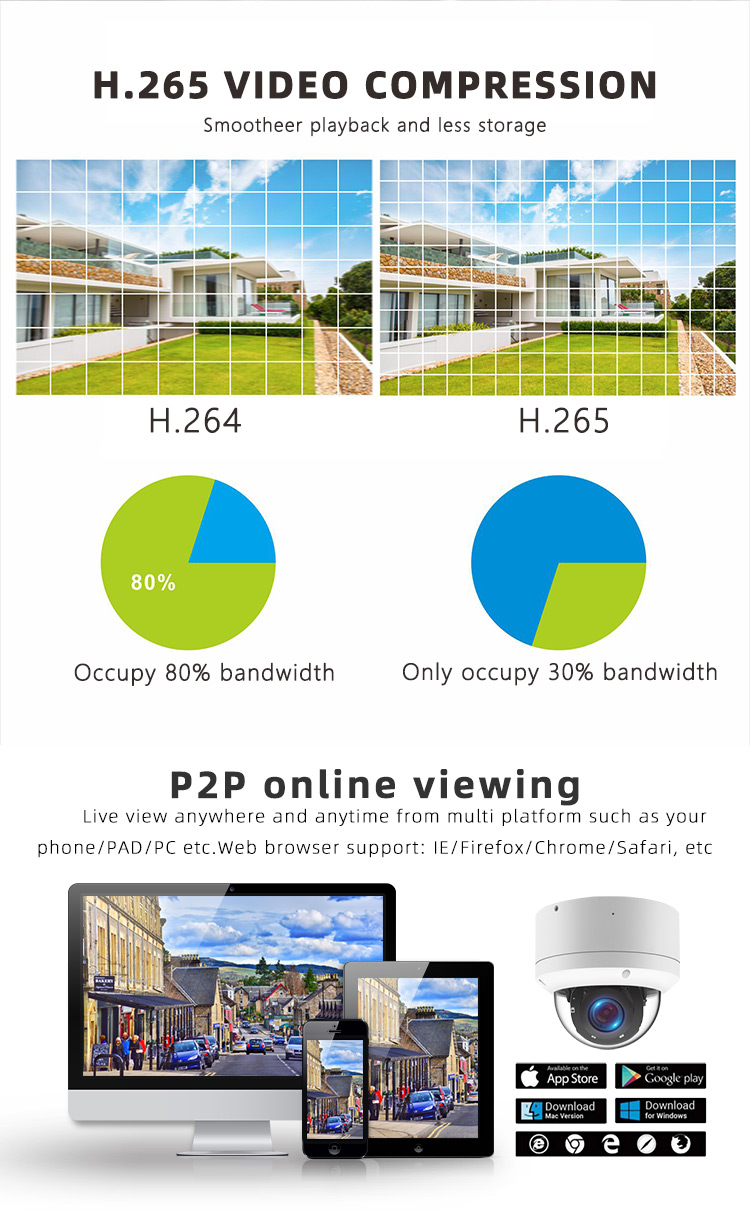

Video Compression:H.265+/H.265/H.264/MJPEG
Video Bit Rate:500Kbps~6144Kbps(CBR/VBR    Selectable)
Audio Compression:G711U/G711A
Dual Streams:Yes
Triple Streams:/
Max. Image Resolution:2592×1944(5MP)@25fps
Frame Rate:50/60Hz:    Max.: 5MP(2592*1944)@25fps; 4MP/3MP/2MP/720P(2560*1440/    2048*1520/2304*1296/1920*1080/1280*720)@25fps
Sub Stream:50Hz/60Hz: Max. (D1/VGA/640*360/480*360/CIF)@25fps/30fps
Third Stream(Mobile Stream):/
Image Settings:3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness

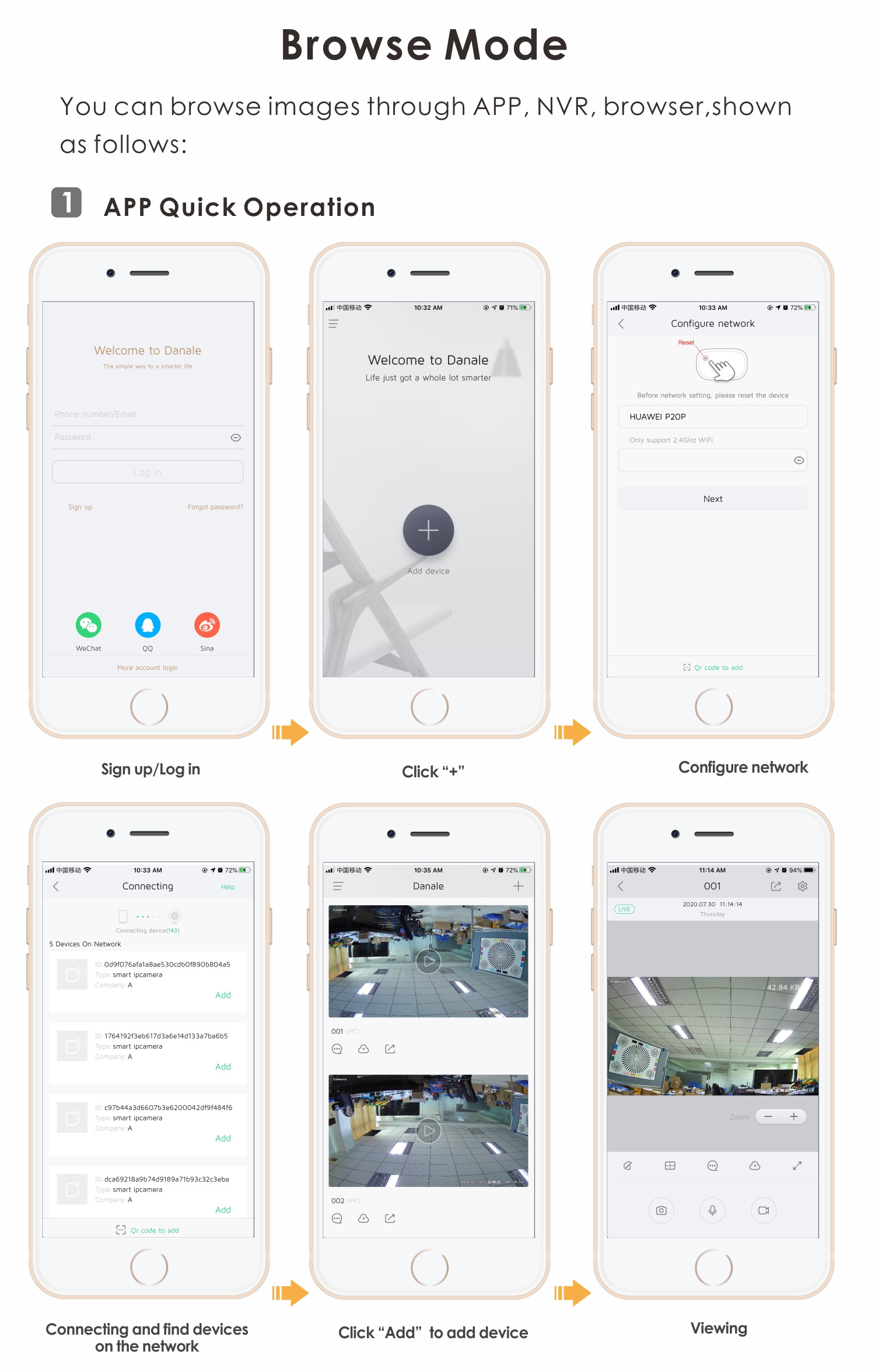

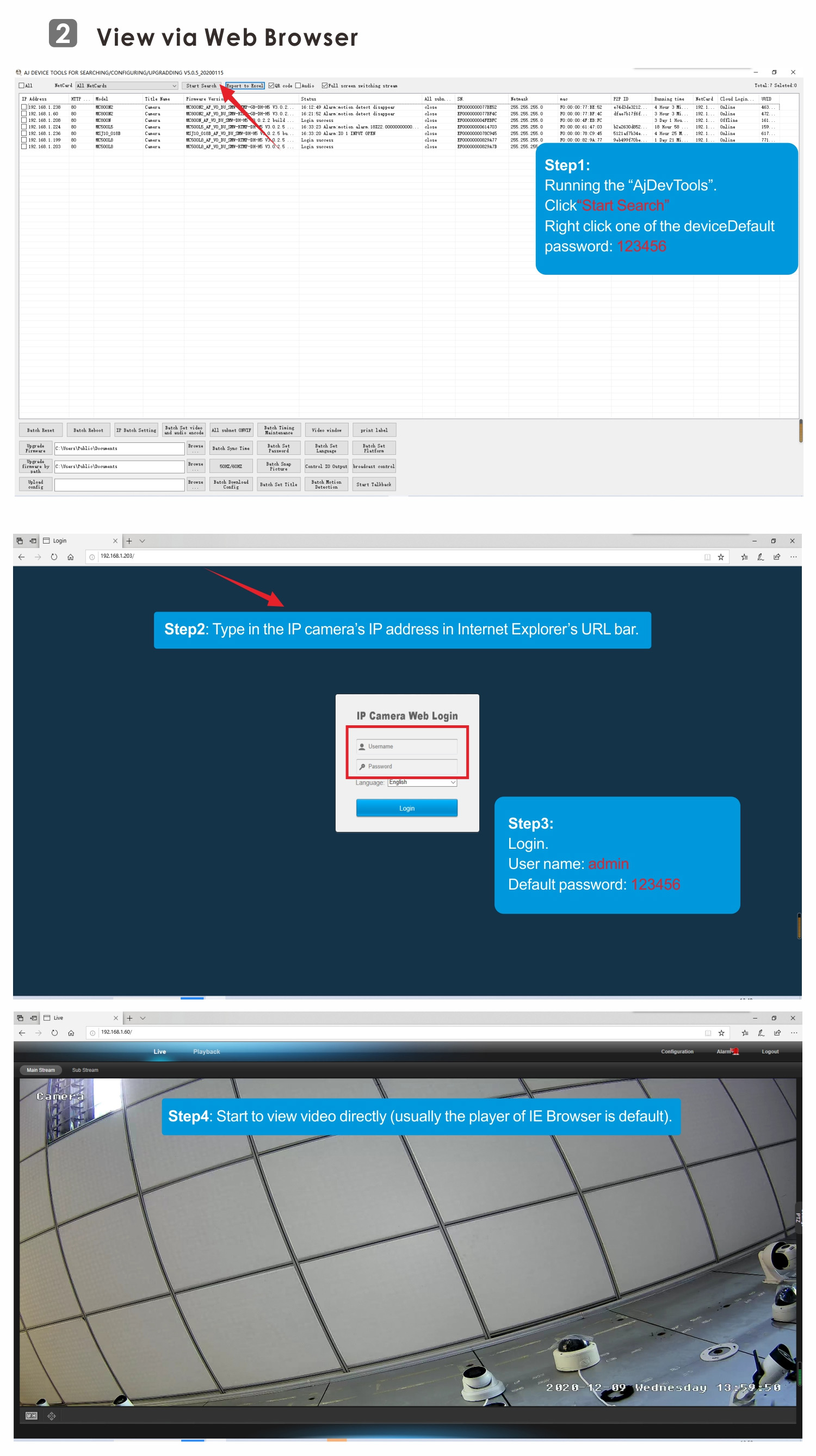

     adjustable via client software, web browser or    Smartphone App
Day/Night Switch:Auto/Timing/External/Manual
Network
Network Protocols:HTTP, TCP/IP, IPv4, UPNP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, RTMP, DDNS    etc.
General Function:Anti-Flicker, heartbeat, mirror, password protection,
     privacy mask, Watermark

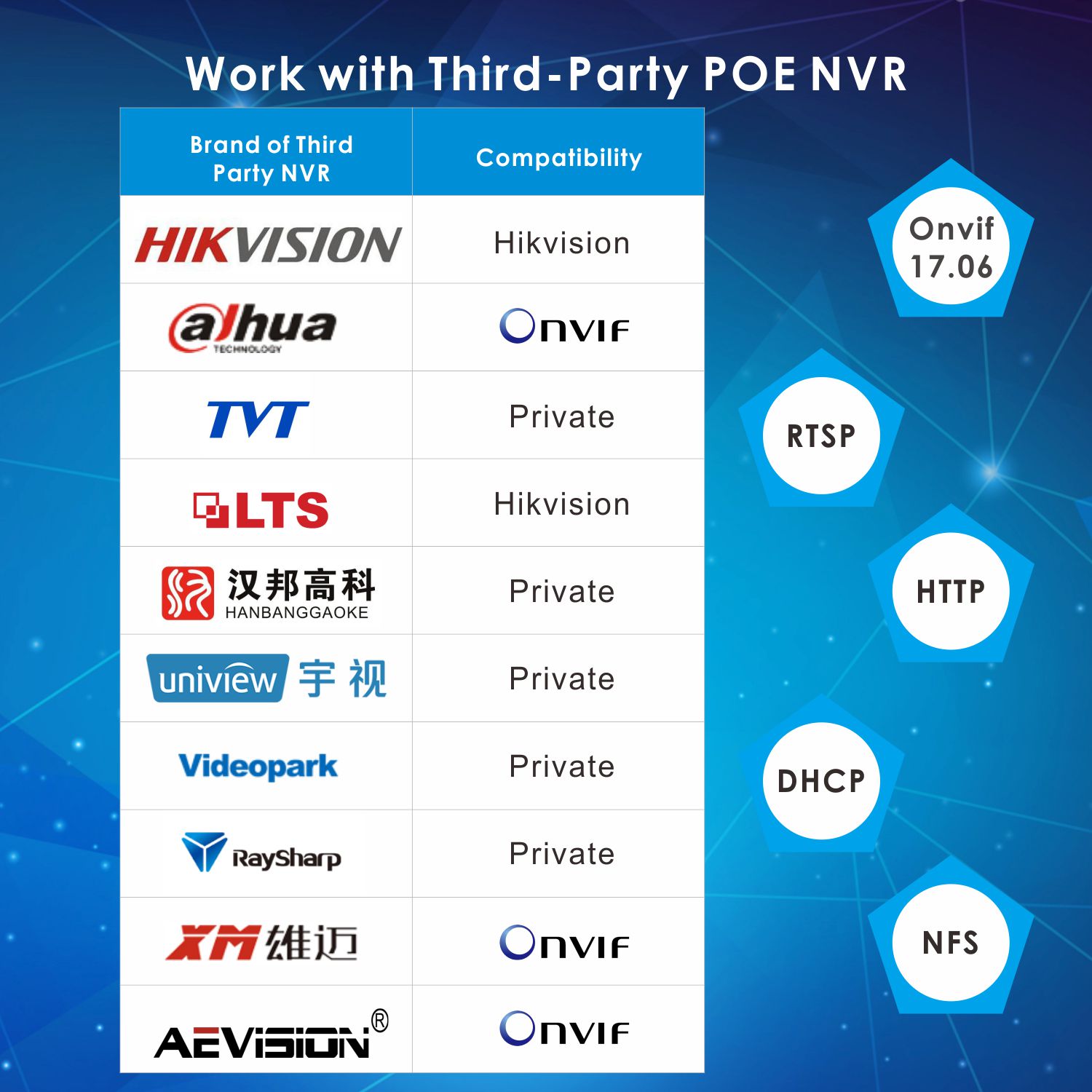

System Compatibility:ONVIF(17.06 ) profile S/Danale(P2P)
On-line ViewingMax.    Support 2 Users Simultaneously
Interface

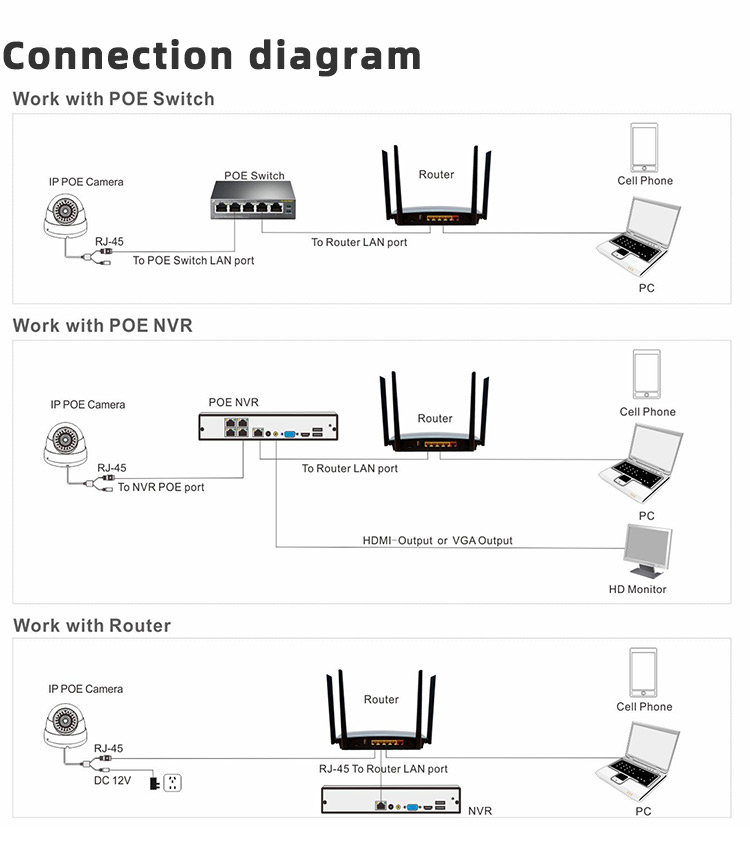

Communication Interface:1 RJ45 10M / 100M Ethernet Interface
RCA Audio Interface:RCA    Audio input/output  Interface    (Optional)
DC Power Plug:DC    Power Female Interface
General
Operating Conditions:  -10 °C ~ 60 °C
Humidity 95% or less (non-condensing)
Power Supply:12 V    DC ± 10%/PoE(Optional)
Power Consumption:12 VDC ± 10%, Max Power Comsumption Less than 10W
     (When the infrared lamps turn on)

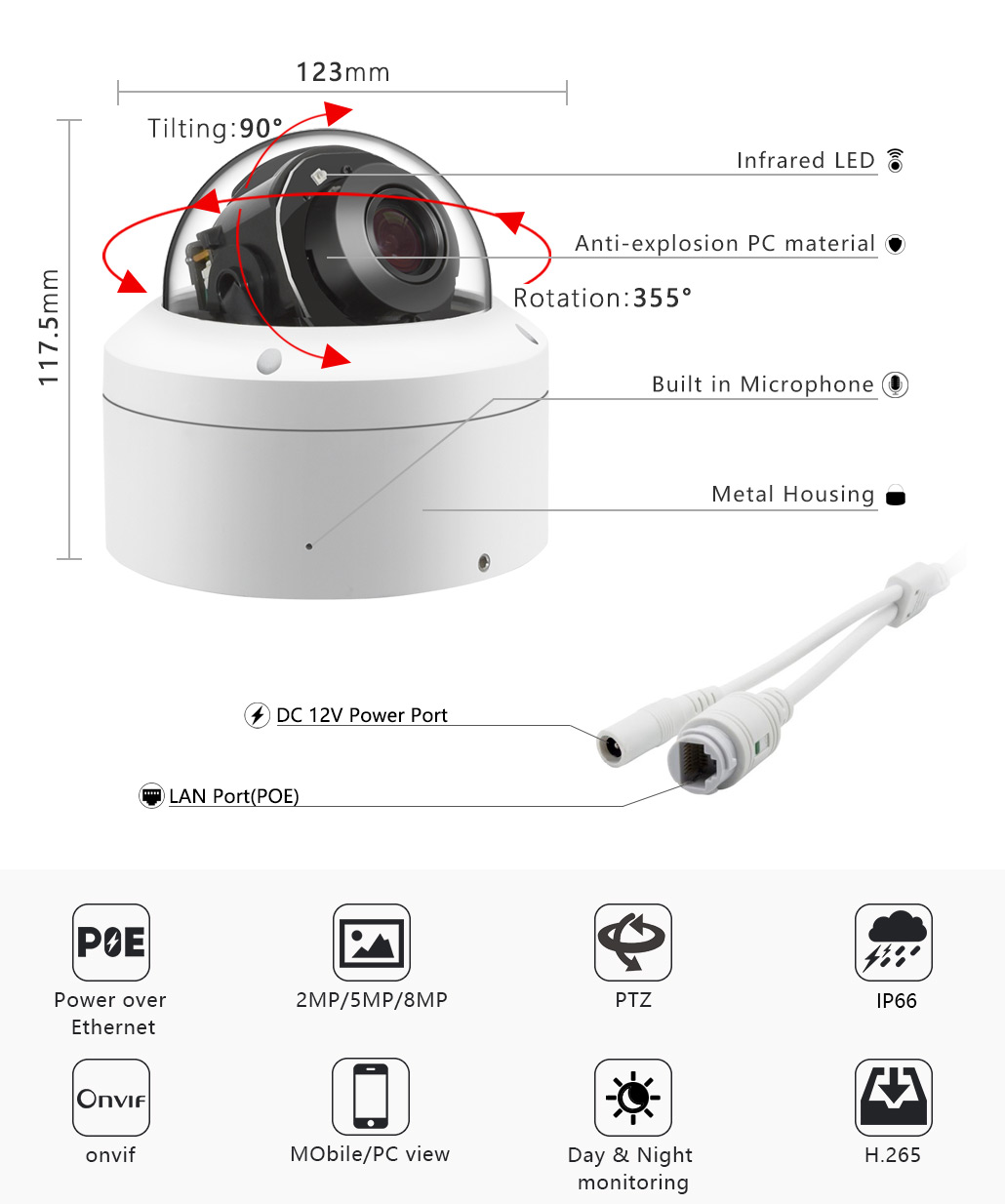

Weight:0.98KG
