5MP Human Tracking Zoom Camera IP POE H.265 PTZ Besview

BC-IP505YRW-MSCN
The high-speed ball is characterize by high rotation speed, high optical zoom and high accuracy. Among them, the rotation speed can be as high as 60 degrees/s, which is convenient for tracking and capturing and moving objects at high speed.

The optical zoom is high, and the larger body can accommodate a higher speed movement and a more powerful infrared lamp. It is easy to track and capture form 300-500 m away.

The repetition accuracy can reach up to 0.1°, which can realize precise position control. Convenient for fixed-point deployment control and tracking.

The high-definition network high-speed dome camera is designed and developed with a maximum of 8 million pixel progressive scan CMOS sensor and high-performance multimedia processor, and is a high-pixel-level IP high-definition network camera based on the advanced H.265 algorithm. Support 4K/5MP/4MP/1080P and other resolution formats 25 frames/second full real-time dual-stream encoding, which convenient for high-definition image transmission on narrow bands. And the stable embedded Linux operating system can meet a variety of monitoring requirements and support a complete TCP/IP protocol cluster.

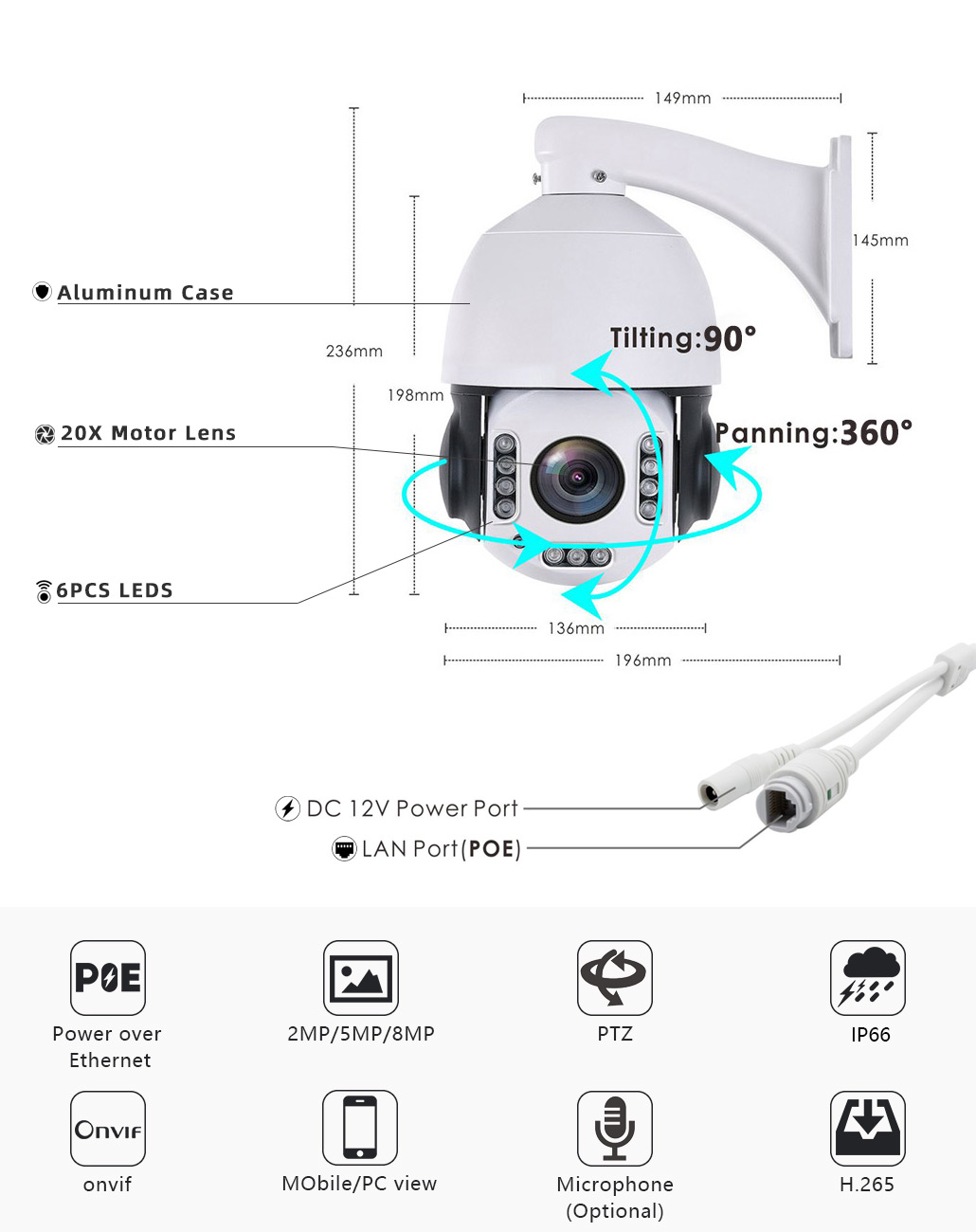

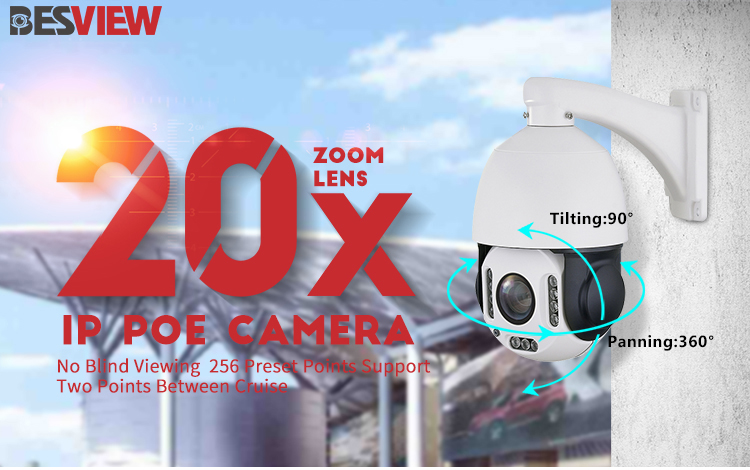

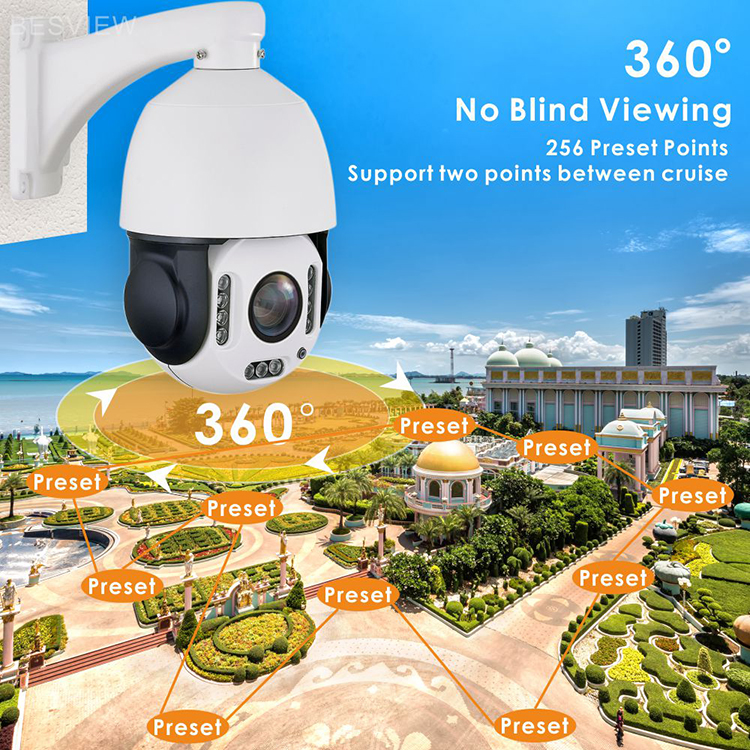

In addition, the high-definition network high-speed dome camera supports up to 30x optical zoom, comes with a pan-tilt, 360 degrees infinite horizontally, 90 degrees vertically, and 180 degrees automatic flip. Does not leave any monitoring blind spots. Provide 128 preset positions, 1 guard position, 4 groups of cruise scans, which can easily realize multiple modes of monitoring. The standard wall mount bracket adapts to outdoor installation requirements. It supports remote access and can easily capture and send high-quality videos through any type of IP network or the Internet. At the same time, POE (AT standard) is used for power supply, which is convenient for wiring and management.
Quantity:
Contact Now
Image    Sensor:1/2.8''Sony335 5MP CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR
Shutter Time:1/25 s to 1/10,000 s
Lens:20X 4.7-94mm Motor Lens
Day&Night:IR cut filter with auto switch
Image Enhancement:BLC/3D    DNR/D-WDR
Motion DetectionSupport
Privacy ProtectionSupport(4    Self-customized Areas)

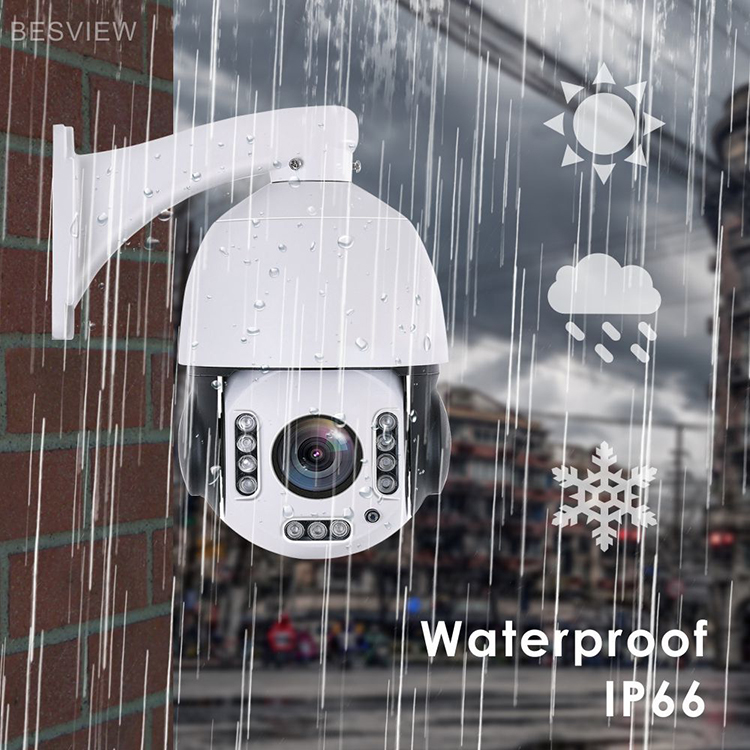

Wather-Proof:IP66
Illumination for Infrared Switching:0.5~3Lux
Infrared Wavelength:850nm
Mimimum Illumination:0    Lux(IR ON)
IR Range:6PCS    LEDS//100m IR
Compression Standard
Video Compression:H.265/H.264/MJPEG
Video Bit Rate:32Kbps~12288Kbps(CBR/VBR    Selectable)
Audio Compression:G711U/G711A
Dual Streams:Yes
Triple Streams:Yes
Max. Image Resolution:2592×1944(5MP)@30fps
Frame Rate:50/60Hz:2592*1944@25fps,(2560*1920/2304*1296/2048*1536/1080P/960P/720P/D1)@25fps
Sub Stream:50Hz/60Hz: (720*480/VGA/640*360/480*360/CIF)@25fps
Third Stream(Mobile Stream):50/60Hz:  (1080P/720P/CIF)@5fps
Image Settings:3D    NR, D-WDR, Image    Flip, Saturation, Brightness, Contrast, Sharpness

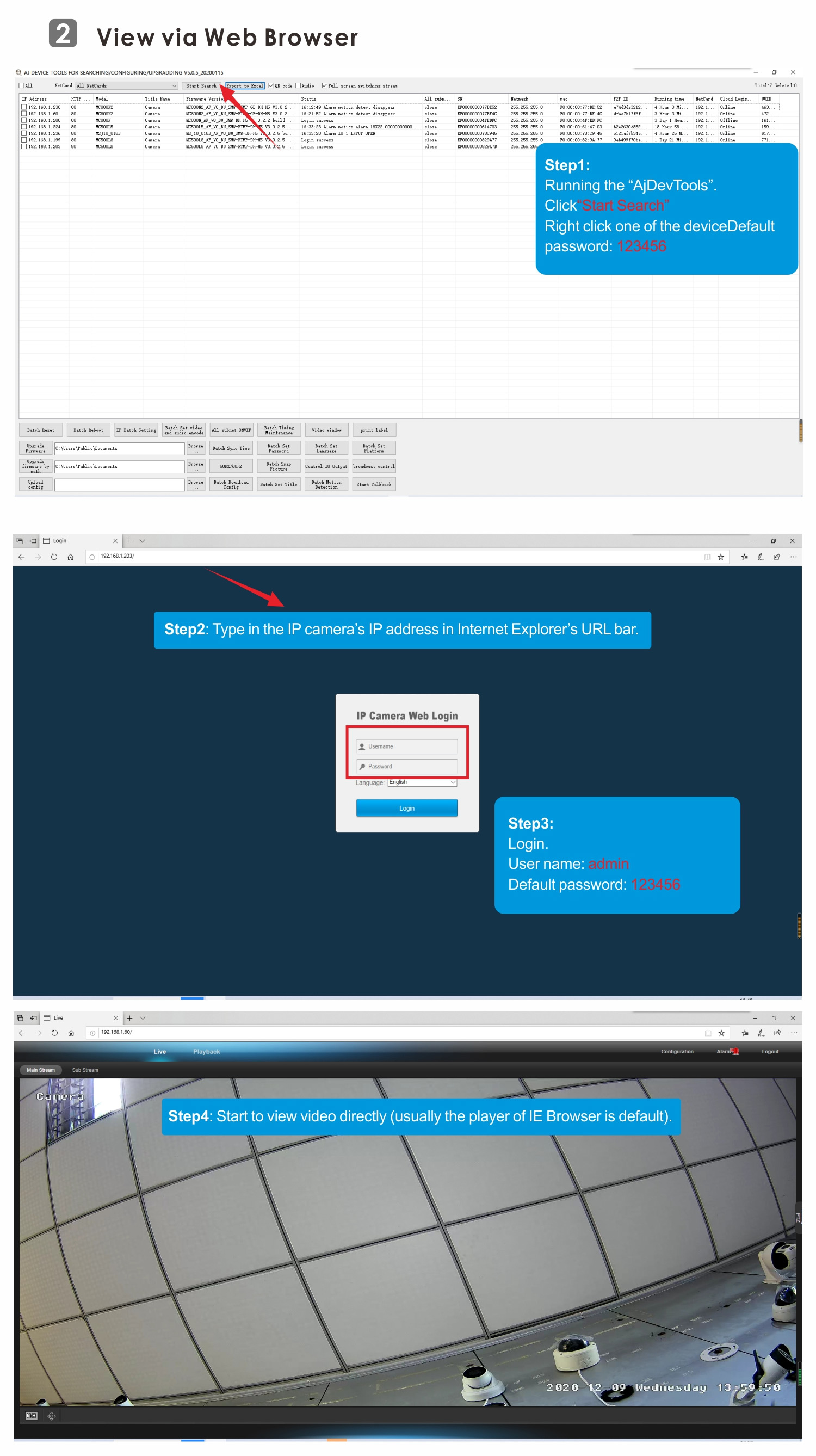

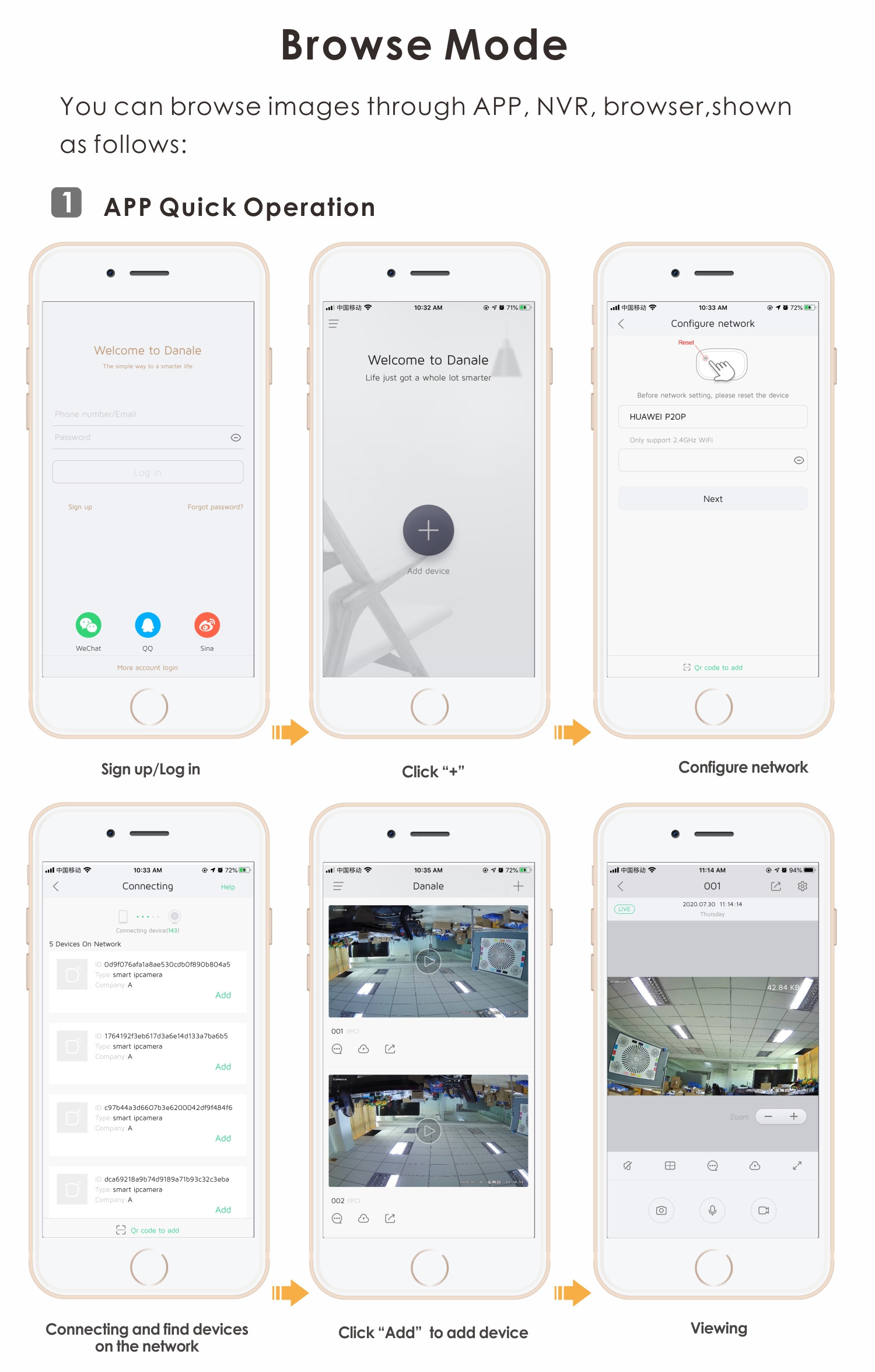

     adjustable via client software, web browser or    Smartphone App
Day/Night Switch:Auto(Passive    Mode)/Day/Night/Auto(Active Mode)/Time
Network
Network Protocols:HTTP,    TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS,    IP Search(Support Danale IP camera, DVR, NVS etc.)
General Function:Anti-Flicker, heartbeat, password protection, privacy    mask, Watermark

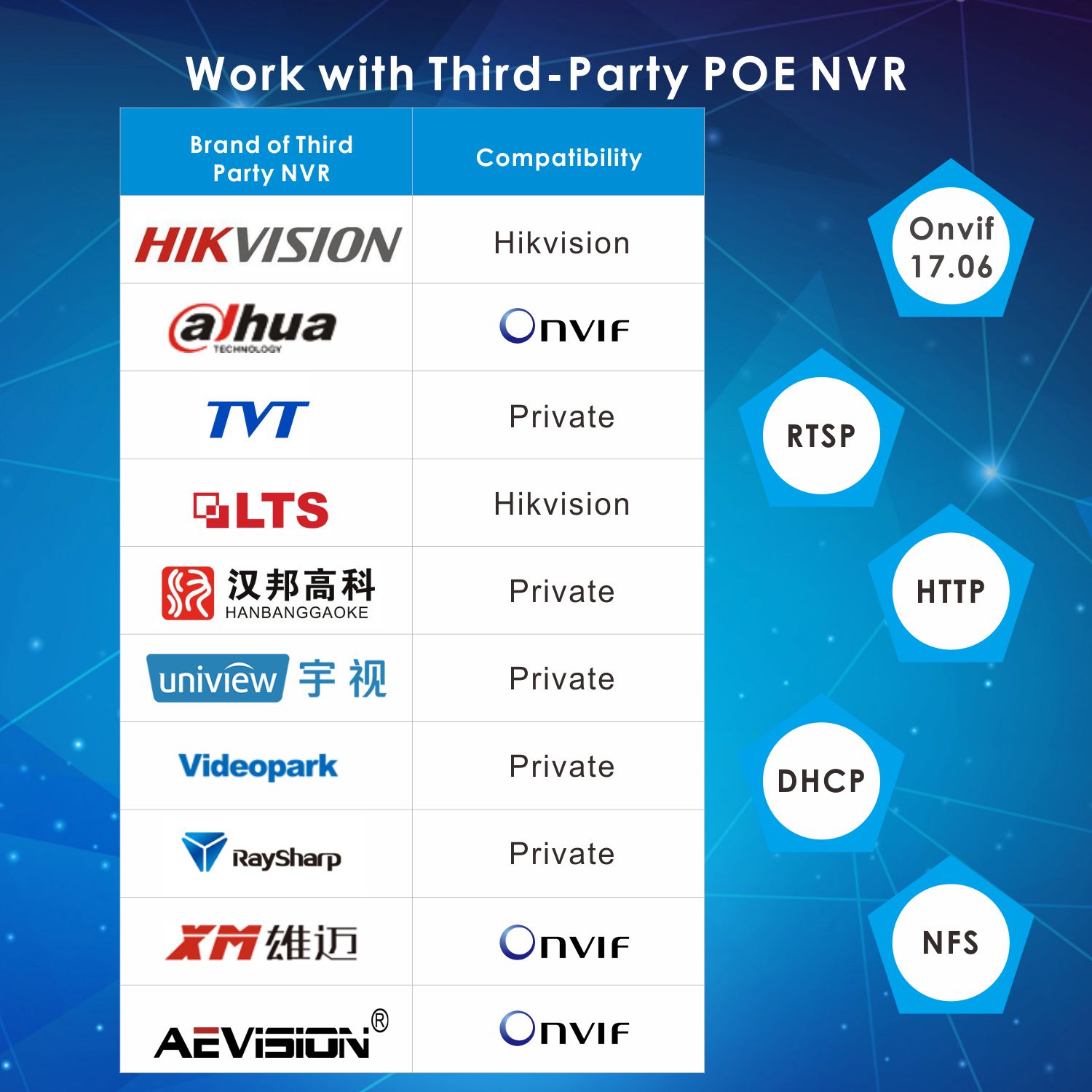

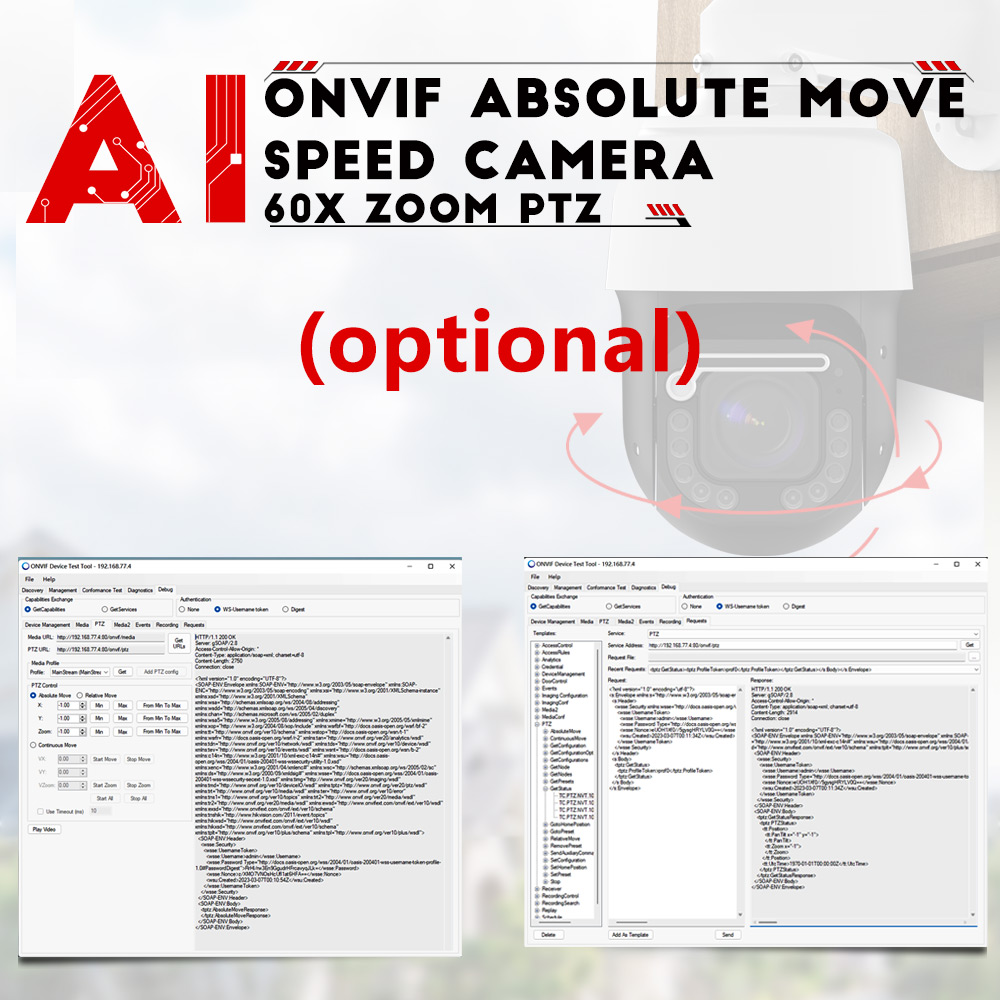

System Compatibility:ONVIF(17.06 ) profile S/Danale
On-line ViewingMax.    Support 2 Users Simultaneously
Interface

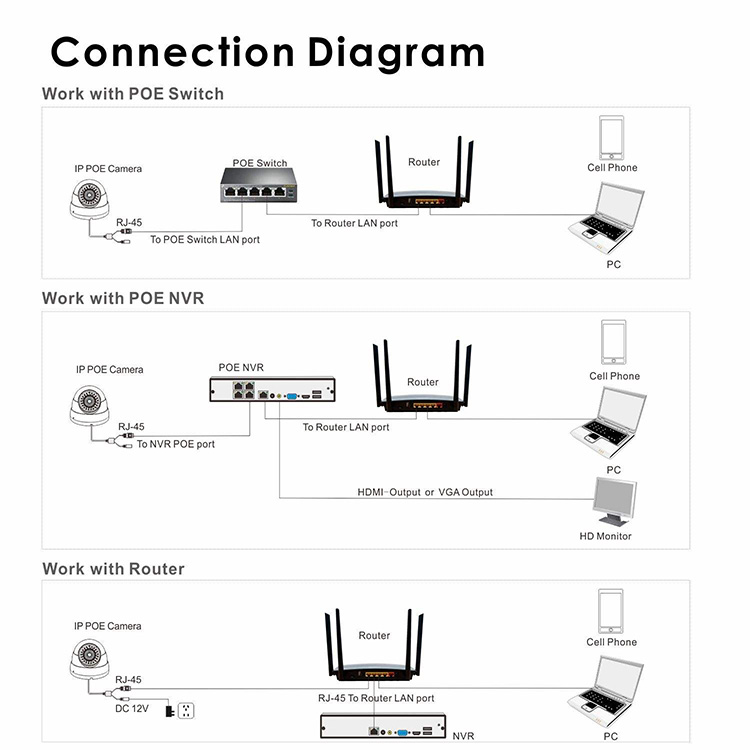

Communication Interface:1 RJ45 10M / 100M Ethernet Interface
RCA Audio Interface:RCA    Audio input/output  Interface    (Optional)
DC Power Plug:DC    Power Femate Interface
General
Operating Conditions:-10 °C ~ 60 °C
Humidity 95% or less (non-condensing)
Power Supply:12 V    DC ± 10%/PoE(Optional)
Power Consumption:12 VDC ± 10%, Max Power Comsumption Less than 8W
     (When the infrared lamps turn on)
Weight:1.78KG
