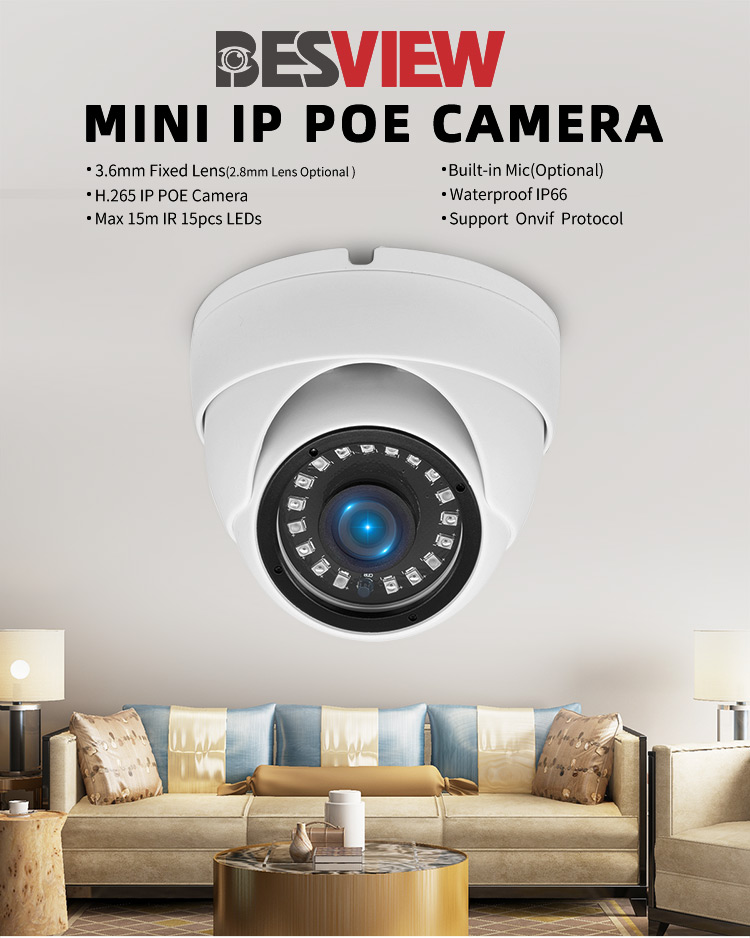

5MP HD Security CCTV Outdoor POE Optional IP Dome Besview

BC-IE213RW-5MS

• H.265/H.264 5MP IP/Network IR Small Eyeball Dome Camera
• Up to 5 megapixel high resolution
• Max. 2592*1944@25fps(50Hz/60Hz)
• Support RTSP&Onvif(17.2 with profile S)
Compatible with many third-party NVRs and CMS
• Support multiply Web Browsers: IE/Firefox/Chrome/Safari etc.
• P2P Cloud service
• Free PC Client Software and Smartphone APP(P2P)
• Support Alarm Snapshot to Email and FTP
• Day/Night, AWB/MWB,BLC,WDR 3D-DNR,Shutter, IR-CUT,
D-WDR,Mirror, Image Flip etc. Functions
• 3.6mm fixed lens
• IR range: up to 15m
• Water-proof: IP66

Quantity:

Contact Now

Image Sensor:	1/2.8'' Sony335 5MP CMOS
Signal System:	PAL/NTSC
Min. Illumination:	Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR
Shutter Time:	1/25 s to 1/10,000 s
Lens:	3.6mm fixed lens
Day&Night:	IR cut filter with auto switch
Image Enhancement:	BLC/3D DNR/D-WDR/WDR
Motion Detection	Support
Intelligent Detection(AI)	Human Detection,Vehicle detection
Privacy Protection	Support(4 Self-customized Areas)
Wather-Proof:	IP66
Illumination for Infrared Switching:	1~5Lux
Infrared Wavelength:	850nm
Mimimum Illumination:	0 Lux(IR ON)
IR Range:	18PCS LEDS//15m IR
Compression Standard

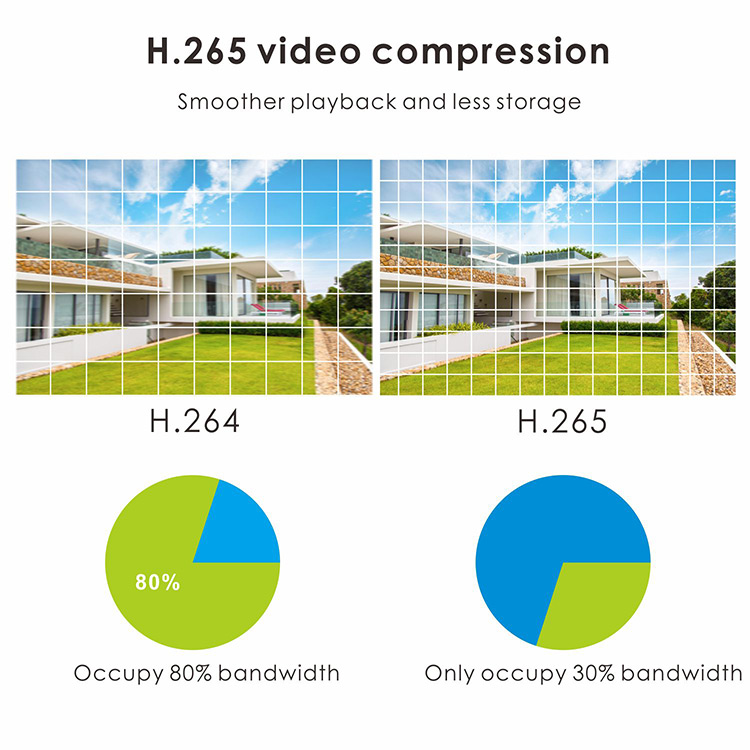

Video Compression:	H.265/H.264
Video Bit Rate:	512Kbps~6144Kbps(main stream H.265) 64kbps~2048Kbps(sub stream H.265)
Audio Compression:	G711U/G711A
Dual Streams:	Yes
Triple Streams:	No
Max. Image Resolution:	2592*1944@25fps(5MP)
Frame Rate:	25fps(5MP).MAX main stream 25fps（D1) .MAX sub stream
Image Settings:	3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App
Day/Night Switch:	EXT/Day/Night/Auto/Time
Audio
Line IN/line OUT：	Support（1ch）
Build-in MIC：	Optional
Volnume adject：	Yes
Network
Network Protocols:	HTTP, TCP/IP, IPv4/v6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS,IP Search(Support P2P, NVR, NVS etc.)
System Compatibility:	ONVIF(17.2 with profile S)
On-line Viewing	Max. Support 2 Users Simultaneously
Interface

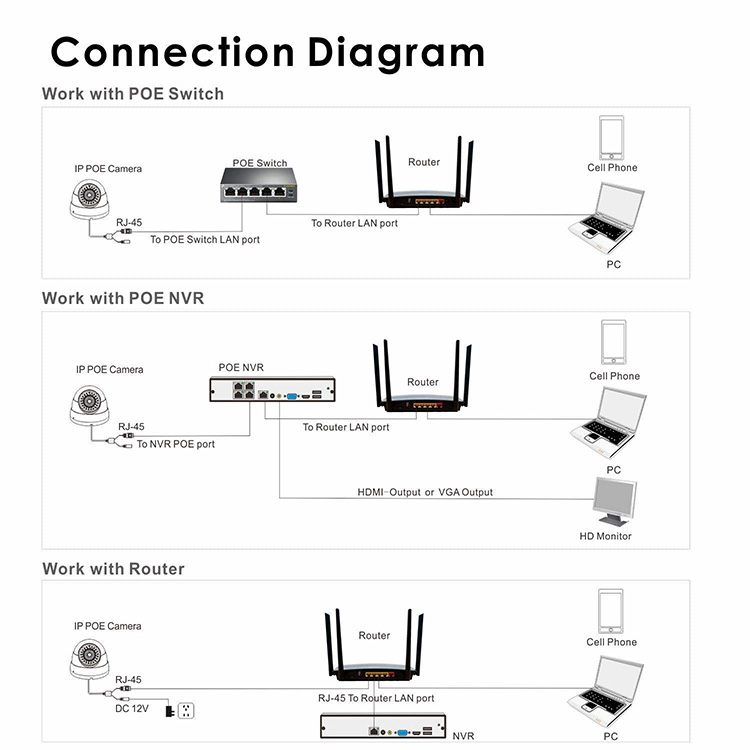

Communication Interface:	1 RJ45 10M / 100M Ethernet Interface
RCA Audio Interface:	RCA Audio input/output Interface (Optional)
Alarm in/out interface：	Support（1ch）（Optional）
DC Power Plug:	DC Power Femate Interface
General
Operating Conditions:	-10 °C ~ 60 °C
Operating Conditions:	Humidity 95% or less (non-condensing)
Power Supply:	12 V DC ± 10%/PoE(Optional)
Power Consumption:	12 VDC ± 10%, Max Power Comsumption Less than 8W (When the infrared lamps turn on)
Weight:	0.35KG
