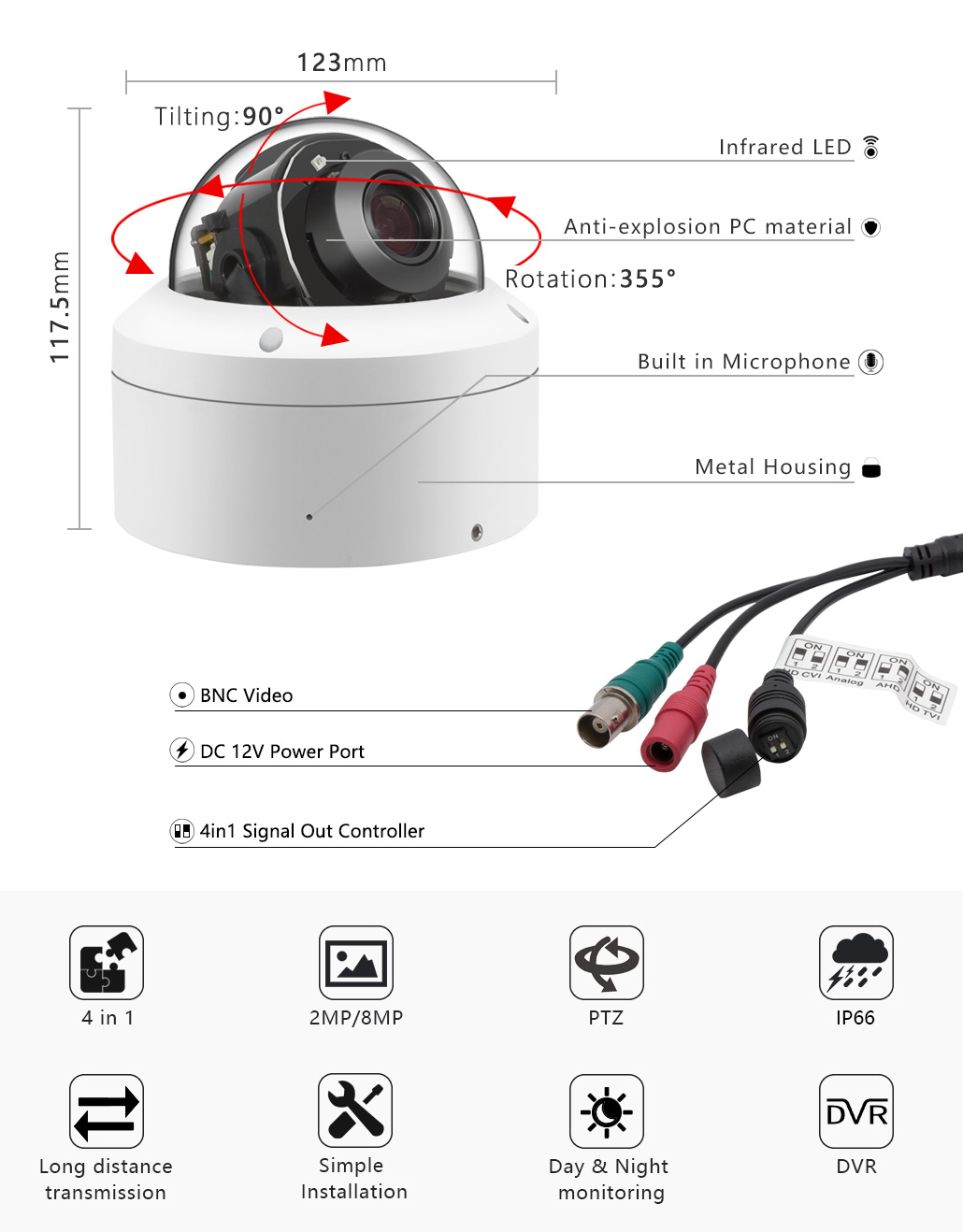

8MP 3X Motor Len 4in1 TVICCTV Analogs PTZ Camera Besview
BC-TP308ERW-F8B0
PTZ stands for pan/tilt movement in all directions (left and right/up and down) and lens zoom and zoom control. Usually this word is mentioned, and it can be understood as PTZ control in a popular way. Within the scope of the scene monitored by the camera, when a moving target appears, the user can control the camera to rotate up, down, left and right to track and lock the target. Some models can also provide the human tracking function, that is, people who appear in the target area are locked and automatically tracked until the target disappears. The PTZ tracking module makes up for the shortcomings of the narrow view of the fixed camera monitoring, and is a necessary function for a complete security monitoring system.
| Image Sensor: | 1/1.8'' OV08A10 Sensor |

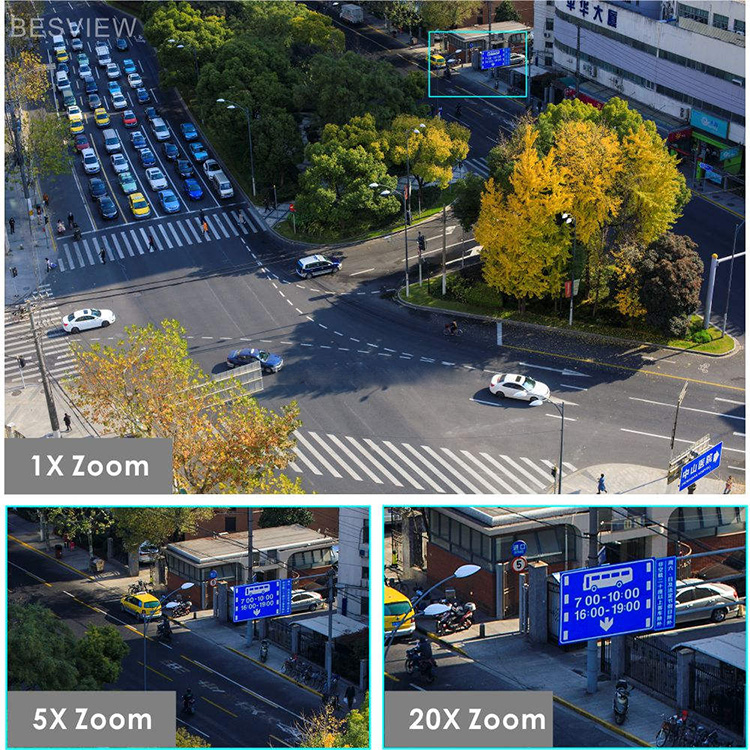

| Built-in Lens: | 3X 3.6-11mm Motor Len |
| Signal System: | PAL/NTSC |
| Horizontal Resolution | PAL:3840X2160P 15F/S NTSC:3840X2160P 12.5F/S |
| Sync. System: | Internal Sync. |

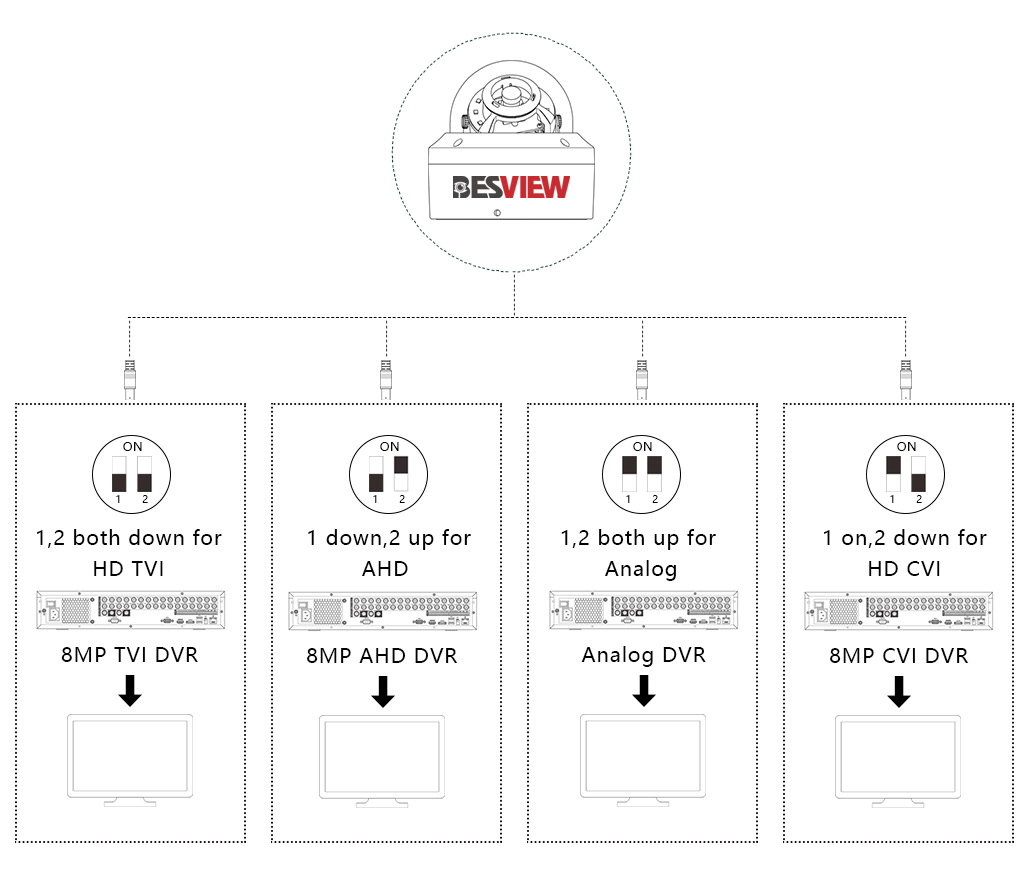

| Video Output: | TVI / CVI / AHD / CVBS 4in1 Switching Signal Output/1.0Vp~p75Ω |
| OSD Functions: | WDR/Sense-up/3D NR Functions etc. |
| S/N Ratio: | More than 50dB (AGC OFF) |
| White Balance: | Auto Tracking White Balance |
| Shutter Speed: | 1/25~1/50,000Sec. |
| Illumination for Infrared Switching: | 3 Lux |
| Infrared Wavelength: | 850nm |
| Mimimum Illumination: | 0Lux(Infrared Lamps Turn on) |
| IR Leds: | 2pcs SMT IR LED IR |
| IR Radiation Distance: | 35m |
| Weather-proof: | IP66 |
| Working Temperature: | -10℃~50℃ |
| Storage Temperature: | -20℃~60℃ |
| Power Requirement: | DC12V, Max Power Comsumption Less Than 12W (When the infrared lamps turn on) |
| Dimensions(D×H) | 4.4inch×4.7inch |
| Weight: | 0.85kg |
