5MP Smoke Detection Solution Hidden Camera CCTV IP Camera

BC-IM31570W-M5CN

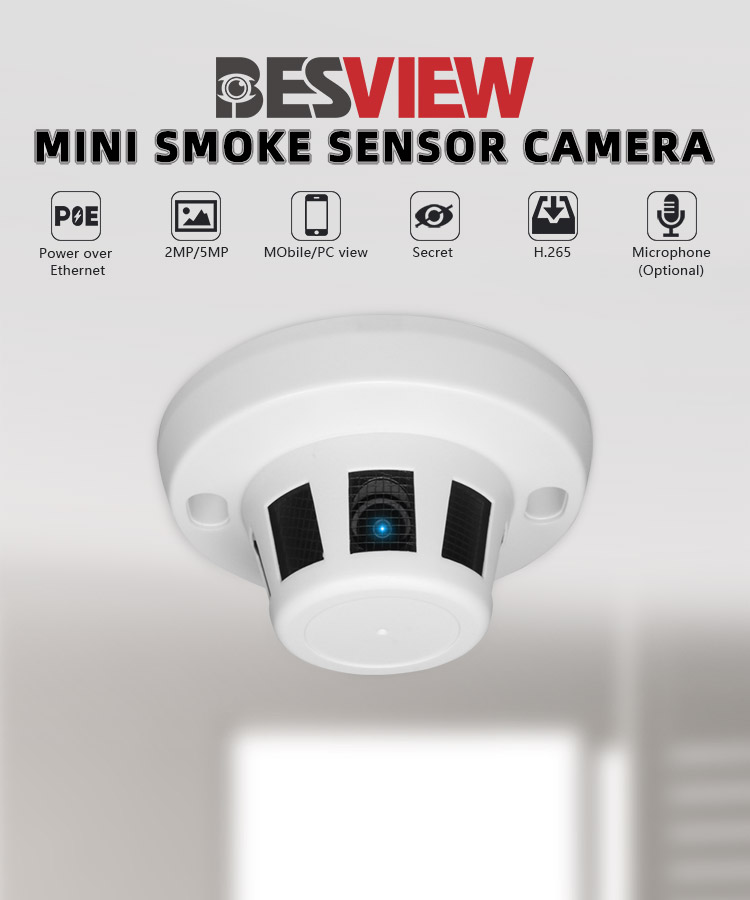

The smoke camera is a kind of concealed camera with complete functions. Its appearance is the shape of a smoke detector. It is generally difficult to recognize, and it is mainly used for concealment. It is mostly used in more sensitive places, in order not to arouse the disgust of guests.
Contact Now
Image    Sensor:1/2.8''Sony335 2MP CMOS
Signal System:PAL/NTSC
Min. Illumination:Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR
Shutter Time:1/25 s to 1/100,000 s
Lens:3.7mm    Pinhole Lens
Image Enhancement:BLC/3D    DNR/D-WDR
Motion DetectionSupport
Privacy ProtectionSupport(4    Self-customized Areas)
Water-Proof:/
Compression Standard

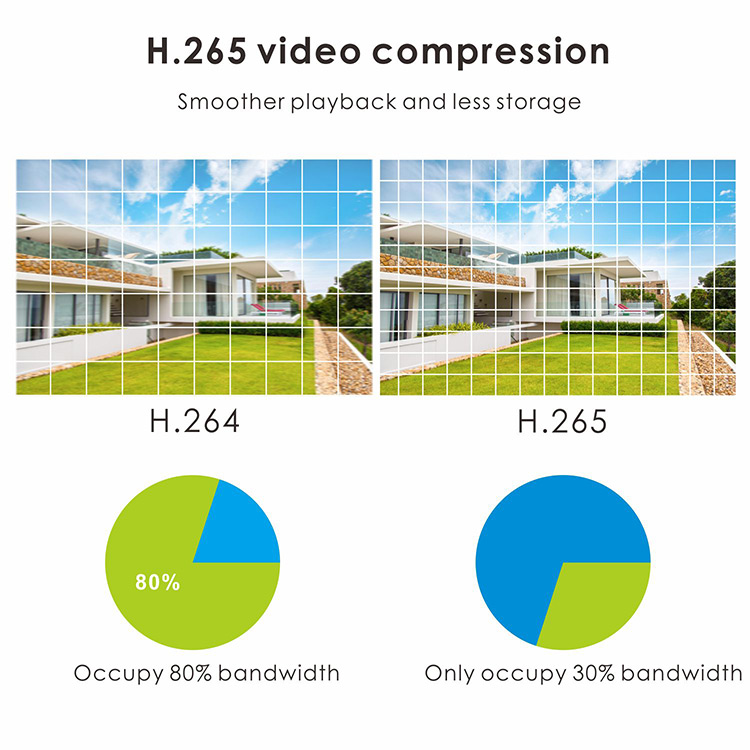

Video Compression:H.265/H.264/MJPEG
Video Bit Rate:32Kbps~12288Kbps(CBR/VBR    Selectable)
Audio Compression:G711U/G711A
Dual Streams:Yes
Triple Streams:No
Max. Image Resolution:2592*1944@25fps(5MP)
Frame Rate:50/60Hz:    Max.: 2592*1944@25fps
Sub Stream:50Hz/60Hz: Max. (800*488/704*576/640*360/352*288)@25fps
Third Stream(Mobile Stream):/
Image Settings:3D    NR, D-WDR, Image    Flip, Saturation, Brightness, Contrast, Sharpness
     adjustable via client software, web browser or    Smartphone App
Day/Night Switch:Auto(Passive    Mode)/Day/Night/Auto(Active Mode)/Time
Network
Network Protocols:HTTP,    TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE,RTMP, DDNS,    IP Search(Support Danale IP camera, DVR, NVS etc.)
General Function:Anti-Flicker, heartbeat, password protection, privacy    mask, Watermark

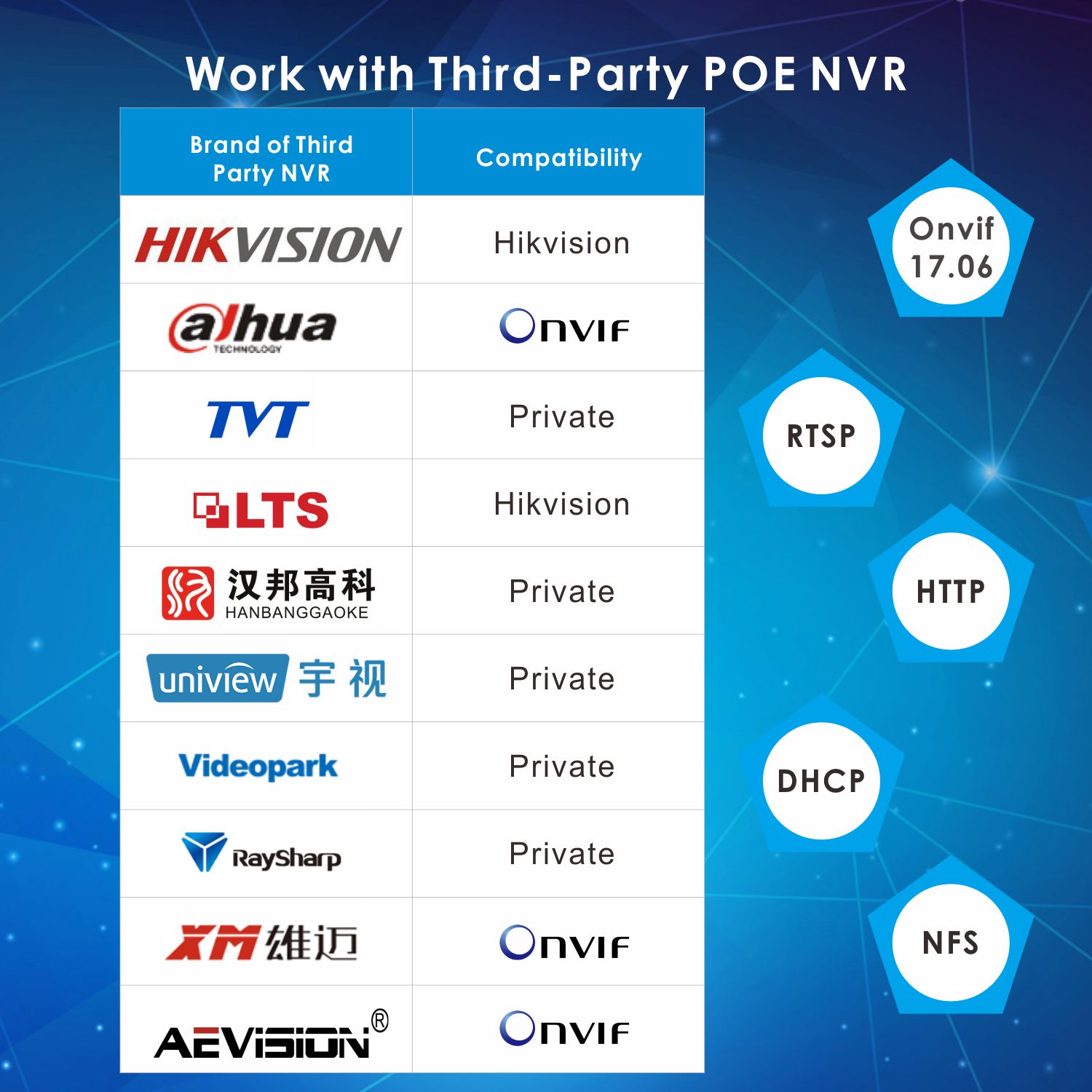

System Compatibility:ONVIF(17.06 ) profile S/Danale(P2P)
On-line ViewingMax.    Support 6 Users Simultaneously
Interface
Communication Interface:1 RJ45 10M / 100M Ethernet Interface
RCA Audio Interface:RCA    Audio input/output  Interface    (Optional)
DC Power Plug:DC    Power Female Interface
General
Operating Conditions:-10 °C ~ 60 °C
Humidity 95% or less (non-condensing)
Power Supply:12 V    DC ± 10%/PoE(Optional)
Power Consumption:12 VDC ± 10%, Max    Power Comsumption Less than 8W
     (When the infrared lamps turn on)

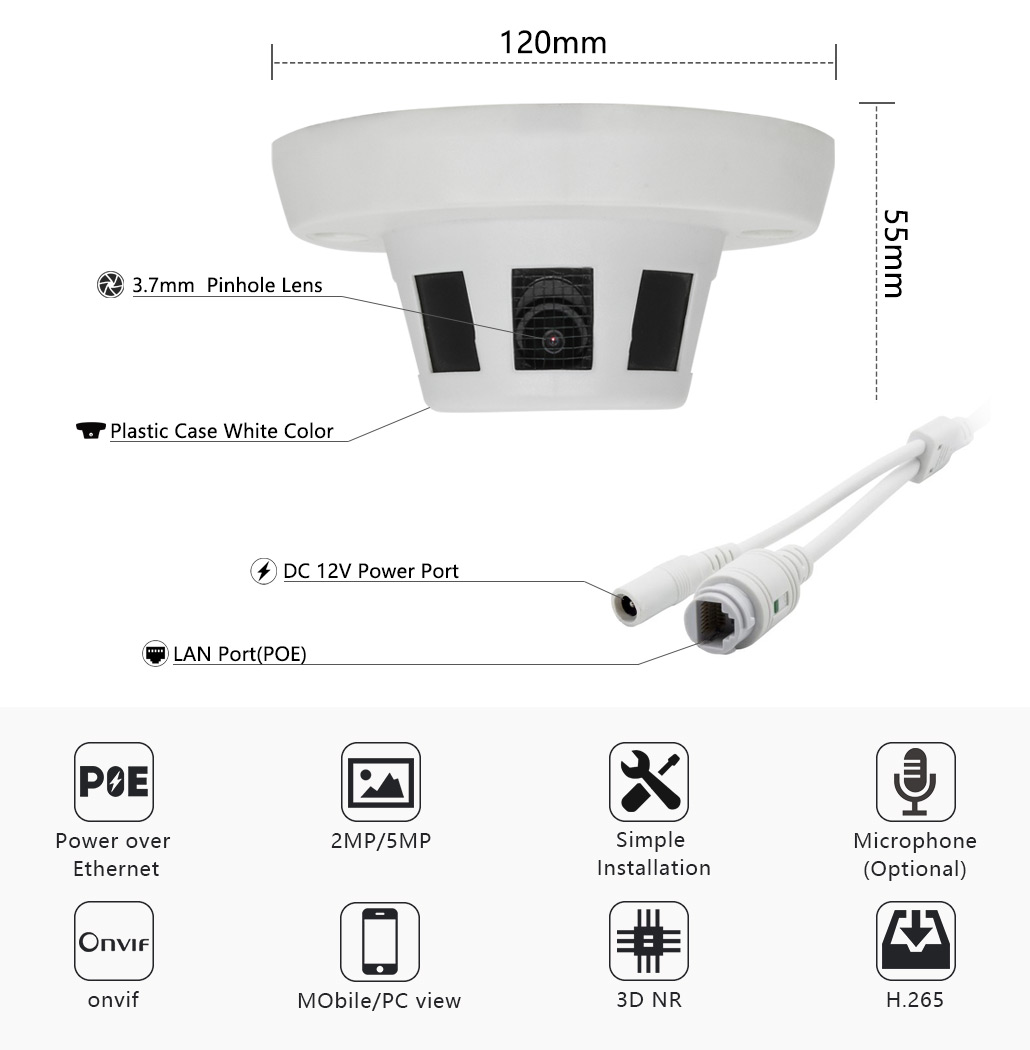

Dimensions(D×H)120mm×55mm
Weight:0.15KG
