4MP Waterproof POE IR IP Camera Surveillance Sstem CCTV Besview
BC-IE213RW-4M6

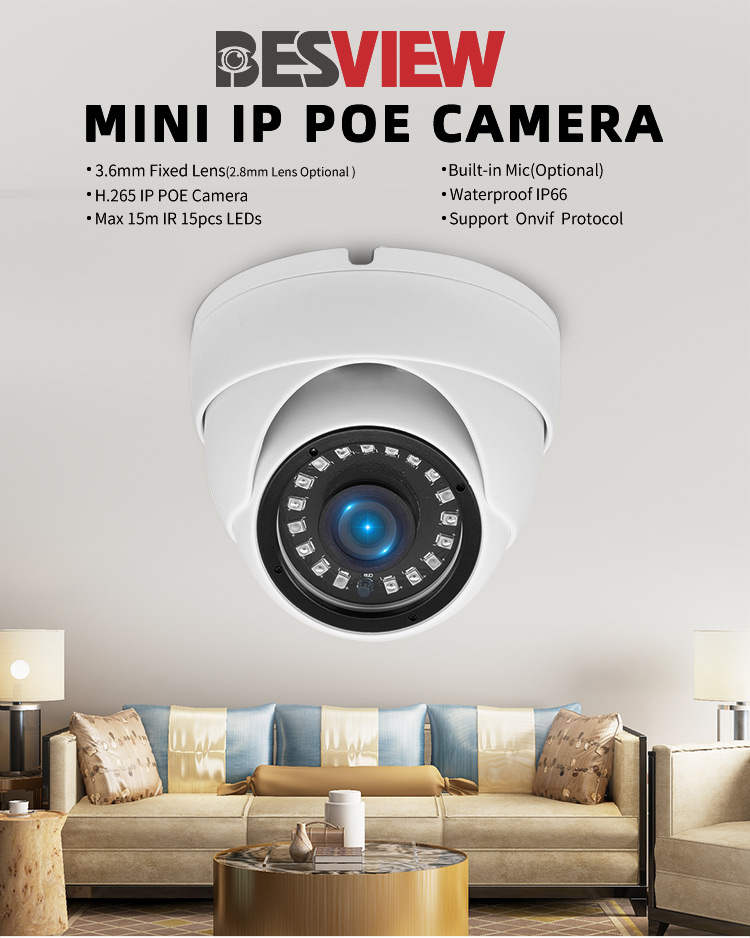

• H.265/H.264 4MP IP/Network IR Small Eyeball Dome Camera
• Up to 4 megapixel high resolution
• Max. 2560*1440@25fps(50Hz/60Hz)
• Support RTSP&Onvif(17.2 with profile S)
Compatible with many third-party NVRs and CMS
• Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT,
D-WDR,Mirror, Image Flip etc. Functions
• 3.6mm fixed lens
• IR range: up to 15m
• Water-proof: IP66
• Up to 4 megapixel high resolution
• Max. 2560*1440@25fps(50Hz/60Hz)
• Support RTSP&Onvif(17.2 with profile S)
Compatible with many third-party NVRs and CMS
• Day/Night, AWB/MWB,BLC, 3D-DNR,Shutter, IR-CUT,
D-WDR,Mirror, Image Flip etc. Functions
• 3.6mm fixed lens
• IR range: up to 15m
• Water-proof: IP66
Quantity:
| Image Sensor: | 1/3'' Cmos Sensor |
| Signal System: | PAL/NTSC |
| Min. Illumination: | Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter Time: | 1/25 s to 1/10,000 s |
| Lens: | 3.6mm fixed lens |
| Day&Night: | IR cut filter with auto switch |
| Image Enhancement: | BLC/3D DNR/D-WDR |
| Motion Detection | Support |
| Privacy Protection | Support(4 Self-customized Areas) |
| Wather-Proof: | IP66 |
| Illumination for Infrared Switching: | 1~5Lux |
| Infrared Wavelength: | 850nm |
| Mimimum Illumination: | 0 Lux(IR ON) |
| IR Range: | 18PCS LEDS//15m IR |
| Compression Standard | |

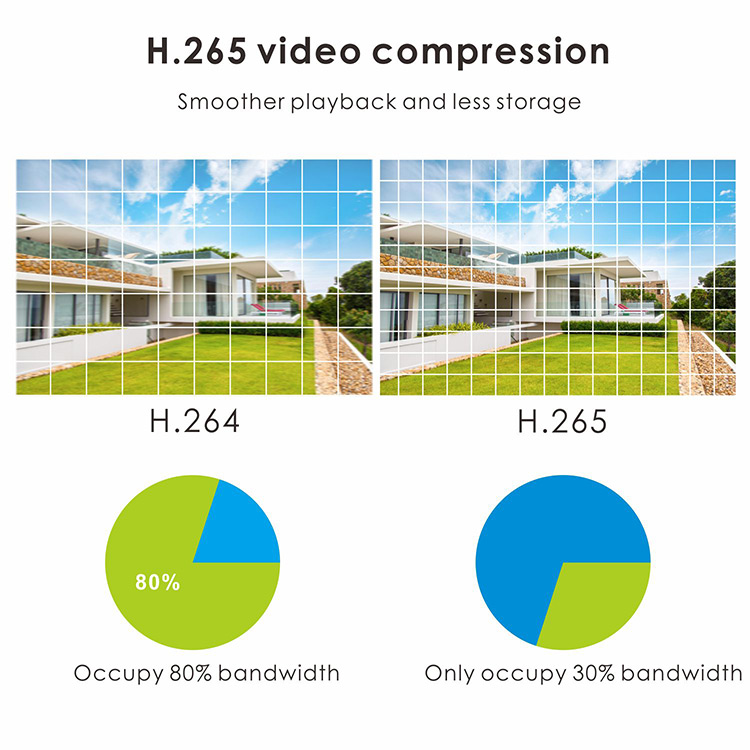

| Video Compression: | H.265/H.264 |
| Video Bit Rate: | 512Kbps~6144Kbps(main stream H.265) 64kbps~2048Kbps(sub stream H.265) |
| Audio Compression: | G711U/G711A |
| Dual Streams: | Yes |
| Triple Streams: | No |
| Image | |
| Max. Image Resolution: | 2560*1440@25fps(4MP) |
| Frame Rate: | 25fps(4MP).MAX main stream 25fps（D1) .MAX sub stream |
| Image Settings: | 3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App |
| Day/Night Switch: | EXT/Day/Night/Auto/Time |
| Audio | |
| Line IN/line OUT： | Support（1ch） |
| Build-in MIC： | Optional |
| Volnume adject： | Yes |
| Network | |
| Network Protocols: | HTTP, TCP/IP, IPv4/v6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS,IP Search(Support P2P, NVR, NVS etc.) |
| System Compatibility: | ONVIF(17.2 with profile S) |
| On-line Viewing | Max. Support 2 Users Simultaneously |
| Interface | |
| Communication Interface: | 1 RJ45 10M / 100M Ethernet Interface |
| RCA Audio Interface: | RCA Audio input/output Interface (Optional) |
| Alarm in/out interface： | Support（1ch） （Optional） |
| DC Power Plug: | DC Power Femate Interface |
| General | |
| Operating Conditions: | -10 °C ~ 60 °C |
| Humidity 95% or less (non-condensing) | |
| Power Supply: | 12 V DC ± 10%/PoE(Optional) |
| Power Consumption: | 12 VDC ± 10%, Max Power Comsumption Less than 8W (When the infrared lamps turn on) |
| Weight: | 0.35KG |
