2MP Pinhole Lens Fire Smoke Detector Alarm Analog Camera
BC-TM31270WP-HFB0
The smoke camera is a kind of concealed camera with complete functions. Its appearance is the shape of a smoke detector. It is generally difficult to recognize, and it is mainly used for concealment. It is mostly used in more sensitive places, in order not to arouse the disgust of guests.
Quantity:
| Image Sensor: | 1/2.9'' Cmos Sensor |
| Built-in Lens: | 3.7mm Pinhole Lens (2.8mm Pinhole Lens Optional ) |
| Signal System: | PAL/NTSC |
| Horizontal Resolution | PAL:1920X1080P 25F/S NTSC:1920X1080P 30F/S |
| Sync. System: | Internal Sync. |

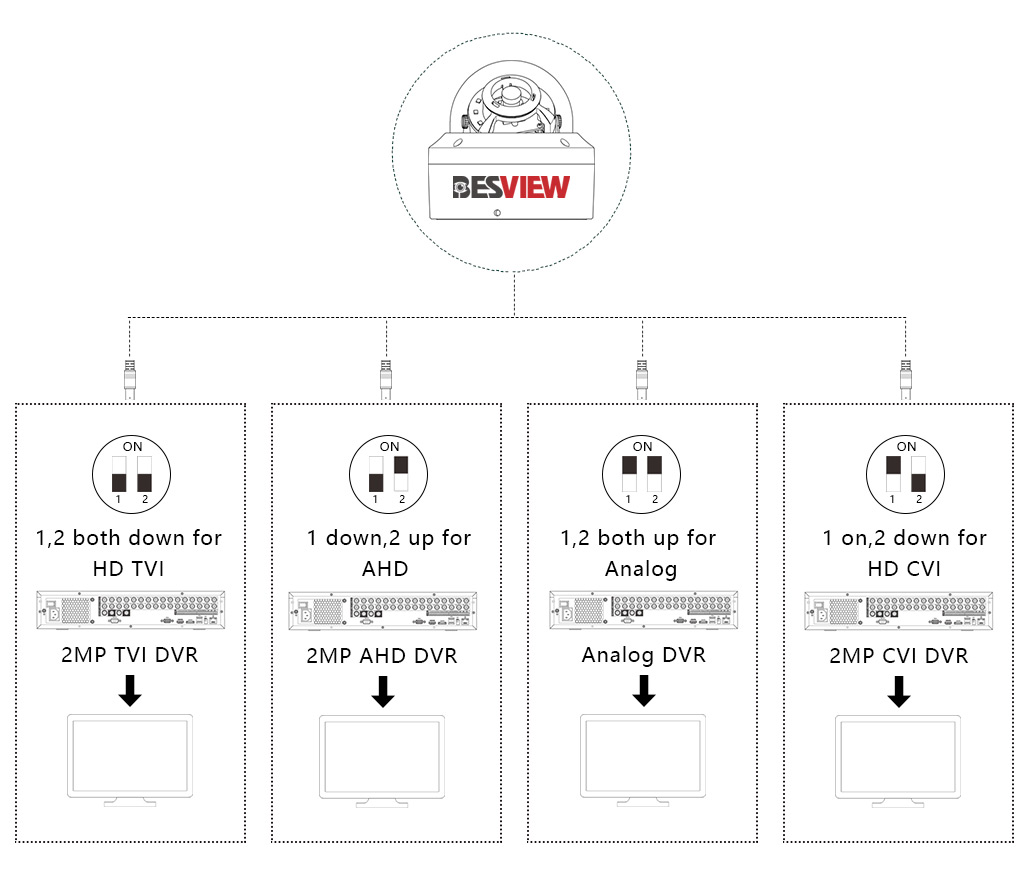

| Video Output: | TVI / CVI / AHD / CVBS 4in1 Switching Signal Output/1.0Vp~p75Ω |
| OSD Functions: | D-WDR/Sense-up/3D NR Functions etc. |
| S/N Ratio: | More than 50dB (AGC OFF) |
| White Balance: | Auto Tracking White Balance |
| Shutter Speed: | 1/25~1/50,000Sec. |
| Illumination for Infrared Switching: | 3 Lux |
| Infrared Wavelength: | 850nm |
| Mimimum Illumination: | 0Lux(Infrared Lamps Turn on) |
| Working Temperature: | -10℃~50℃ |
| Storage Temperature: | -20℃~60℃ |
| Power Requirement: | DC12V, Max Power Comsumption Less Than 12W (When the infrared lamps turn on) |

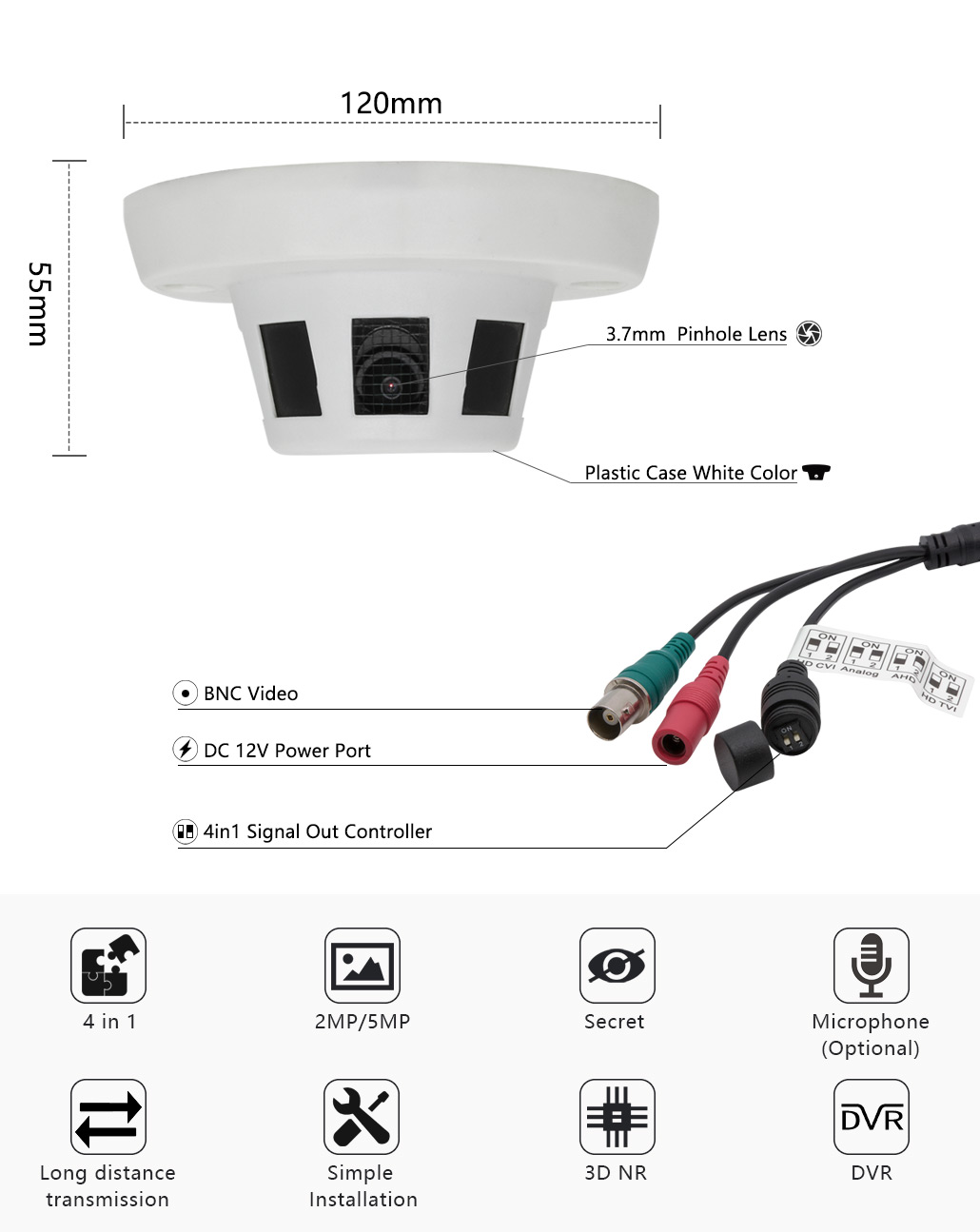

| Dimensions(W×H) | 120mm×55mm |
| Weight: | 0.15kg |
