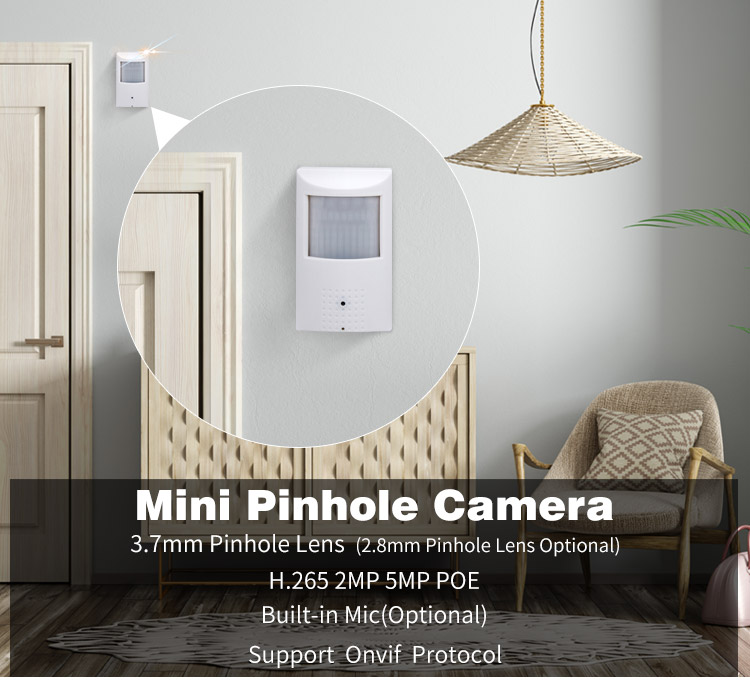

2MP Mini Spy POE 3.7mm Lens CCTV Hidden Camera

BC-IM21270W-MSCN

The appearance is small and exquisite, it can be installed in a narrow space, and it is easy to carry and concealed installation. There are many places for small-size installations, such as shop windows, summer vacations, even books, and hidden grids on the walls. These are all places that can be installed at home. Protect the installation of family and property to prevent the arrival of uninvited guests. Most people don’t want their mini cameras to be identified in order to achieve mini cameras to be identified in order to achieve the purpose of investigating evidence and recording of the crimes.

Quantity:

Contact Now

Image Sensor:	1/2.8'' Sony307 2MP CMOS
Signal System:	PAL/NTSC
Min. Illumination:	Color: 0.05lux @(F1.2, AGC ON), 0 lux with IR
Shutter Time:	1/25 s to 1/100,000 s
Lens:	3.7mm Pinhole Lens
Image Enhancement:	BLC/3D DNR/D-WDR
Motion Detection	Support
Privacy Protection	Support(4 Self-customized Areas)
Wather-Proof:	/
Compression Standard

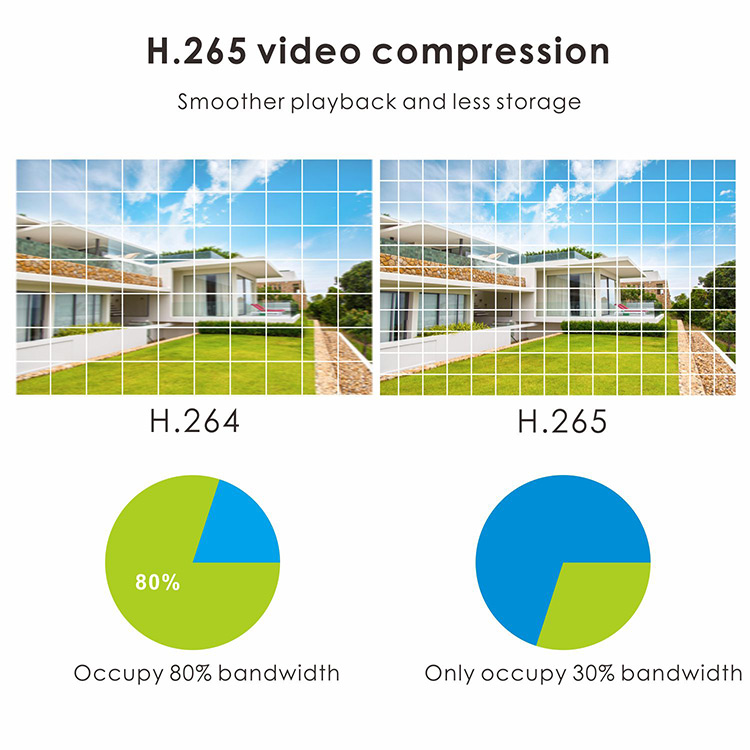

Video Compression:	H.265/H.264/MJPEG
Video Bit Rate:	32Kbps~12288Kbps(CBR/VBR Selectable)
Audio Compression:	G711U/G711A
Dual Streams:	Yes
Triple Streams:	No
Max. Image Resolution:	1920*1080@30fps(2MP)
Frame Rate:	50/60Hz: Max.: 1920*1080@30fps
Sub Stream:	50Hz/60Hz: Max. (800488/704576/640360/352288)@25fps/30fps
Third Stream(Mobile Stream):	/

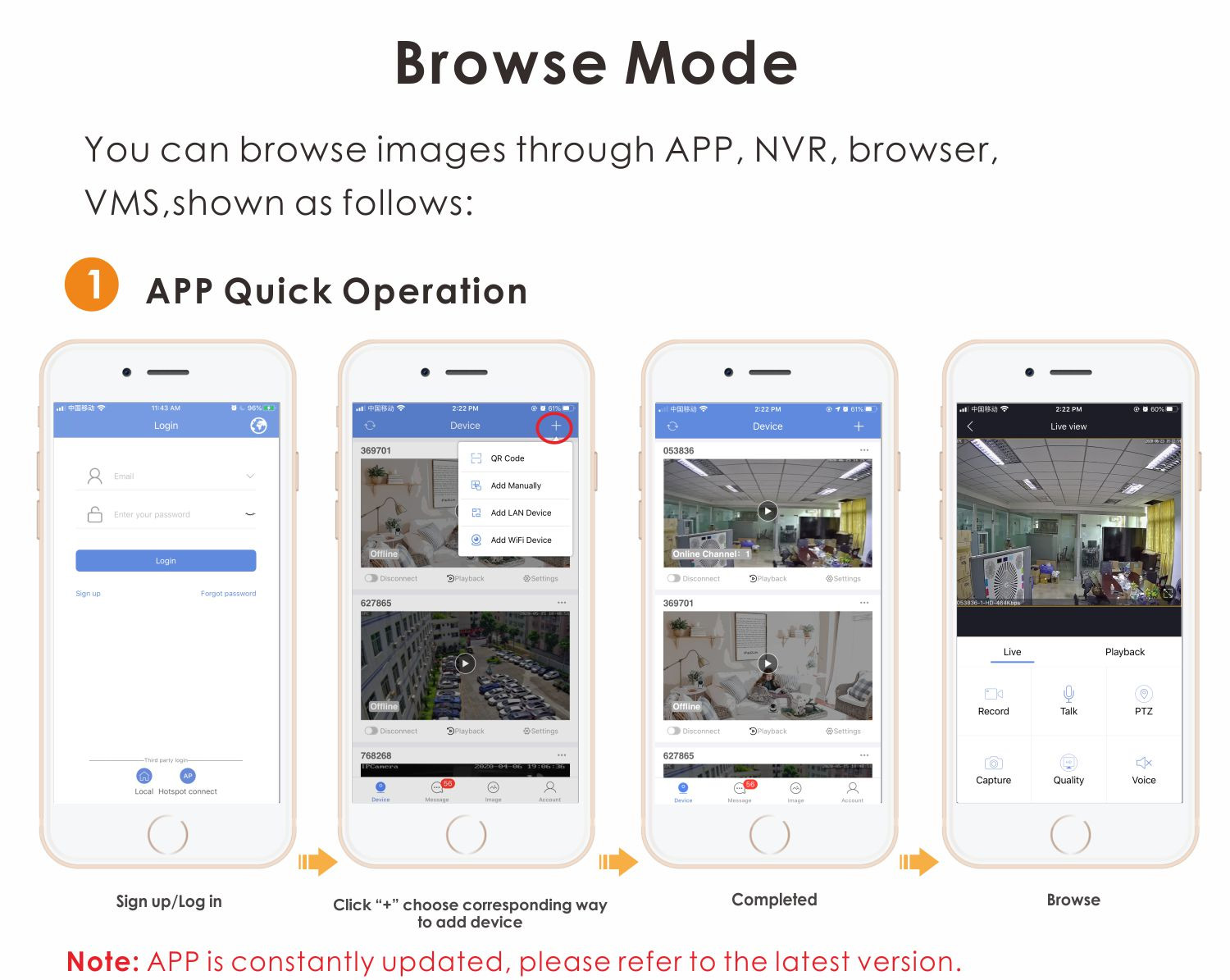

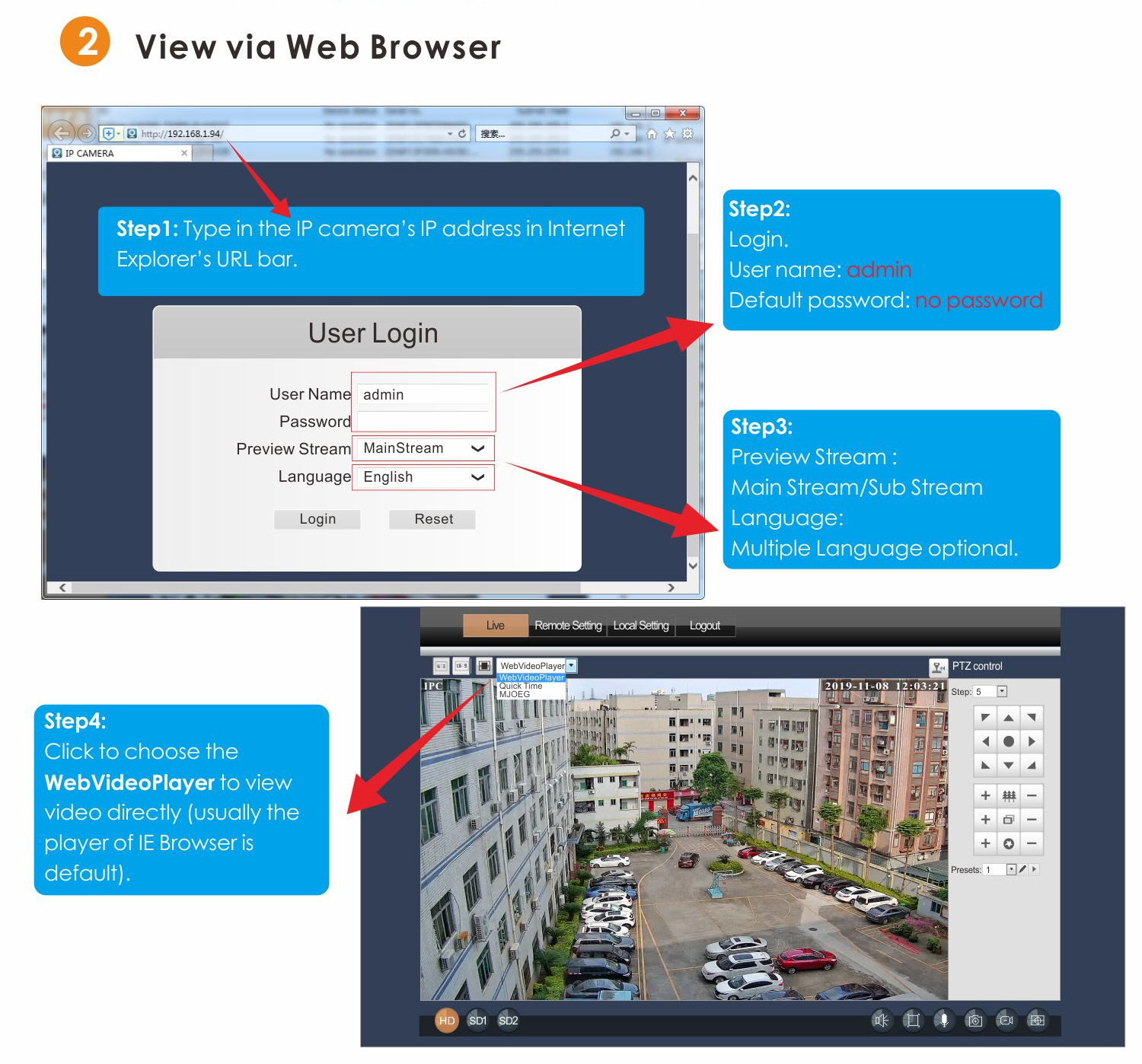

Image Settings:	3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App
Day/Night Switch:	Auto(Passive Mode)/Day/Night/Auto(Active Mode)/Time
Network
Network Protocols:	HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, IP Search(Support Danale IP camera, DVR, NVS etc.)
General Function:	Anti-Flicker, heartbeat, password protection, privacy mask, Watermark

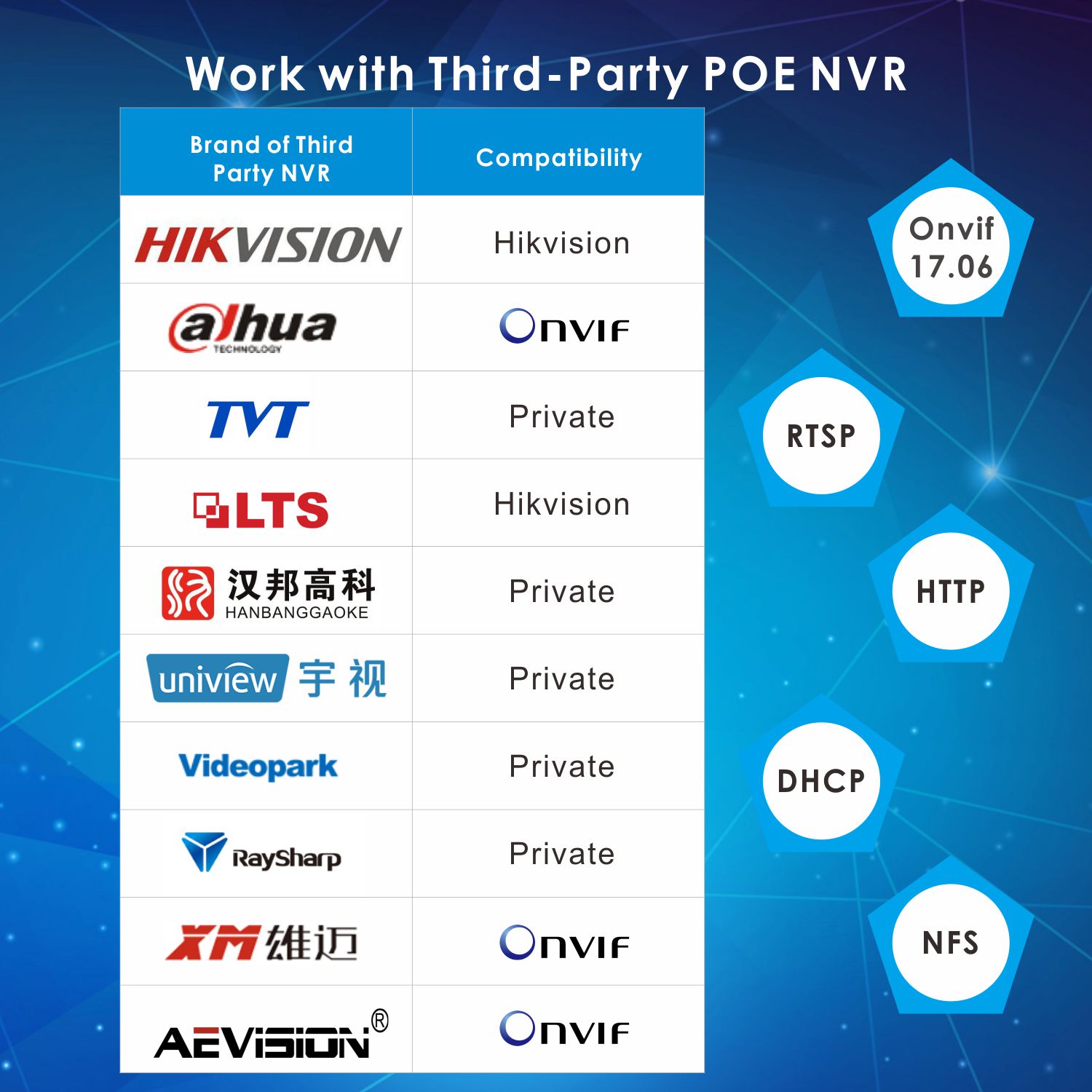

System Compatibility:	ONVIF(17.06 ) profile S/Danale
On-line Viewing	Max. Support 6 Users Simultaneously
Interface

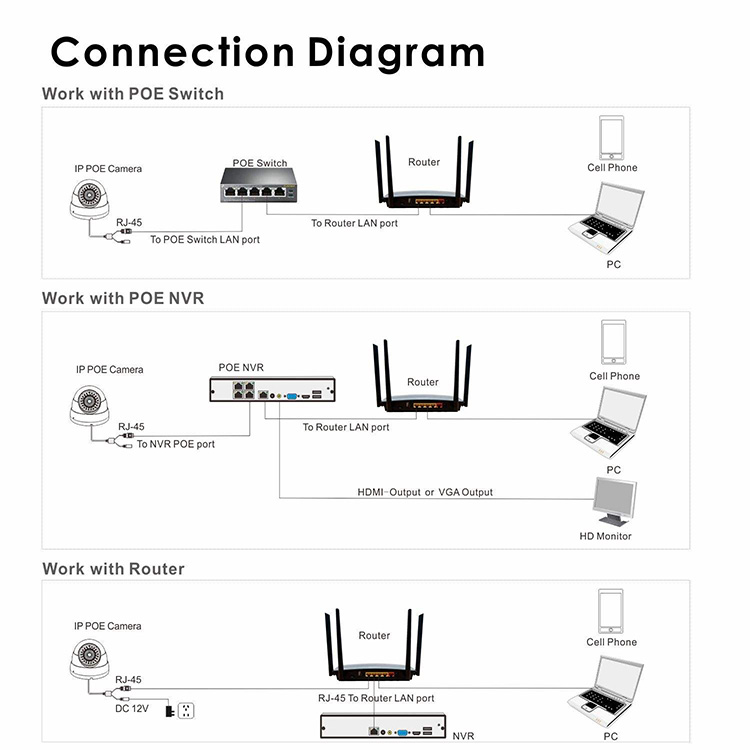

Communication Interface:	1 RJ45 10M / 100M Ethernet Interface
RCA Audio Interface:	RCA Audio input/output Interface (Optional)
DC Power Plug:	DC Power Femate Interface
General
Operating Conditions:	-10 °C ~ 60 °C
Operating Conditions:	Humidity 95% or less (non-condensing)
Power Supply:	12 V DC ± 10%/PoE(Optional)
Power Consumption:	12 VDC ± 10%, Max Power Comsumption Less than 8W (When the infrared lamps turn on)

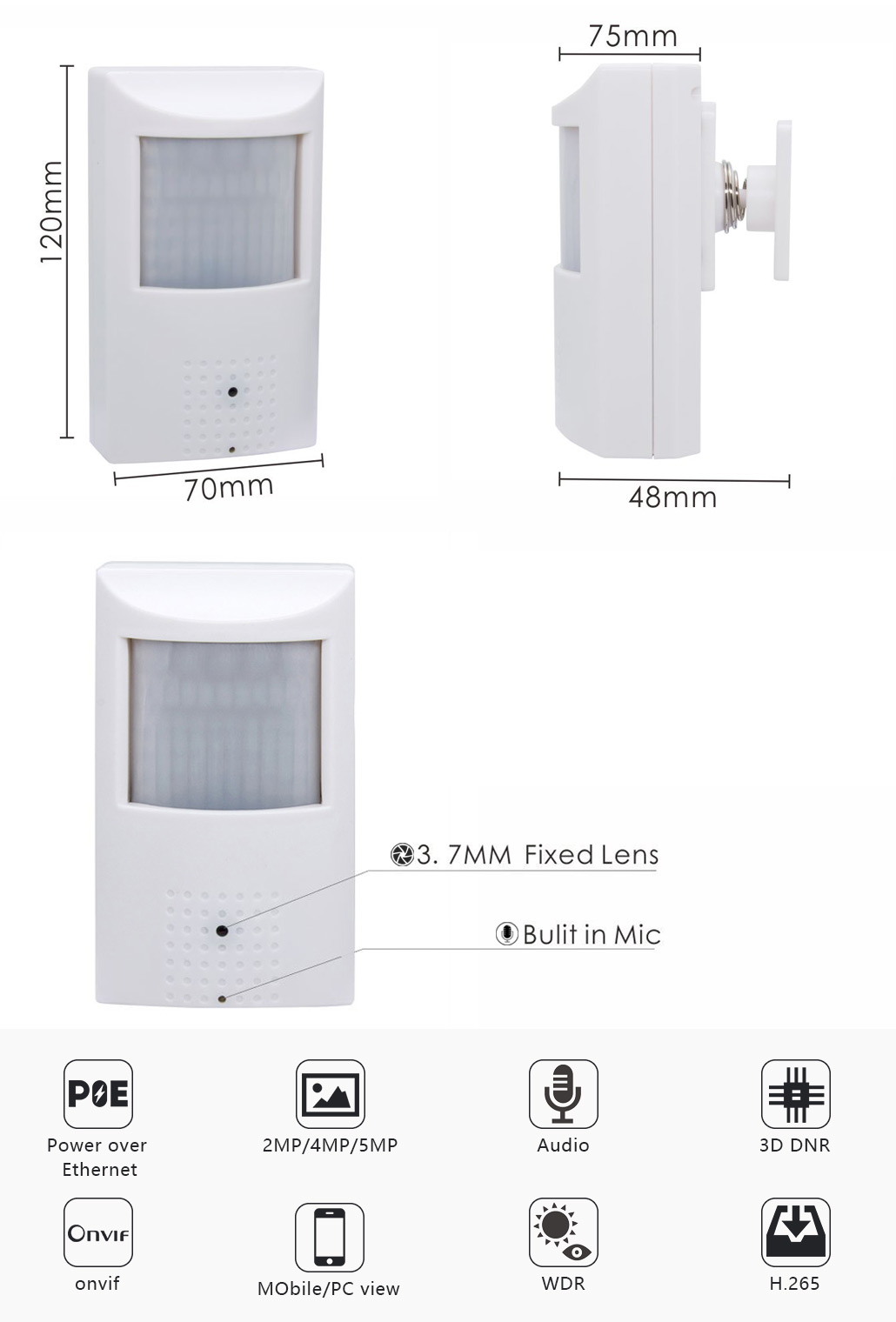

Dimensions(W×D×H)	70mm×48mm×120mm
Weight:	0.18KG
