2MP IP POE Dual-Light 3.6mm F1.6 Lens IP66 CCTV Camera Besview

BC-IB6623DW-MSCN

Smart dual-light monitoring means that the camera has two control modes of supplementary light (white light and infrared) at the same time, and it can be set to work in one or two supplementary light modes. The role of the smart dual-light mode in the surveillance camera is reflected in the aspect of alarm or convenience. Under normal circumstances, the camera turns on the infrared light at night and the image is black and white. When a humanoid detection or motion detection alarm occurs, the camera will switch to white light mode to illuminate the monitoring environment, and the image will switch to color, which will illuminate passersby, but for criminals, it is a deterrent and warning.

Contact Now

Image Sensor:	1/2.8'' Sony307 2MP CMOS
Signal System:	PAL/NTSC
Min. Illumination:	Color: 0.05lux @(F1.6, AGC ON), 0 lux with IR
Shutter Time:	1/25 s to 1/100,000 s
Lens:	3.6mm F1.6 fixed lens
Day&Night:	Dual Light(White Light+IR LED Light) with auto switch
Image Enhancement:	BLC/3D DNR/D-WDR
Motion Detection	Support
Privacy Protection	Support(4 Self-customized Areas)
Wather-Proof:	IP66
Illumination for Infrared Switching:	0.5~3Lux
Infrared Wavelength:	850nm
Mimimum Illumination:	0 Lux(IR ON)
IR Range:	/
Compression Standard
Video Compression:	H.265/H.264/MJPEG
Video Bit Rate:	32Kbps~12288Kbps(CBR/VBR Selectable)
Audio Compression:	G711U/G711A
Dual Streams:	Yes
Triple Streams:	No
Max. Image Resolution:	1920*1080@30fps(2MP)
Frame Rate:	50/60Hz: Max.: 1920*1080@30fps
Sub Stream:	50Hz/60Hz: Max. (800488/704576/640360/352288)@30fps
Third Stream(Mobile Stream):	/

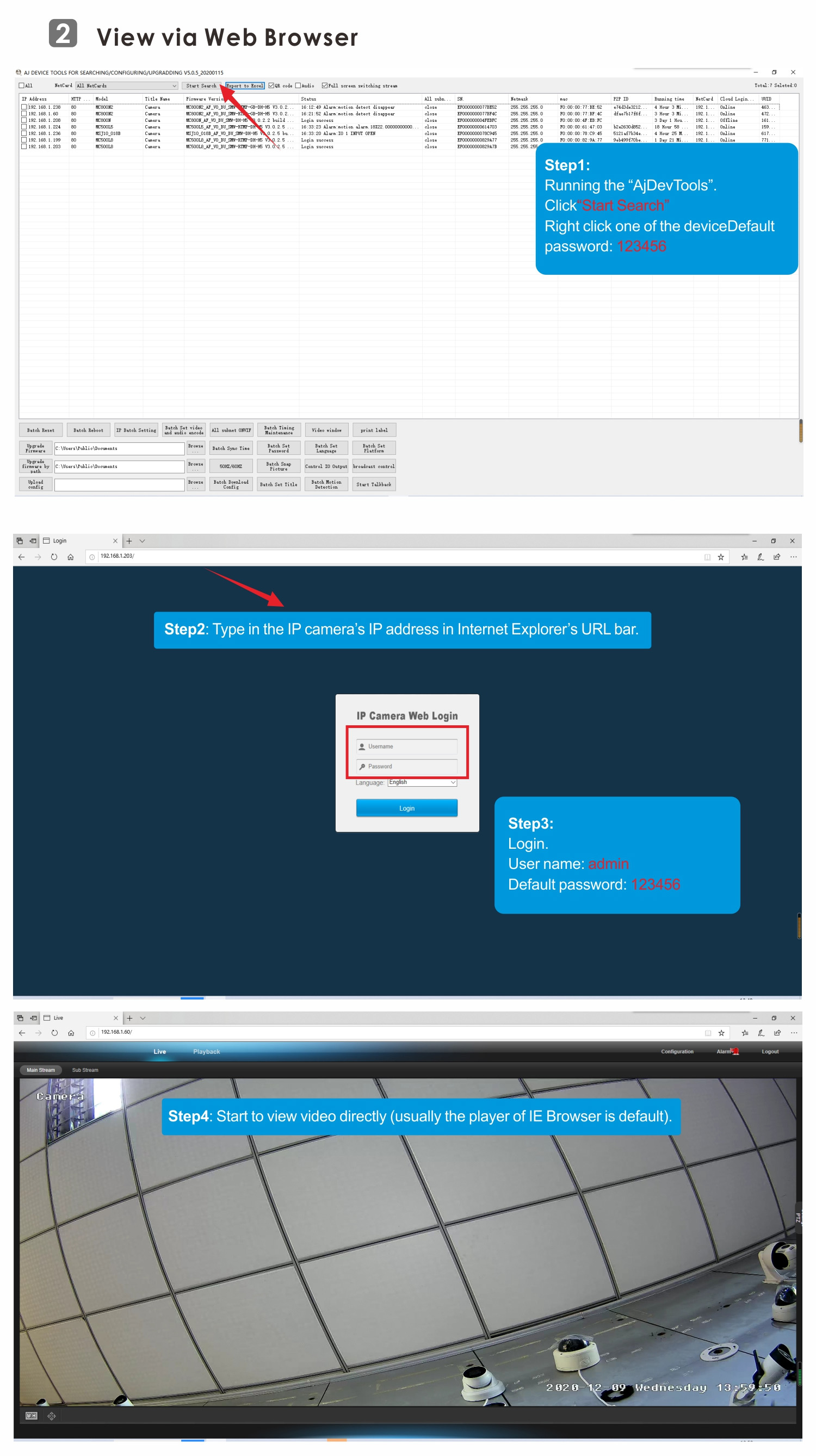

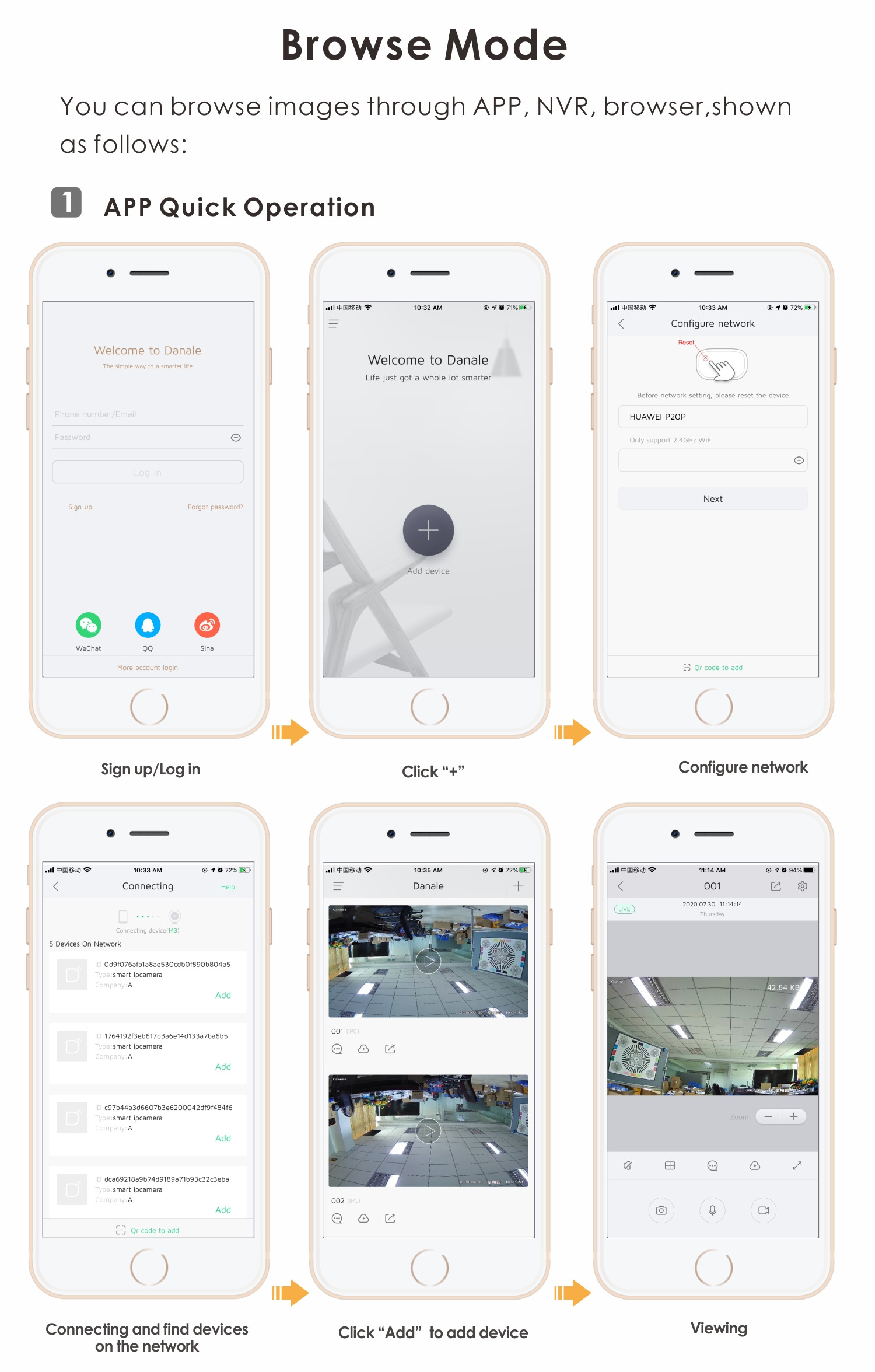

Image Settings:	3D NR, D-WDR, Image Flip, Saturation, Brightness, Contrast, Sharpness adjustable via client software, web browser or Smartphone App
Day/Night Switch:	Auto(Passive Mode)/Day/Night/Auto(Active Mode)/Time
Network
Network Protocols:	HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, IP Search(Support Danale IP camera, DVR, NVS etc.)
General Function:	Anti-Flicker, heartbeat, password protection, privacy mask, Watermark

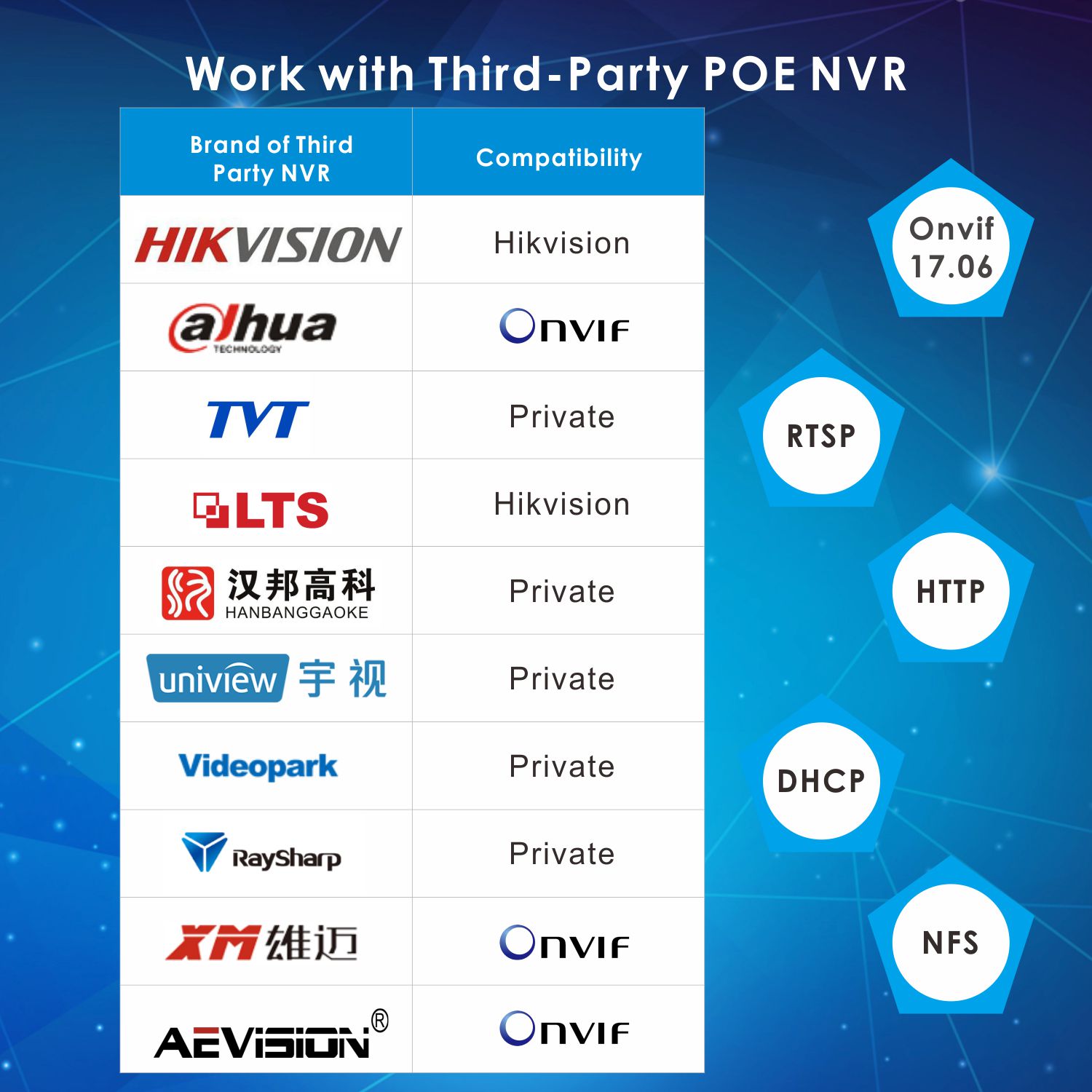

System Compatibility:	ONVIF(17.06 ) profile S/Danale
On-line Viewing	Max. Support 6 Users Simultaneously
Interface

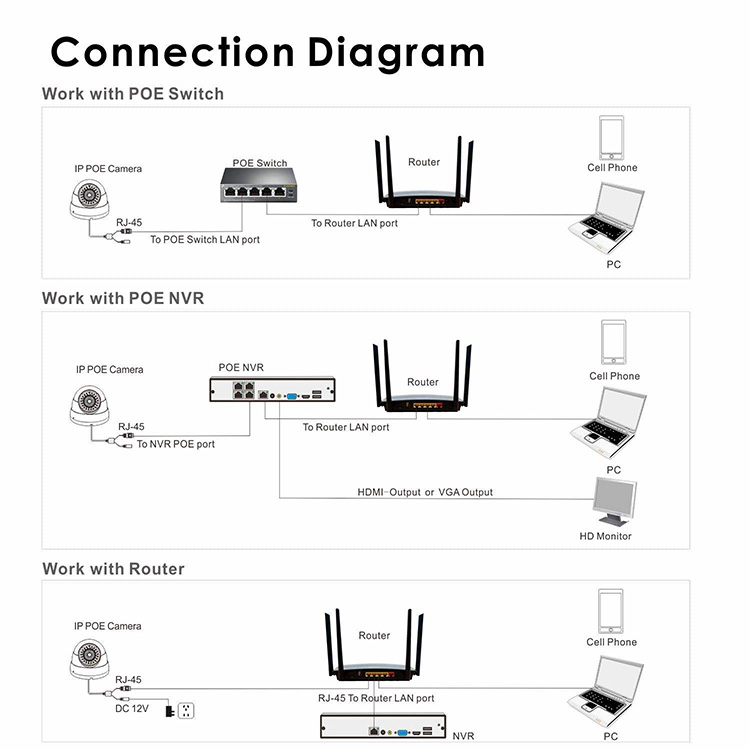

Communication Interface:	1 RJ45 10M / 100M Ethernet Interface
RCA Audio Interface:	RCA Audio input/output Interface (Optional)
DC Power Plug:	DC Power Femate Interface
General
Operating Conditions:	-10 °C ~ 60 °C
Operating Conditions:	Humidity 95% or less (non-condensing)
Power Supply:	12 V DC ± 10%/PoE(Optional)
Power Consumption:	12 VDC ± 10%, Max Power Comsumption Less than 8W (When the infrared lamps turn on)

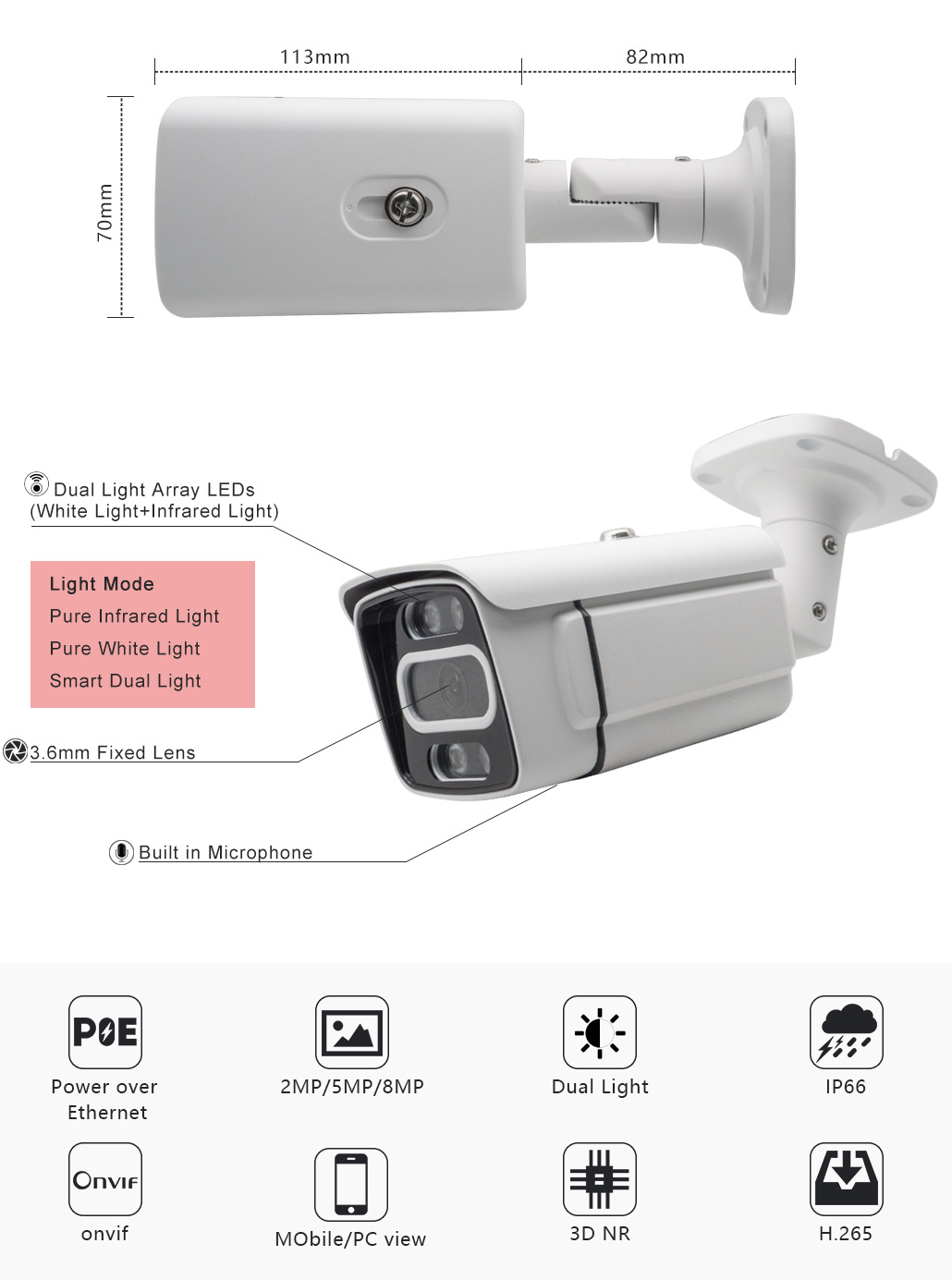

Dimensions(W×D×H)	195mm×70mm×63mm
Weight:	0.45KG
