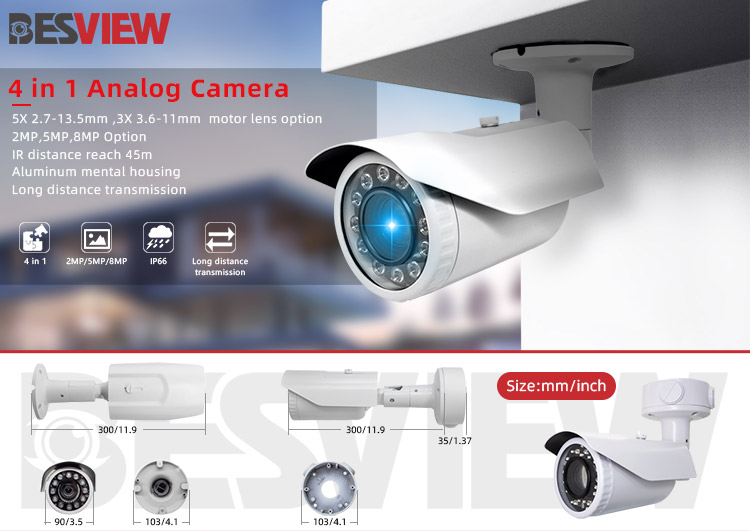

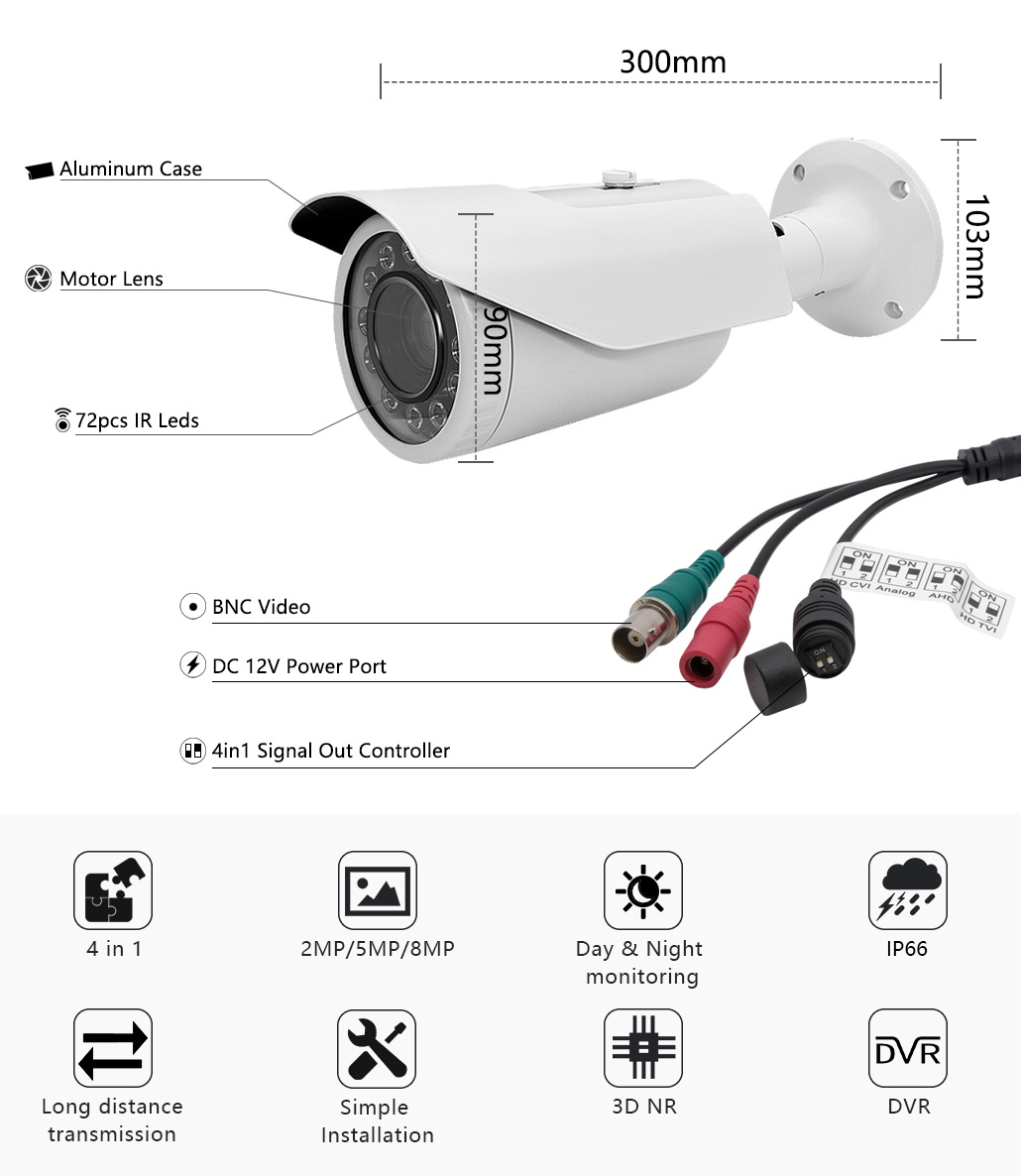

2MP 5X Motor Lens 4in1 Analog CCTV Camera Besview
BC-TB922DRWP-87B0
The IP box camera adopts full digital processing technology and will not cause loss of image quality due to the conversion between analog and digital. The zoom range of the box camera can reach up to 5X, which can realize long-distance monitoring, so the application range is very wide, and the camera is high-definition advanced imaging technology, high-definition fog function, infrared detection lock, day and night conversion infrared camera function, etc. have been widely used. It can effectively reduce image noise in low-light environments at night and improve the image quality.
| Image Sensor: | 1/2.8'' Sony307 Sensor |
| Built-in Lens: | 5X 2.7-13.5mm Motor Lens |
| Signal System: | PAL/NTSC |
| Horizontal Resolution | PAL:1920X1080P 25F/S NTSC:1920X1080P 30F/S |
| Sync. System: | Internal Sync. |

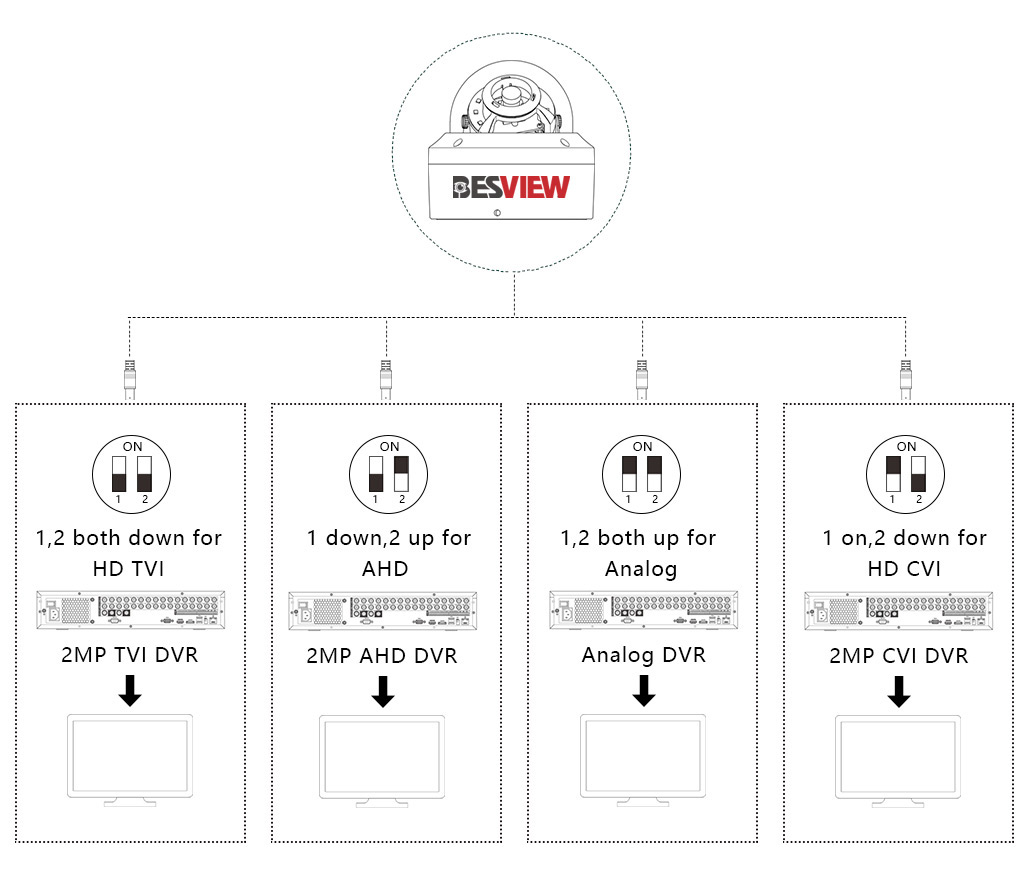

| Video Output: | TVI / CVI / AHD / CVBS 4in1 Switching Signal Output/1.0Vp~p75Ω |
| OSD Functions: | 3D NR/Sense-up/D-WDR Functions etc. |
| S/N Ratio: | More than 50dB (AGC OFF) |
| White Balance: | Auto Tracking White Balance |
| Shutter Speed: | 1/25~1/50,000Sec. |
| Illumination for Infrared Switching: | 3 Lux |
| Infrared Wavelength: | 850nm |
| Mimimum Illumination: | 0Lux(Infrared Lamps Turn on) |
| IR Leds: | 72pcs IR Leds |
| IR Radiation Distance: | 45m |
| Weather-proof: | IP66 |
| Working Temperature: | -10℃~50℃ |
| Storage Temperature: | -20℃~60℃ |
| Power Requirement: | DC12V, Max Power Comsumption Less Than 12W (When the infrared lamps turn on) |
| Dimensions(W×D): | 300mm×103mm |
| Weight: | 1.1KG |
