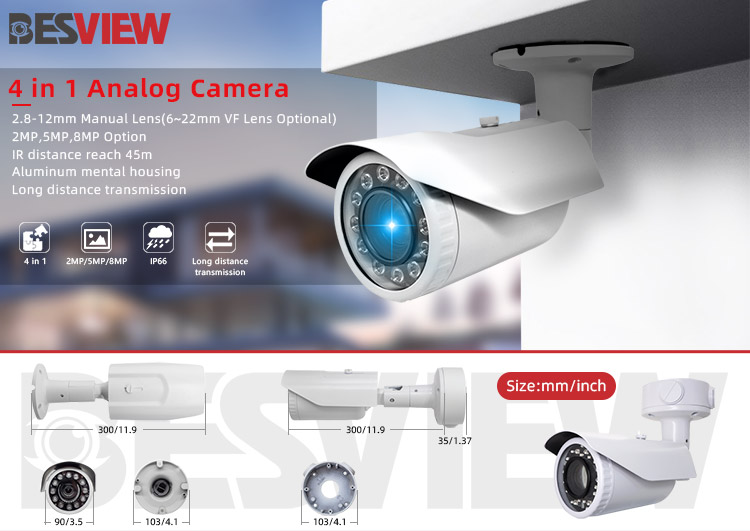

2MP 4in1 TVI Outdoor Home Security Analog Camer Besview
BC-TB9228SWP-HFB0
Quantity:
Product Description
| Image Sensor: | 1/2.9'' Cmos Sensor |
| Built-in Lens: | 2.8-12mm Manual Lens(6~22mm VF Lens Optional ) |
| Signal System: | PAL/NTSC |
| Horizontal Resolution | PAL:1920X1080P 25F/S NTSC:1920X1080P 30F/S |
| Sync. System: | Internal Sync. |

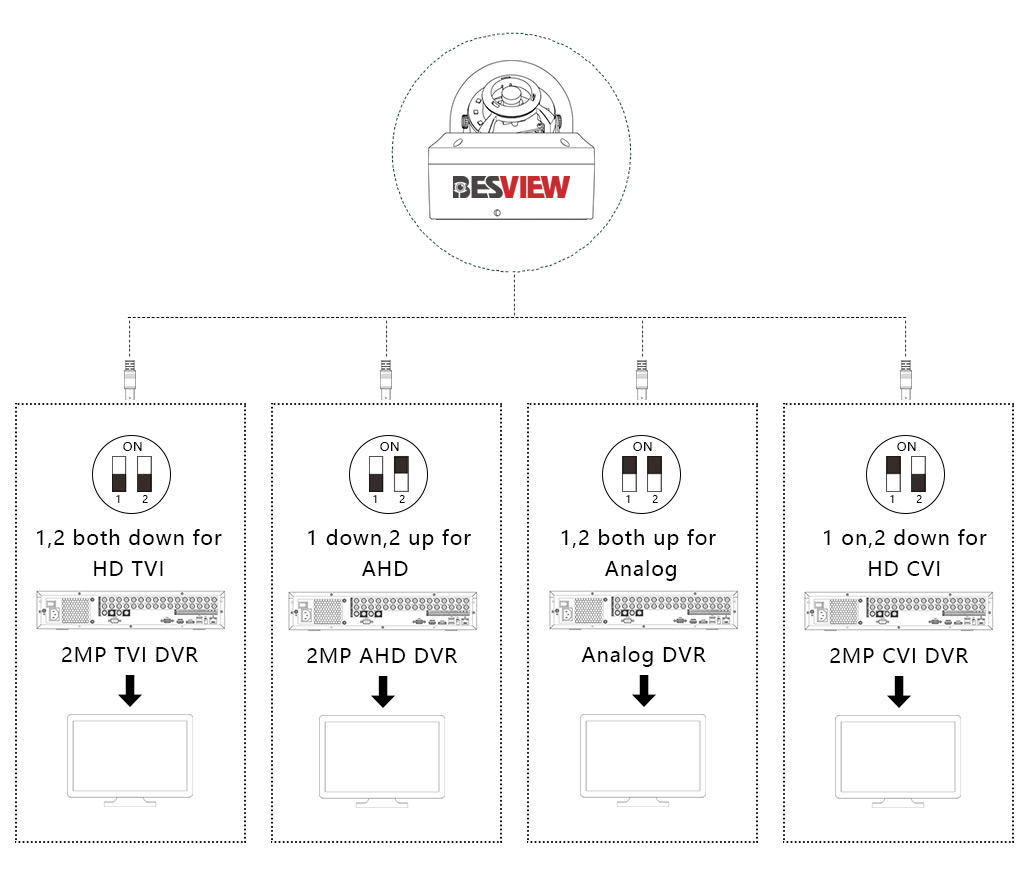

| Video Output: | TVI / CVI / AHD / CVBS 4in1 Switching Signal Output/1.0Vp~p75Ω |
| OSD Functions: | WDR/Sense-up/3D NR Functions etc. |
| S/N Ratio: | More than 50dB (AGC OFF) |
| White Balance: | Auto Tracking White Balance |
| Shutter Speed: | 1/25~1/50,000Sec. |
| Illumination for Infrared Switching: | 3 Lux |
| Infrared Wavelength: | 850nm |
| Mimimum Illumination: | 0Lux(Infrared Lamps Turn on) |
| IR Leds: | 72pcs SMT IR LED IR |
| IR Radiation Distance: | 45m |
| Weather-proof: | IP66 |
| Working Temperature: | -10℃~50℃ |
| Storage Temperature: | -20℃~60℃ |
| Power Requirement: | DC12V, Max Power Comsumption Less Than 12W (When the infrared lamps turn on) |

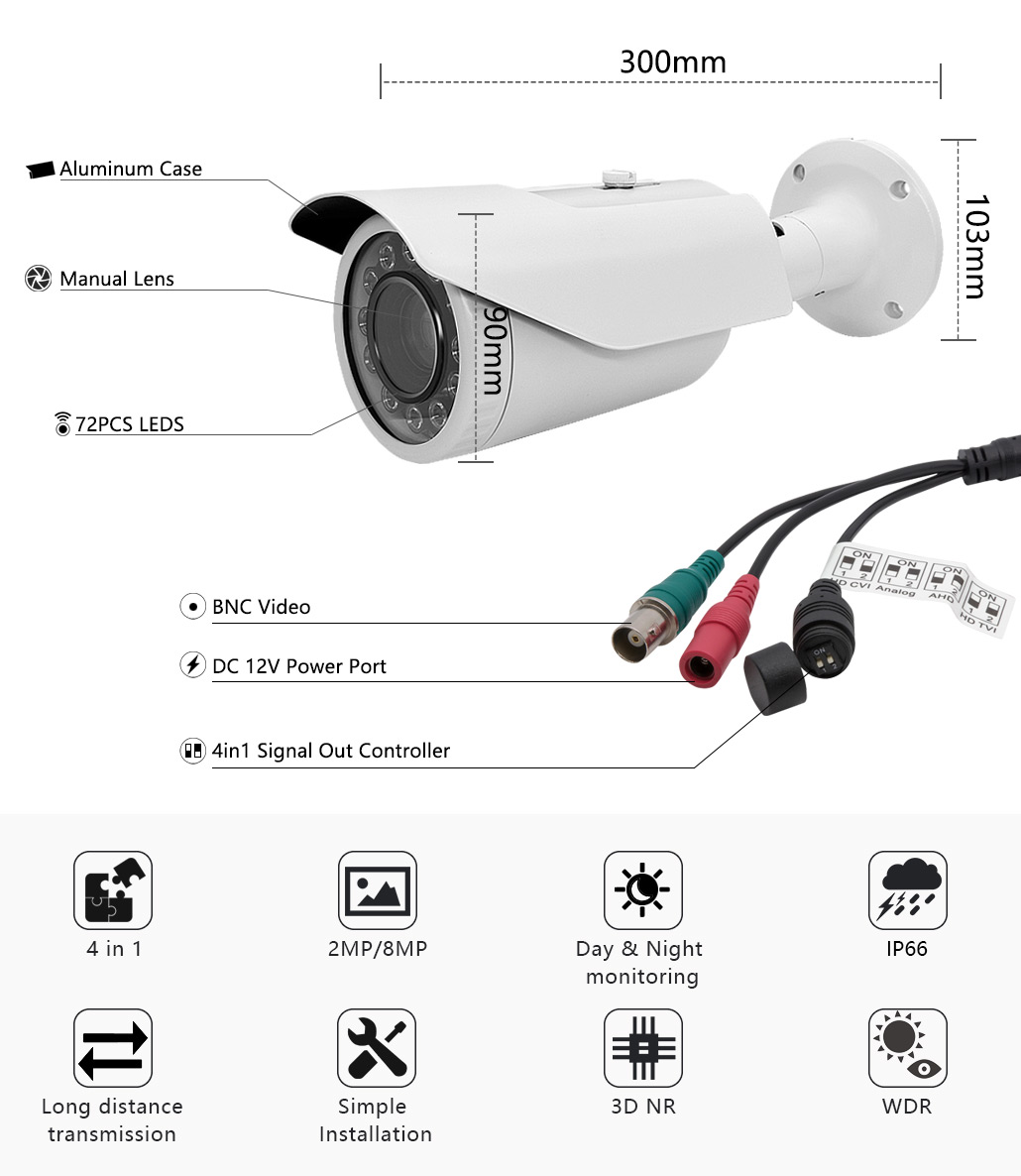

| Dimensions(W×D) | 300mm×103mm |
| Weight: | 1.1KG |
