2MP 12X AF 4in1 IR PTZ Dome CCTV Camera Besview

BC-TP302TRW-87B0
PTZ stands for pan/tilt movement in all directions (left and right/up and down) and lens zoom and zoom control. Usually this word is mentioned, and it can be understood as PTZ control in a popular way. Within the scope of the scene monitored by the camera, when a moving target appears, the user can control the camera to rotate up, down, left and right to track and lock the target. Some models can also provide the human tracking function, that is, people who appear in the target area are locked and automatically tracked until the target disappears. The PTZ tracking module makes up for the shortcomings of the narrow view of the fixed camera monitoring, and is a necessary function for a complete security monitoring system.
Quantity:
Contact Now
Image Sensor:1/2.8'' Sony307 Sensor
Built-in Lens:

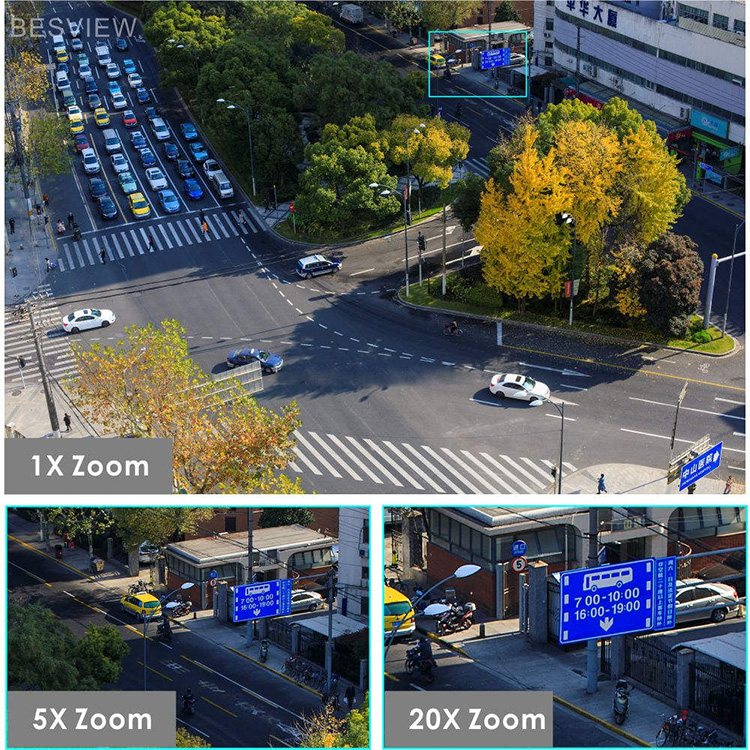

12X5-60mm AF Motor Lens

Signal System:PAL/NTSC
Horizontal Resolution

PAL:1920X1080P 25F/S

NTSC:1920X1080P 30F/S

Sync. System:Internal Sync.

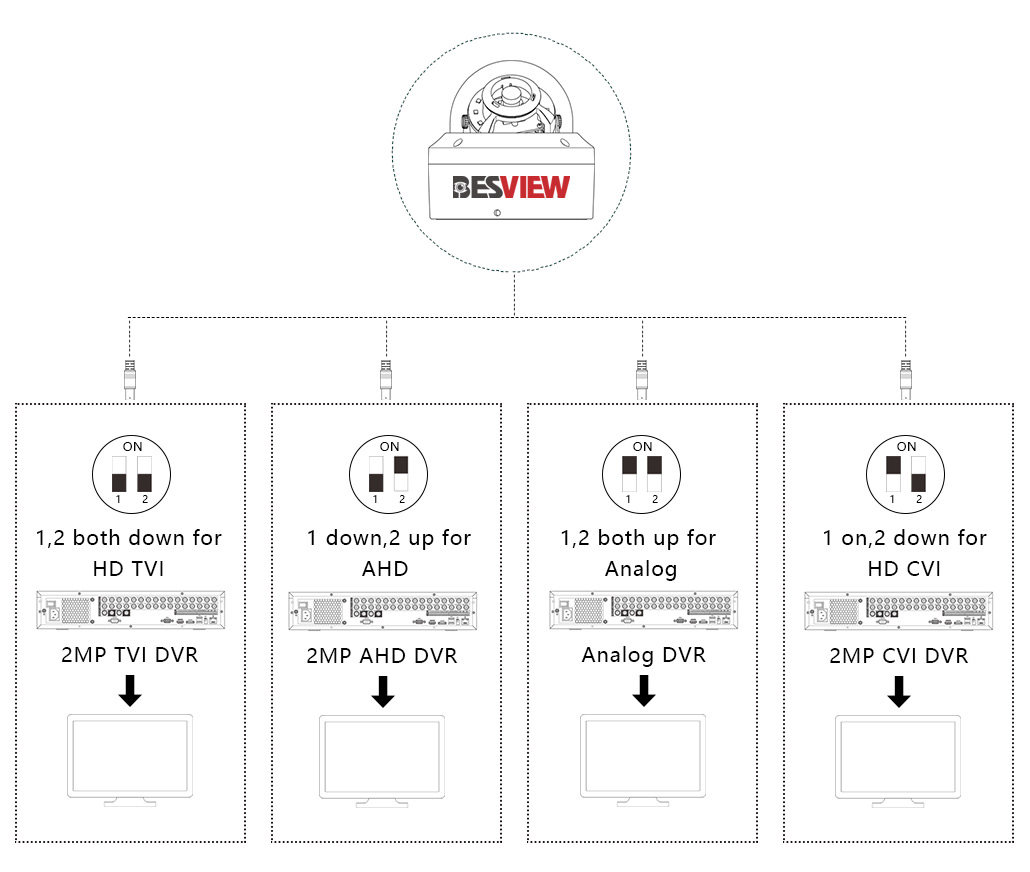

Video Output:TVI / CVI / AHD / CVBS 4in1 Switching Signal Output/1.0Vp~p75Ω
OSD Functions:WDR/Sense-up/3D NR Functions etc.
S/N Ratio:More than 50dB (AGC OFF)
White Balance:Auto Tracking White Balance
Shutter Speed:1/25~1/50,000Sec.
Illumination for Infrared Switching:3 Lux
Infrared Wavelength:850nm
Mimimum Illumination:0Lux(Infrared Lamps Turn on)
IR Leds:

2pcs SMT IR LED IR

IR Radiation Distance:45m

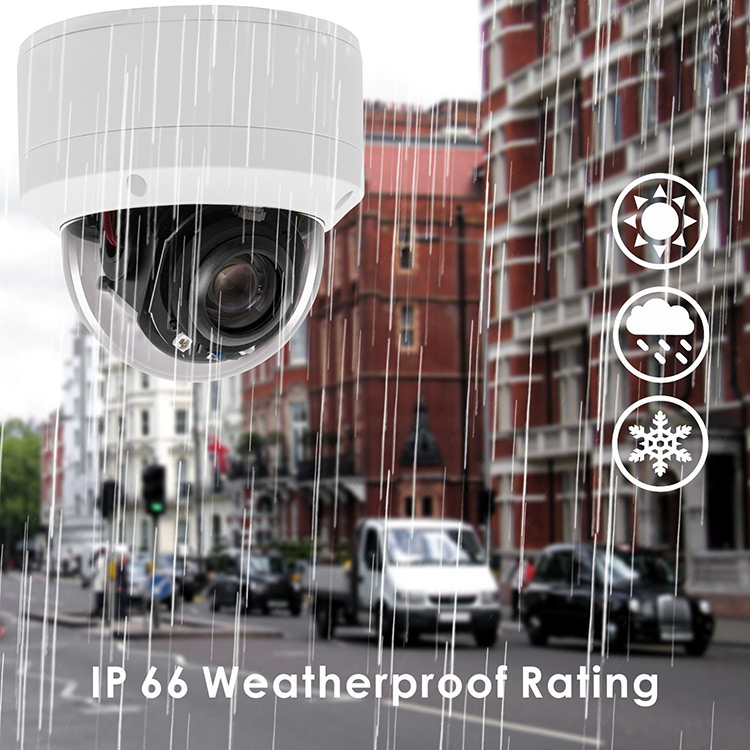

Weather-proof:IP66
Working Temperature:-10℃~50℃
Storage Temperature:-20℃~60℃
Power Requirement:DC12V, Max Power Comsumption Less Than 12W
                (When the infrared lamps turn on)

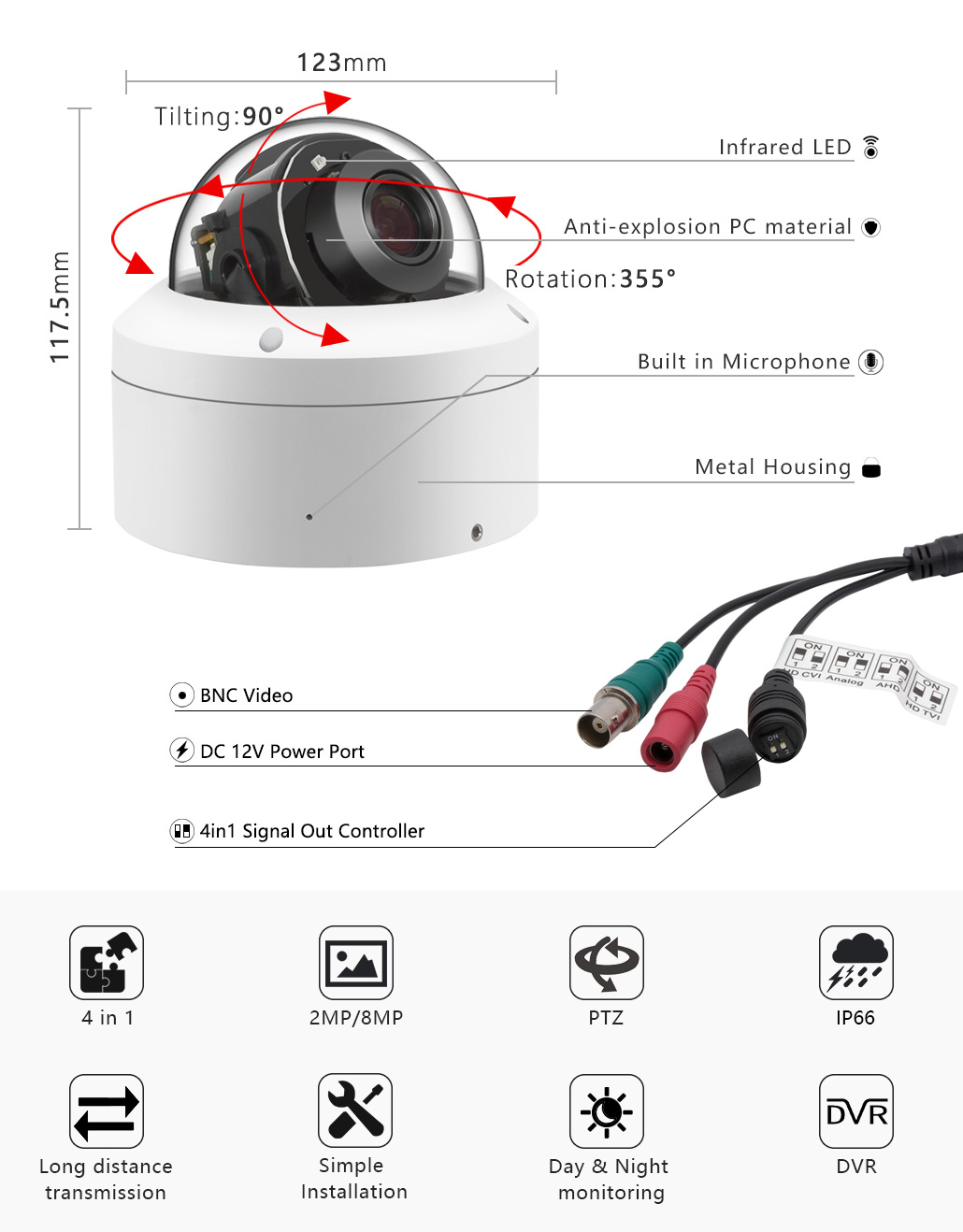

Dimensions(D×H)4.4inch×4.7inch
Weight:0.85kg
