2MP 1080P 4in1 Analog IR CCTV Fisheye Camera Besview
BC-TF1327AWP-87B0
Fisheye panoramic surveillance camera refers to a surveillance camera that uses a special wide-angle lens(commonly known as a fisheye lens) to achieve the largest range of viewing angles. The focal length of this surveillance camera is generally 1.7mm or shorter and the viewing angle can be close to 180°(horizontal direction) coverage, one unit can achieve large-area monitoring coverage without blind spots. The panoramic camera is mainly composed of multiple wide-angle lenses with different orientations at the same time to collect the surrounding images. After the image processing unit is corrected and spliced, a complete 360-degree image is formed the panoramic picture is transmitted to the recording host in real time and finally displayed.
Quantity:
| Image Sensor: | 1/2.8'' Sony307 Sensor |

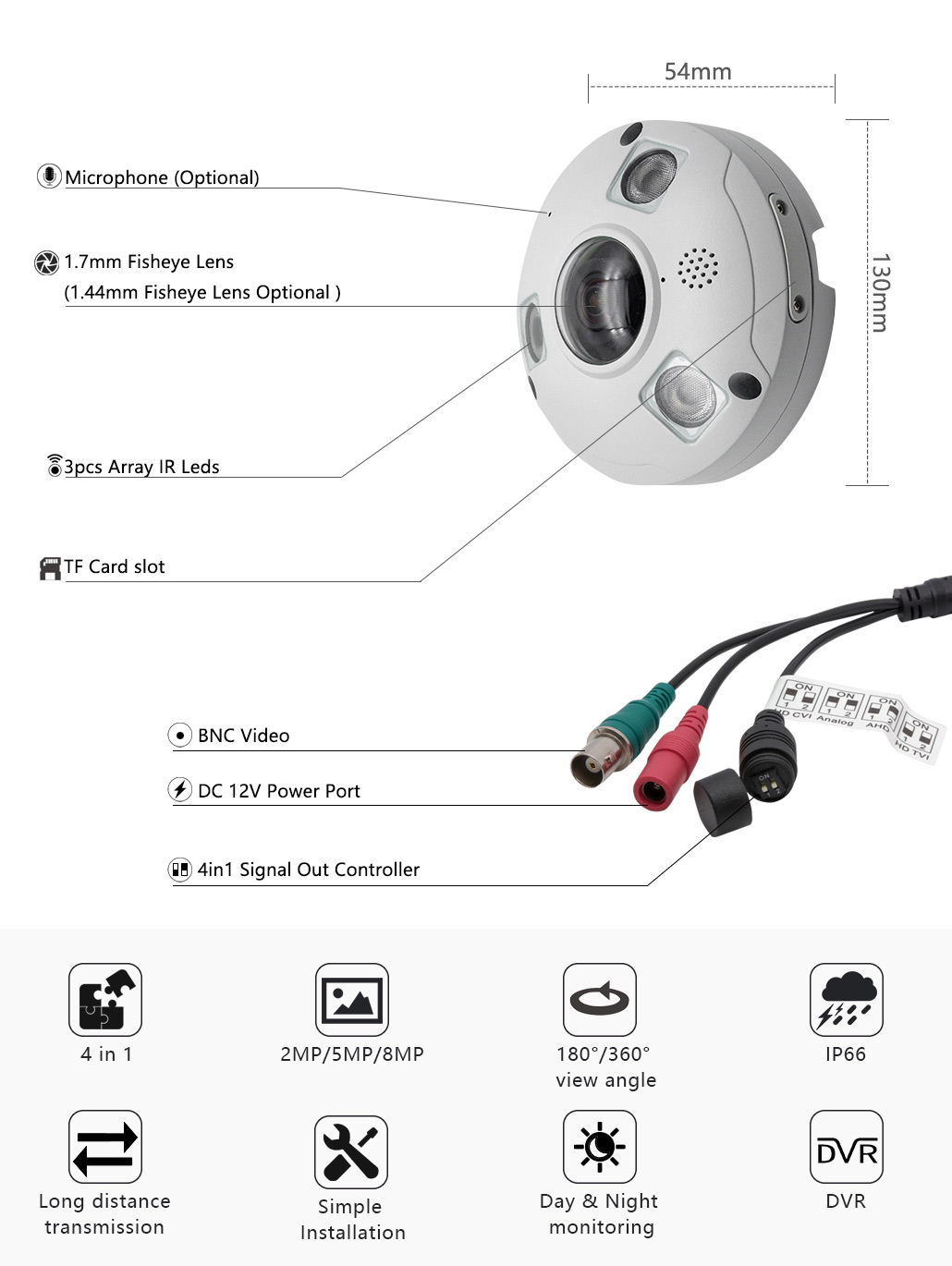

| Built-in Lens: | 1.7mm Fisheye Lens(1.44mm Lens Optional ) |
| Signal System: | PAL/NTSC |
| Horizontal Resolution | PAL:1920X1080P 25F/S NTSC:1920X1080P 30F/S |
| Sync. System: | Internal Sync. |

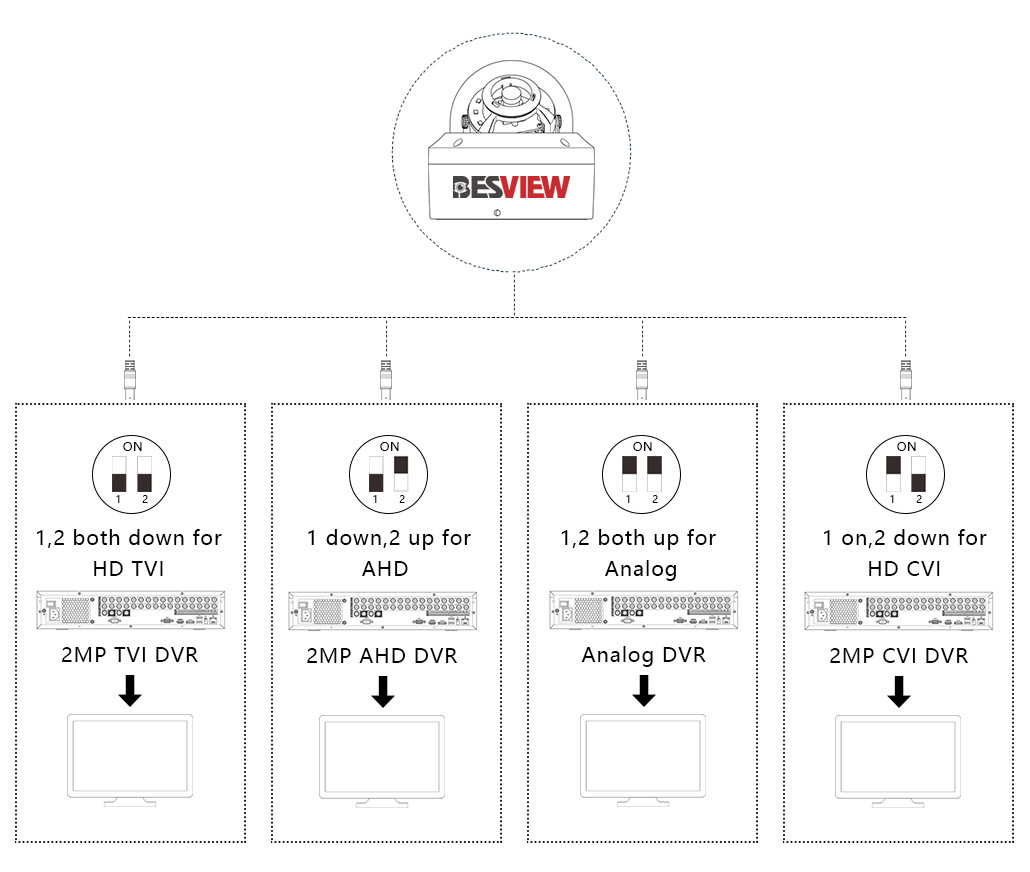

| Video Output: | TVI / CVI / AHD / CVBS 4in1 Switching Signal Output/1.0Vp~p75Ω |
| OSD Functions: | WDR/Sense-up/3D NR Functions etc. |
| S/N Ratio: | More than 50dB (AGC OFF) |
| White Balance: | Auto Tracking White Balance |
| Shutter Speed: | 1/25~1/50,000Sec. |
| Illumination for Infrared Switching: | 3 Lux |
| Infrared Wavelength: | 850nm |
| Mimimum Illumination: | 0Lux(Infrared Lamps Turn on) |
| IR Leds: | 3pcs Array IR Leds |
| IR Radiation Distance: | 15m |
| Weather-proof: | IP66 |
| Working Temperature: | -10℃~50℃ |
| Storage Temperature: | -20℃~60℃ |
| Power Requirement: | DC12V, Max Power Comsumption Less Than 12W (When the infrared lamps turn on) |

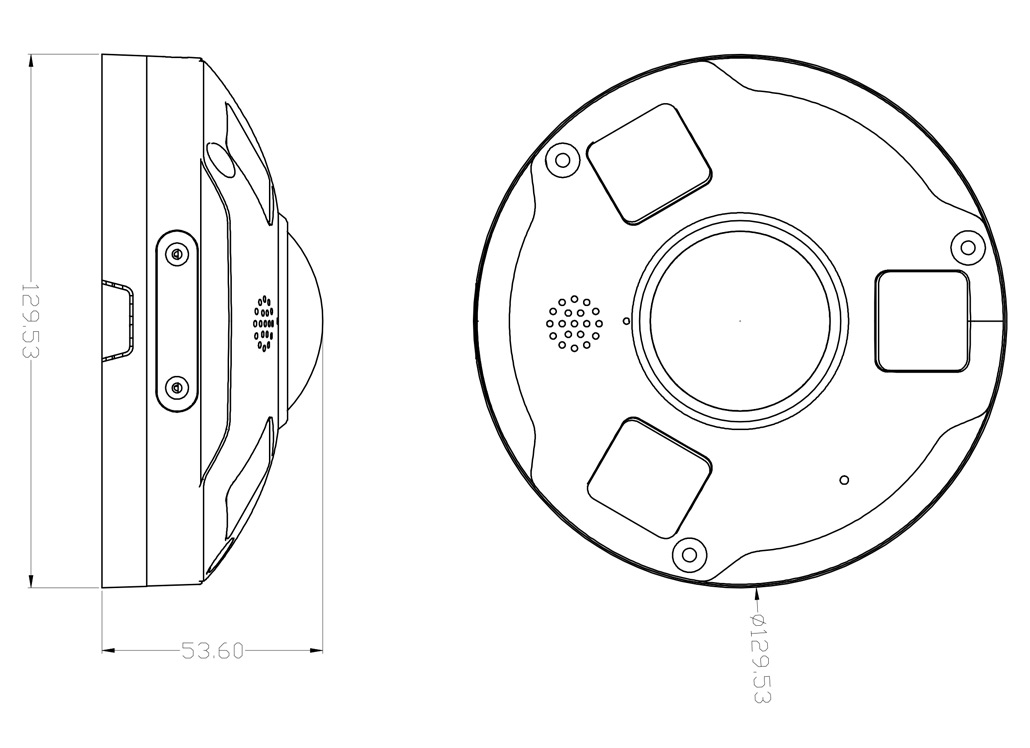

| Dimensions(W×D) | 130mm×54mm |
| Weight: | 0.55KG |
